Introuduction

As of v1.9 Tyk supports a kind of built-in “uptime awareness” of the underlying services and hosts that it is managing traffic for by actively polling user-defined endpoints at set intervals. Tyk uptime awareness is not meant to replace traditional uptime monitoring tools, in fact, it is designed to supplement them by offering a way to bypass unhealthy nodes when they are down as part of Tyk’s role as an API Gateway.

​
Compatibility

Uptime tests are only available for Tyk Self-Managed users. It is not available on Tyk Cloud.

​
How do the uptime tests work?

When uptime tests are added into a Tyk cluster, a single Gateway will elect itself as primary. Gateways remain as primary using a dead man’s switch, by keeping a key active in Redis. Primaries are re-elected or confirmed every few seconds. If one Gateway stops or fails, another can detect the failure and elect itself as the primary. The primary Gateway will then run the uptime tests allocated to the cluster (shard group). The Gateway running the uptime test will have a worker pool defined so that it can execute tests simultaneously every few seconds determined by a Gateway-configurable interval loop. Depending on how many uptime tests are being run, this worker pool should be increased or decreased as needed.

​
Initial configuration

To configure uptime tests, add the relevant section to your tyk.conf:
"uptime_tests": {
  "disable": false, // disable uptime tests on the node completely
  "poller_group":"",
  "config": {
    "enable_uptime_analytics": true,
    "failure_trigger_sample_size": 3,
    "time_wait": 300,
    "checker_pool_size": 50
  }
}
  • disable: When set to false this tells Tyk to run uptime tests, if you do not want any uptime tests to run on a Gateway, set it to true and they will be disabled on those Gateways (this could be useful if you are running uptime tests in a separate group of Tyk instances).
  • poller_group: This field is used to define a different group of uptime tests. All the gateways that have the same poller_group, will be candidates to be elected as the primary Gateway of its group. This could be useful if you are running uptime tests in a segmented or sharded group of Tyk instances.
  • enable_uptime_analytics: Tyk supports the recording of the data that is generated by the uptime tests, these can then be tabulated in the dashboard. Set to true to enable uptime analytics. However, since uptime tests run constantly, they can generate large amounts of data, for some users who do not wish to manage this data, they can disable it by setting this value to false.
  • failure_trigger_sample_size: Here we tell Tyk to trigger a HostDown or HostUp event after the test has failed or passed a set number of times; 3 in this example. Setting the number to higher values can protect against false positives, but can increase lead incident time due to the verification.
  • time_wait: The number of seconds between running tests. In this example, it is set to 300 seconds.
  • checker_pool_size: The worker pool for uptime tests. In this example we have configured Tyk to keep 50 idle workers in memory to send tests to, in other words, with this configuration, you are pretty much guaranteed asynchronous testing for up to 50 tests.

​
Configure with the API Definition

Uptime test checklists sit within API configurations, so in your API Definition add a section for the tests:
uptime_tests: {
  check_list: [
    {
      "url": "http://google.com/"
    },
    {
      "url": "http://posttestserver.com/post.php?dir=uptime-checker",
      "method": "POST",
      "headers": {
        "this": "that",
        "more": "beans"
      },
      "body": "VEhJUyBJUyBBIEJPRFkgT0JKRUNUIFRFWFQNCg0KTW9yZSBzdHVmZiBoZXJl"
    }
  ]
},
Uptime tests are not versioned. In the above example, there are two forms for the Uptime test, a “quick” form, which assumes a GET request:
{
  "url": "http://google.com/"
}
Or a long form, which allows for a full request to be checked or mocked:
{
  "url": "http://posttestserver.com/post.php?dir=tyk-checker-target-test&beep=boop",
  "method": "POST",
  "headers": {
    "this": "that",
    "more": "beans"
  },
  "body": "VEhJUyBJUyBBIEJPRFkgT0JKRUNUIFRFWFQNCg0KTW9yZSBzdHVmZiBoZXJl",
  "timeout": 1000
}
  • body: The body is Base64 encoded.
  • timeout: The timeout in milli seconds.

​
Configure with the Dashboard

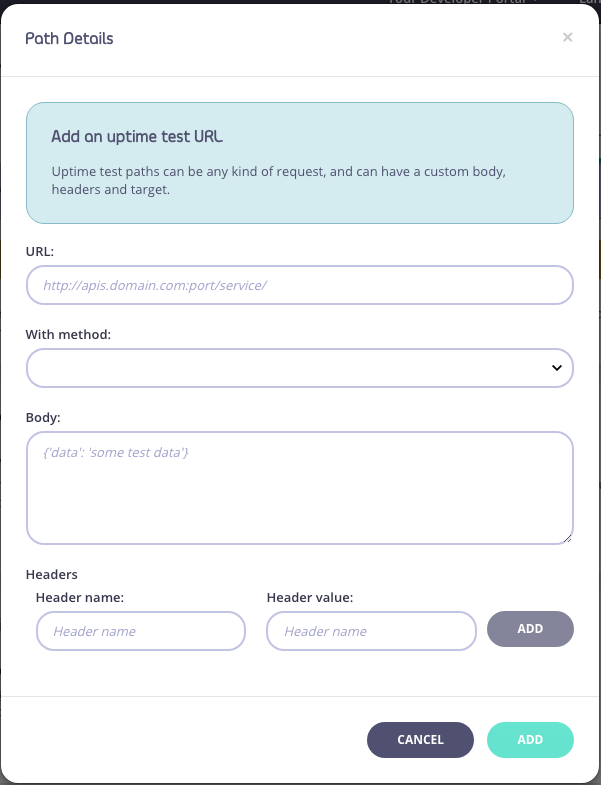

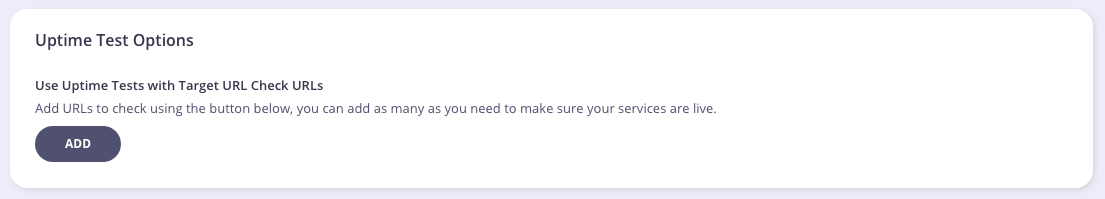

To add an uptime test using the dashboard is very simple. Make sure that you have fulfilled the prerequisite configuration in your Gateway to enable the tester. Step 1: Select the Uptime Tests tab From the API Designer select the Uptime Tests tab: Uptime tests tab location Step 2: Click Add Click Add to add a test: Add button location Step 3: Enter Path Details From the Path Details pop-up, complete the details and click Add to add the test: Test details form and add button location

​
Events

Uptime and downtime events When Tyk detects downtime on a test, it will trigger a system event called HostDown, when that host returns to service, it will trigger HostUp. These events are triggered in the same event system as other Tyk Events, and therefore can have any kind of action performed:
  • A logger action
  • A web hook to a notification URL
  • A custom JS script for complex API interactions
Please see the section on the event system on how to add event handlers to your API Definition. Since tests are on a URL-by-URL basis, you could potentially see multiple HostDown events for a single host where multiple endpoints are being tested.

​
Load balancing and Service Discovery

Downtime detection and service availability If you have configured Tyk to use round-robin load balancing, you can enable an option in the proxy section of your API Definition that will check the hostname of the outbound Tyk request (to your service) against the downtime list to see if the server is active, if the host is marked as “down” Tyk will skip to the next host in its list before making the request: Note, the fully qualified host, including the port, needs to be exactly the same between the uptime test config and the RRLB entry in order for Tyk to link the two together. ie: www.myapi.com:3000
...
"proxy": {
  ...
  "check_host_against_uptime_tests": true,
  ...
}
...
