OAuth 2.0

Use Tyk as an OAuth 2.0 Authorization Server

Tyk can act as an OAuth 2.0 authorization server, performing token generation and management for clients accessing APIs deployed on Tyk. There are many great resources on the Internet that will help you to understand the OAuth 2.0 Authorization Framework, which we won’t attempt to duplicate here. We will provide a basic introduction to the concepts and terminology before we dive into the details of using Tyk as your auth server. Tyk offers some great features when used as the authorization server including:

Fine-Grained Access Control: Manage access using Tyk’s built-in access controls, including versioning and named API IDs
Usage Analytics: Leverage Tyk’s analytics capabilities to monitor OAuth 2.0 usage effectively, grouping data by Client Id
Multi-API Access: Enable access to multiple APIs using a single OAuth token; configure one API for OAuth 2.0 token issuance and the other APIs with the Auth Token method, linking them through a common policy

Tyk as OAuth authorization server supports the following grant types:

Authorization Code Grant: the client is redirected to an identity server where the user must approve access before an access token will be issued
Client Credentials Grant: used for machine-to-machine access, authentication is performed using only the client Id and client secret
Resource Owner Password Grant (a.k.a. Password Grant): only for use where the client is highly trusted, as the client must provide the Resource Owner’s own credentials during authentication
Tyk does not recommend the use of Resource Owner Password Grant. This method is considered unsafe and is prohibited in the OAuth 2.0 Security Best Practice but is supported for use with legacy clients.

To make use of this, you’ll need to:

understand how to integrate your client (and, for Authorization Code grant, your identity server) according to the OAuth grant type
register a client app for each client that needs to access the API
configure your API proxy to use the Tyk OAuth 2.0 authentication method

OAuth 2.0 Core Concepts

OAuth 2.0 (Open Authorization 2.0) is a widely adopted authorization protocol that allows third-party applications to access user resources securely, without needing to expose sensitive credentials such as user passwords. It is an industry-standard framework that enables a delegated approach to securing access to APIs and services. The IETF OAuth 2.0 specification outlines the standard for OAuth 2.0.

“The OAuth 2.0 authorization framework enables a third-party application to obtain limited access to an HTTP service, either on behalf of a resource owner by orchestrating an approval interaction between the resource owner and the HTTP service, or by allowing the third-party application to obtain access on its own behalf.” — RFC 6749

OAuth 2.0 provides a mechanism for client applications to request limited access to resources hosted by a resource server, on behalf of a resource owner (typically a user), without exposing the resource owner’s credentials. This allows secure sharing of data between applications—for example, allowing a calendar app to access a user’s contacts to automatically find available time slots for meetings. OAuth 2.0 has many variations and flows suited for different use cases, this section will provide an overview of the core principles, terminology, and key concepts, specifically focusing on how you can implement OAuth 2.0 with Tyk.

Terminology

Protected Resource: The service or data that is protected by OAuth (e.g. an API endpoint) and requires authorization to access.
Resource Owner: The user or system that owns the Protected Resource and has the ability to grant or deny access to it.
Client: The application or system that seeks access to the Protected Resource. It acts on behalf of the Resource Owner.
Access Token: A short-lived piece of data that grants the Client access to the Protected Resource. The token proves that the Client has been authorized by the Resource Owner.
Authorization Server: The server that issues Access Tokens to the Client after validating the Client’s identity and obtaining consent from the Resource Owner.
Client Application: The application that requests authorization from the Authorization Server. This application must first be registered with the Authorization Server to obtain credentials (Client Id and Client Secret).
Resource Server: The server that hosts the Protected Resource. It receives access requests from Clients, which must include a valid Access Token.
Identity Server: A server that authenticates the Resource Owner, offering the facility to log in and authorize Client access to Protected Resources.
Scope: Defines the specific permissions or access levels being requested by the Client (e.g. read, write, delete).
Grant Type: The method by which the Client obtains an Access Token, based on the OAuth flow being used (e.g. Authorization Code, Client Credentials, Resource Owner Password Credentials).

Access Tokens

In OAuth 2.0, access tokens are used to represent the authorization granted to the client by the resource owner. These tokens are typically small, opaque data objects that are passed along with each API request to authenticate the client. While the OAuth 2.0 specification does not mandate a specific format, JSON Web Tokens (JWTs) are commonly used as they can encode metadata, such as the user’s identity, permissions, and token expiry time. Tokens usually come with an expiration date to limit the time they are valid and minimize the risk of abuse. Access tokens can often be refreshed via a refresh token if they expire, allowing for long-lived access without requiring the user (resource owner) to reauthorize the application (client).

Client Application

For a client to request an Access Token from the Authorization Server, it must first authenticate itself. This ensures that the Resource Owner can confidently delegate access to the requested resources. To do this, the client is registered with the Authorization Server as a Client Application, which requires the following elements:

Client Id: A unique, public identifier for the client application (e.g., a username or application name).
Client Secret: A confidential string (like a password) that is shared between the client and the Authorization Server. The client secret is never exposed to the Resource Owner.
Redirect URI: The URL to which the client will be redirected after the authorization process is complete (either granted or denied).

The client sends the client Id and client secret during the authorization request to prove its identity and authenticate its request for an access token. Depending on the OAuth grant type being used (e.g. Authorization Code Flow, Client Credentials Flow), the Authorization Server will authenticate the client and, if successful, issue an Access Token.

Manage Client Access Policies

The access tokens issued to clients by Tyk Authorization Server are the same as other session objects and can be associated with access security policies at the point of creation. These allow the application of quotas, rate limits and access rights in the normal manner. Security policies can be assigned to client apps and will be applied to all access tokens issued for that client app.

Client App Registration

For all grant types, the first common step is the registration of the client with Tyk Dashboard by creation of a Client App. This will allocate a client Id and client secret that must be provided in future authentication requests by the client.

Using the Tyk Dashboard UI

Client apps are registered per-API, so the first step is to configure Tyk OAuth 2.0 as the security method to be used for the API. With this done, you can navigate to the OAuth Client management screen for the API from the Actions menu on the Created APIs screen:

Accessing the list of OAuth Clients for an API

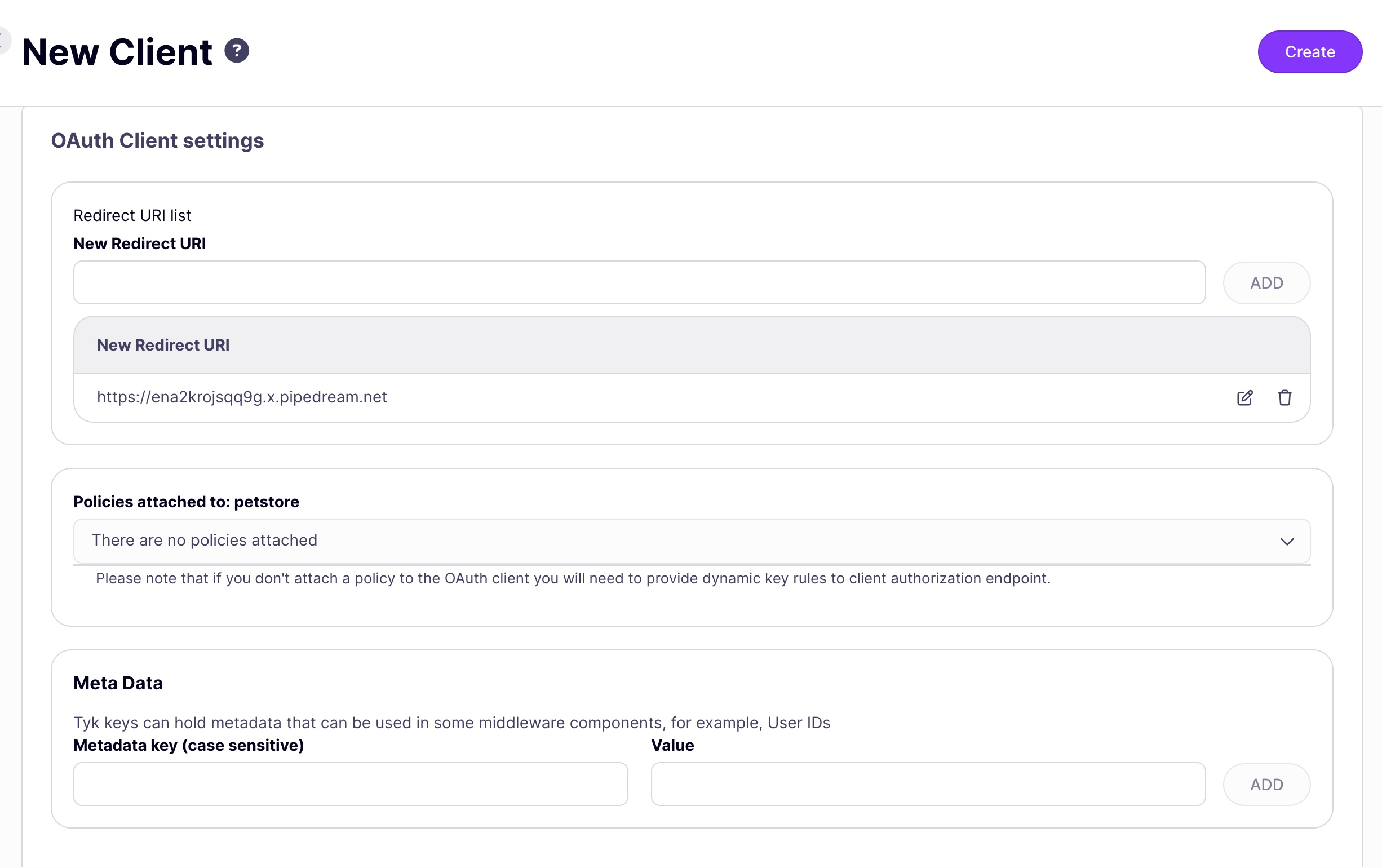

You will now be prompted to register a client app that will be granted access to the API configuring:

redirect URI
[optional] security policies to be applied to access tokens generated for the client
[optional] metadata to be added to the access tokens

Note: when using Authorization Code grant the redirect uri configured for the client app must be the same as that configured in the API definition. Select the Create button to register the client app.

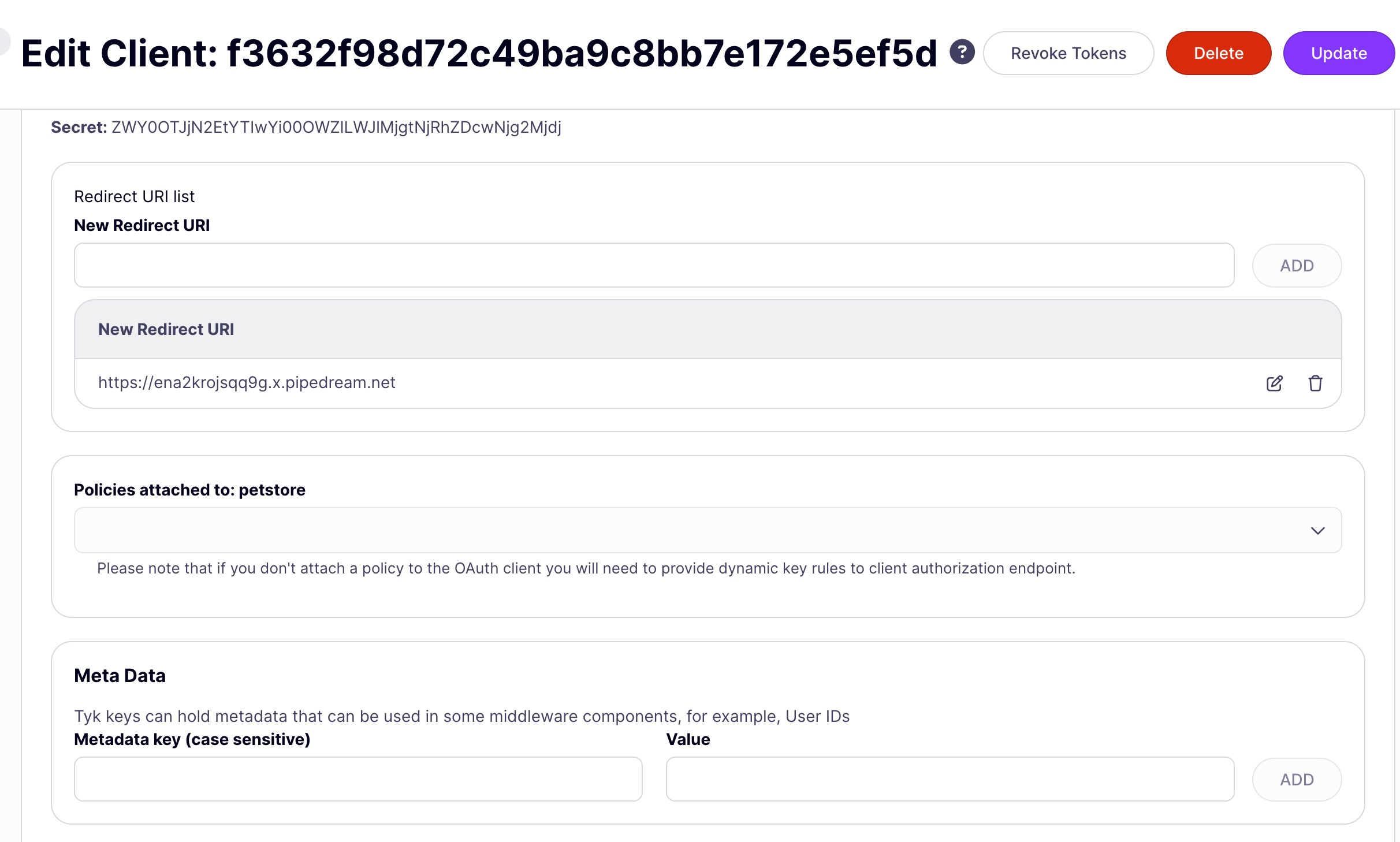

In the OAuth Client management screen, you will see a list of client apps registered with the API (as identified by their client Id). By clicking on the list item, or from the Actions menu’s Edit option you will be taken to the Edit Client app screen, where you can see the client secret and make any modifications you need. There is also the option to revoke tokens that have been issued for this client app.

Using the Tyk Dashboard API

The Tyk Dashboard API contains several endpoints that are provided to manage client apps. Client apps are registered per-API, so each takes as an input the API Id for the API:

Action	Endpoint	Reference
Register a new client app	`POST /api/apis/oauth/{{api-id}}`	link
Get a list of registered client apps	`GET /api/apis/oauth/{{api-id}}`	link
Get the details of a client app	`GET /api/apis/oauth/{{api-id}}/{{client_id}}`	link
Delete a client app	`DELETE /api/apis/oauth/{{api-id}}/{{client_id}}`	link

Using the Authorization Code Grant

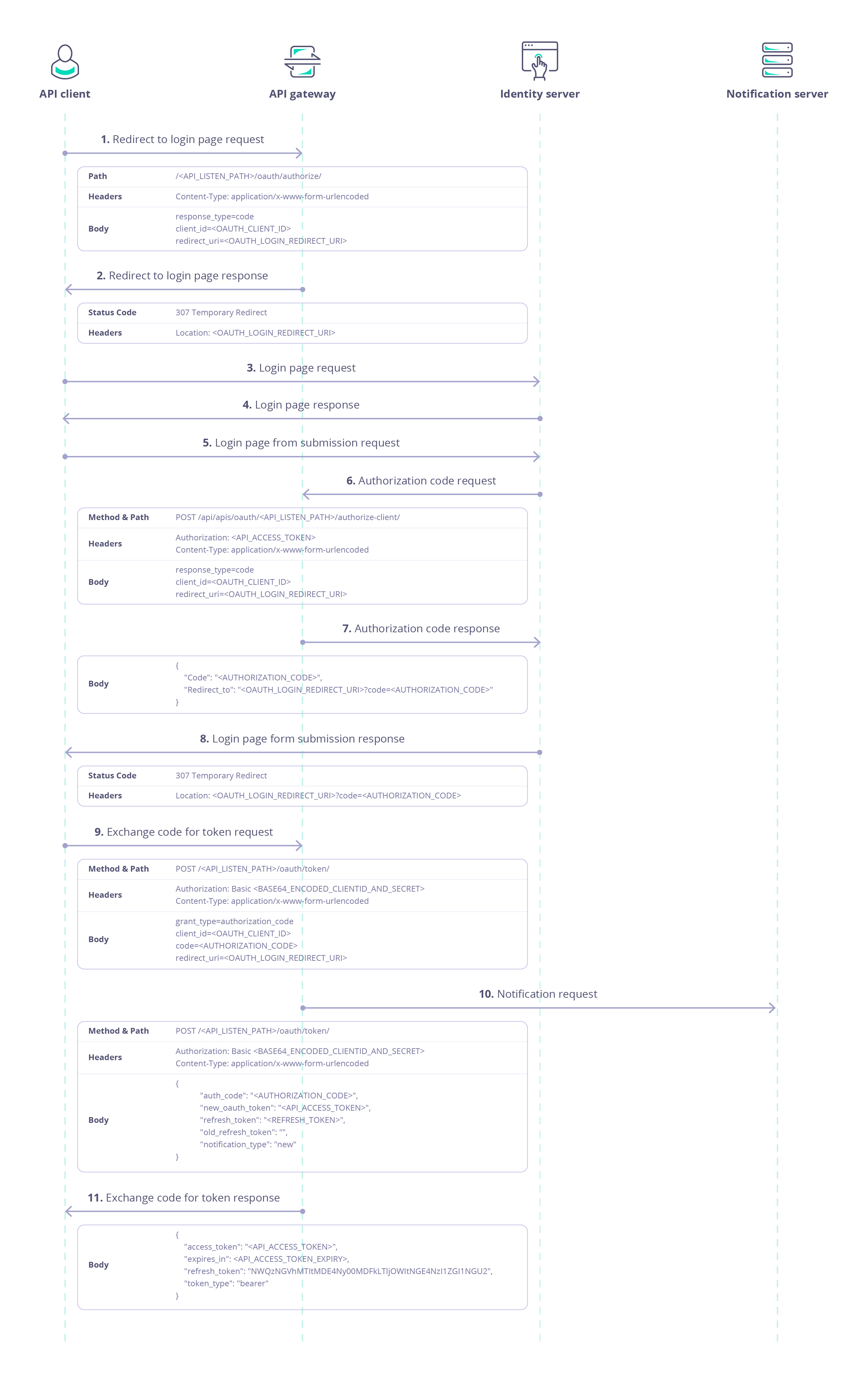

When using Tyk as the Authorization Server with the Authorization Code grant, the following steps are followed after registering the Client App:

Explanatory notes: (1) client makes a request to the authorization endpoint on the Auth Server (2) The Auth Server notes the request parameters and returns HTTP 307 Temporary Redirect, redirecting the user to an Identity Server (5) the user must log in on the Identity Server and authorize the client (6) when the user successfully authenticates and authorizes the request, the Identity Server must request an Authorization Code from the Auth Server (8) The Identity Server provides the Authorization Code to the client (9) The client exchanges the Authorization Code for an Access Token from the Auth Server (10) The client uses the Access Token to authenticate with the protected API using the Auth Token method

Integration with Identity Server

Whilst Tyk can provide the authorization server functionality, issuing and managing access and authorization tokens, the identity server functions (authenticating users (resource owners) and allowing them to authorize client access) must be performed by a separate Identity Provider (IdP). The identity server will need access to the Tyk Dashboard API to obtain an Authorization Code.

Authorization Request

The authorization endpoint for an API proxy on Tyk is a special endpoint automatically added to the proxy definition, accessible from POST /<listen-path>/oauth/authorize The following parameters are required in a request to this endpoint:

Parameter	Value
`response_type`	`code`
`client_id`	client Id
`redirect_uri`	Redirect URI (URL encoded)

For example:

curl -X POST https://tyk.cloud.tyk.io/my-api/oauth/authorize/ \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "response_type=code&client_id=my-client-id&redirect_uri=http%3A%2F%2Fidentityserver.com%2Fclient-redirect-uri"

This command, issued by the client is the first step of requesting access to the /my-api proxy deployed on a Tyk Gateway at https://tyk.cloud.tyk.io. If the client Id (my-client-id) is valid, the response will be HTTP 307 Temporary Redirect with the redirect URI (http://identityserver.com/client-redirect-uri) in the location header.

Authorization Code Request

The Identity Server requests an Authorization Code from the Authentication Server. Tyk’s authorization code endpoint is hosted in the Tyk Dashboard API, accessible from POST /api/apis/{api_id}/authorize-client. The same redirect_uri as provided in the original request must be provided alongside the client_id as a security feature to verify the client identity. This endpoint is protected using the Dashboard API secret assigned to the Identity Server, which must be provided in the Authorization header. The following parameters are required in a POST request to this endpoint:

Parameter	Value
`response_type`	`code`
`client_id`	client Id
`redirect_uri`	Redirect URI (URL encoded)

For example:

curl -X POST \
  https://admin.cloud.tyk.io/api/apis/oauth/{my-api-id}/authorize-client/ \
  -H "Authorization: <dashboard-secret>" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "response_type=code&client_id=my-client-id&redirect_uri=http%3A%2F%2Fidentityserver.com%2Fclient-redirect-uri"

This command, issued by the identity server requests an authorization code from the Tyk Dashboard at https://admin.cloud.tyk.io to access the proxy with API Id my-api-id. If the client Id (my-client-id) is valid and redirect_uri matches the one provided in the initial request, an authorization code will be provided in the response payload, for example:

{
  "code": "EaG1MK7LS8GbbwCAUwDo6Q",
  "redirect_to": "http://example.com/client-redirect-uri?code=EaG1MK7LS8GbbwCAUwDo6Q"
}

Exchange the Authorization Code for an Access Token

Once the client has the authorization code, it can exchange this for an access token, which is used to access the protected API. The token exchange endpoint for an API proxy on Tyk is a special endpoint automatically added to the proxy definition, accessible from POST /<listen-path>/oauth/token. This endpoint is protected using Basic Authentication where the username is the client Id and the password is the client secret. The following parameters are required in the request:

Parameter	Value
`grant_type`	`authorization_code`
`client_id`	client Id
`code`	Authorization Code
`redirect_uri`	Redirect URI (URL encoded)

For example:

curl -X POST \
  https://tyk.cloud.tyk.io/my-api/oauth/token/ \
  -H "Authorization: Basic bXktY2xpZW50LWlkOm15LWNsaWVudC1zZWNyZXQ=" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=authorization_code&client_id=my-client-id&code=EaG1MK7LS8GbbwCAUwDo6Q&redirect_uri=http%3A%2F%2Fidentityserver.com%2Fclient-redirect-uri"

This command, issued by the client is the final step to obtain an access token for the /my-api proxy deployed on a Tyk Gateway at https://tyk.cloud.tyk.io. The basic auth key is the base64 encoded representation of my-client-id:my-client-secret The client_id and redirect_uri match those provided in the initial authorization request. The code is the authorization code provided to the identity server in the authorization code request. The response payload contains:

access_token: the token which can be used by the client to access the protected API
expires_in: the expiration date/time of the access token
token_type: set to bearer indicating that the access token should be provided in an Auth Token request to the protected API
refresh_token: [optional] a special token that can be used in the Refresh Token flow

For example:

{
  "access_token": "580defdbe1d21e0001c67e5c2a0a6c98ba8b4a059dc5825388501573",
  "expires_in": 3600,
  "refresh_token": "NWQzNGVhMTItMDE4Ny00MDFkLTljOWItNGE4NzI1ZGI1NGU2",
  "token_type": "bearer"
}

Using the Client Credentials Grant

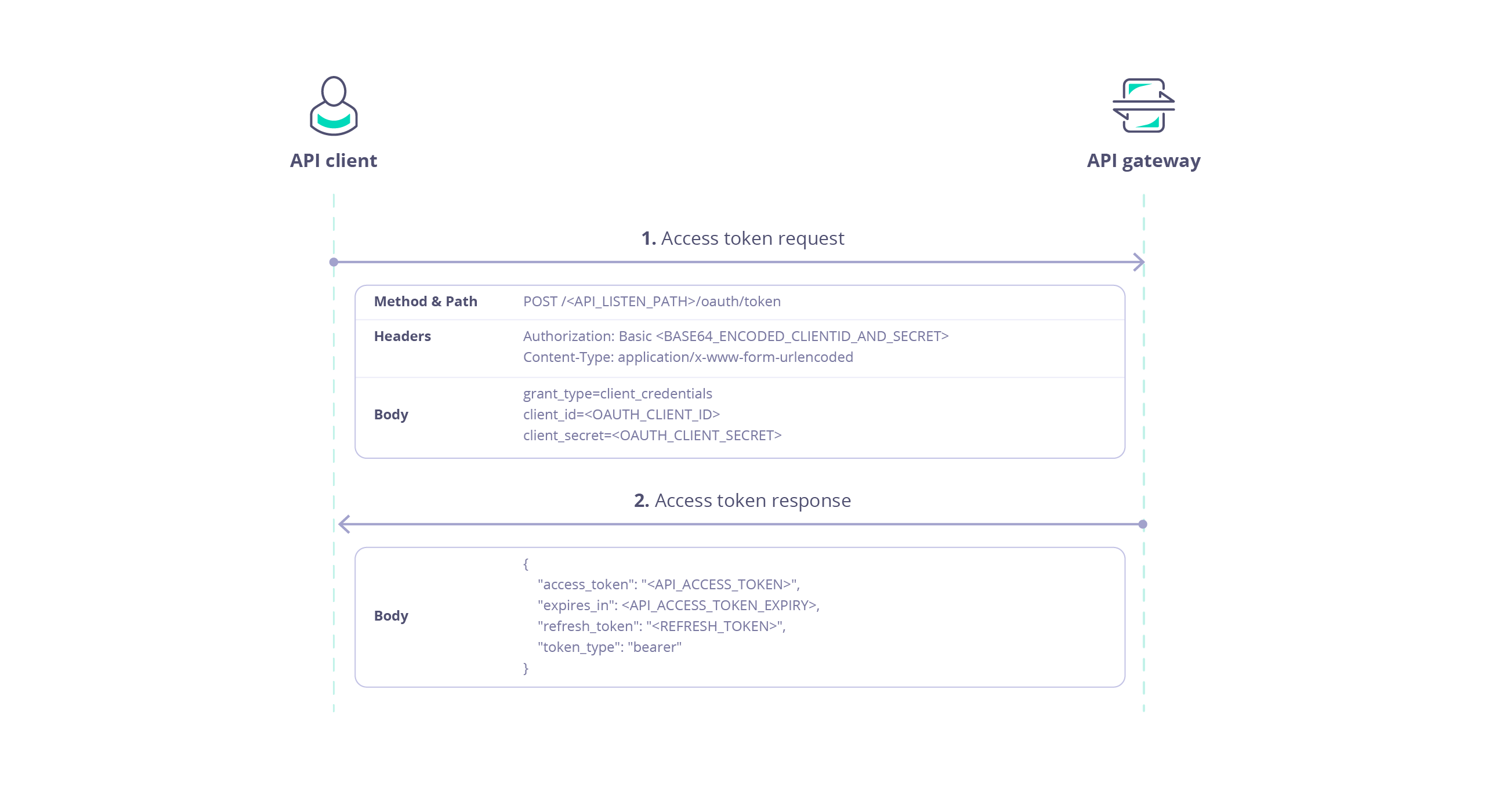

When using Tyk as the authorization server with the Client Credentials grant, the client accesses resources on behalf of itself rather than on behalf of a user, so there is no user login/authorization step (as seen with Authorization Code grant). This flow is ideal for server-to-server interactions. After registering the Client App, the client simply requests an access token directly from the authorization server:

Access Token Request

The client obtains an access token for an API proxy on Tyk from a special endpoint automatically added to the proxy definition, accessible from POST /<listen-path>/oauth/token. This endpoint is protected using Basic Authentication where the username is the client Id and the password is the client secret. The following parameters are required in the request:

Parameter	Value
`grant_type`	`client_credentials`
`client_id`	client Id
`secret`	client secret

For example:

curl -X POST \
  https://tyk.cloud.tyk.io/my-api/oauth/token/ \
  -H "Authorization: Basic bXktY2xpZW50LWlkOm15LWNsaWVudC1zZWNyZXQ=" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=client_credentials&client_id=my-client-id&client_secret=my-client-secret"

This command, issued by the client will obtain an access token for the /my-api proxy deployed on a Tyk Gateway at https://tyk.cloud.tyk.io. The basic auth key is the base64 encoded representation of my-client-id:my-client-secret The client_id and client_secret match those allocated by Tyk (the auth server) for the client app. The response payload contains:

access_token: the token which can be used by the client to access the protected API
expires_in: the expiration date/time of the access token
token_type: set to bearer indicating that the access token should be provided in an Auth Token request to the protected API

For example:

{
  "access_token": "580defdbe1d21e0001c67e5c2a0a6c98ba8b4a059dc5825388501573",
  "expires_in": 3600,
  "token_type": "bearer"
}

Note that Client Credentials grant does not produce a refresh token.

Using the Resource Owner Password Grant

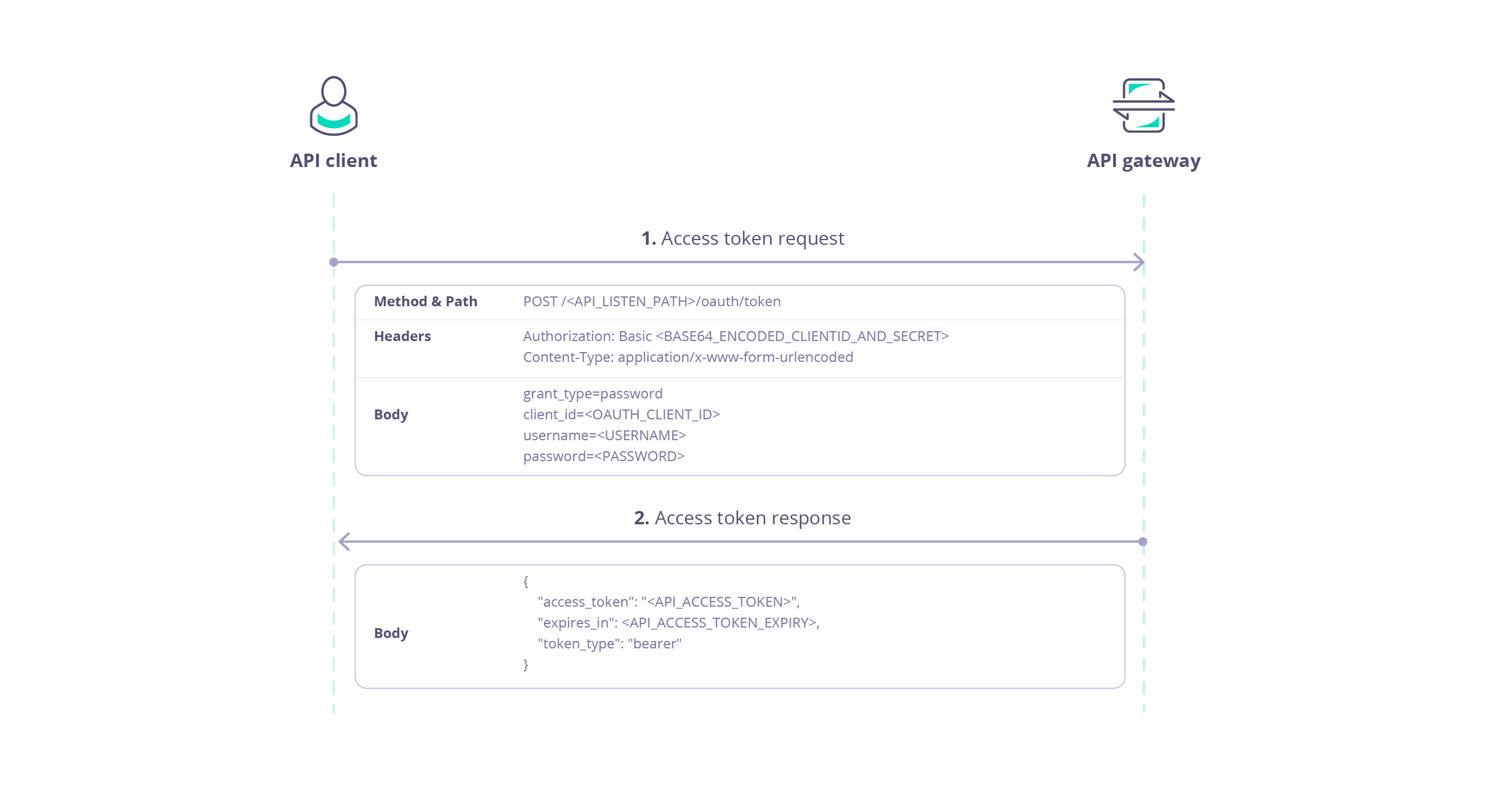

When using Tyk as the authorization server with the Resource Owner Password grant, the client provides the user’s credentials when requesting an access token. There is no user login/authorization step (as seen with Authorization Code grant). This flow is not recommended and is provided only for integration with legacy clients. After registering the Client App, the client simply requests an access token directly from the authorization server:

Access Token Request

Parameter	Value
`grant_type`	`password`
`client_id`	client Id
`username`	resource owner’s username (`resource-owner-username`)
`password`	resource owner’s password (`resource-owner-password`)

For example:

curl -X POST \
  https://tyk.cloud.tyk.io/my-api/oauth/token/ \
  -H "Authorization: Basic bXktY2xpZW50LWlkOm15LWNsaWVudC1zZWNyZXQ=" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=password&client_id=my-client-id&username=resource-owner-username&password=resource-owner-password"

access_token: the token which can be used by the client to access the protected API
expires_in: the expiration date/time of the access token
token_type: set to bearer indicating that the access token should be provided in an Auth Token request to the protected API
refresh_token: [optional] a special token that can be used in the Refresh Token flow

For example:

{
  "access_token": "580defdbe1d21e0001c67e5c2a0a6c98ba8b4a059dc5825388501573",
  "expires_in": 3600,
  "refresh_token": "YjdhOWFmZTAtNmExZi00ZTVlLWIwZTUtOGFhNmIwMWI3MzJj",
  "token_type": "bearer"
}

Configuring your API Proxy

As explained previously, the AuthN/Z methods to be used to secure an API proxy are configured in the API definition. This permits granular application of the most appropriate method to each API deployed on Tyk Gateway. When using Tyk as the Authorization Server, the API configuration can be applied using the Tyk Dashboard’s API Designer UI, or by direct modification of the API definition. We will provide examples here when using Tyk OAS APIs. If you are using Tyk Classic APIs, the process is very similar, though there are differences in the location and specific labelling of options.

Using the Tyk API Designer

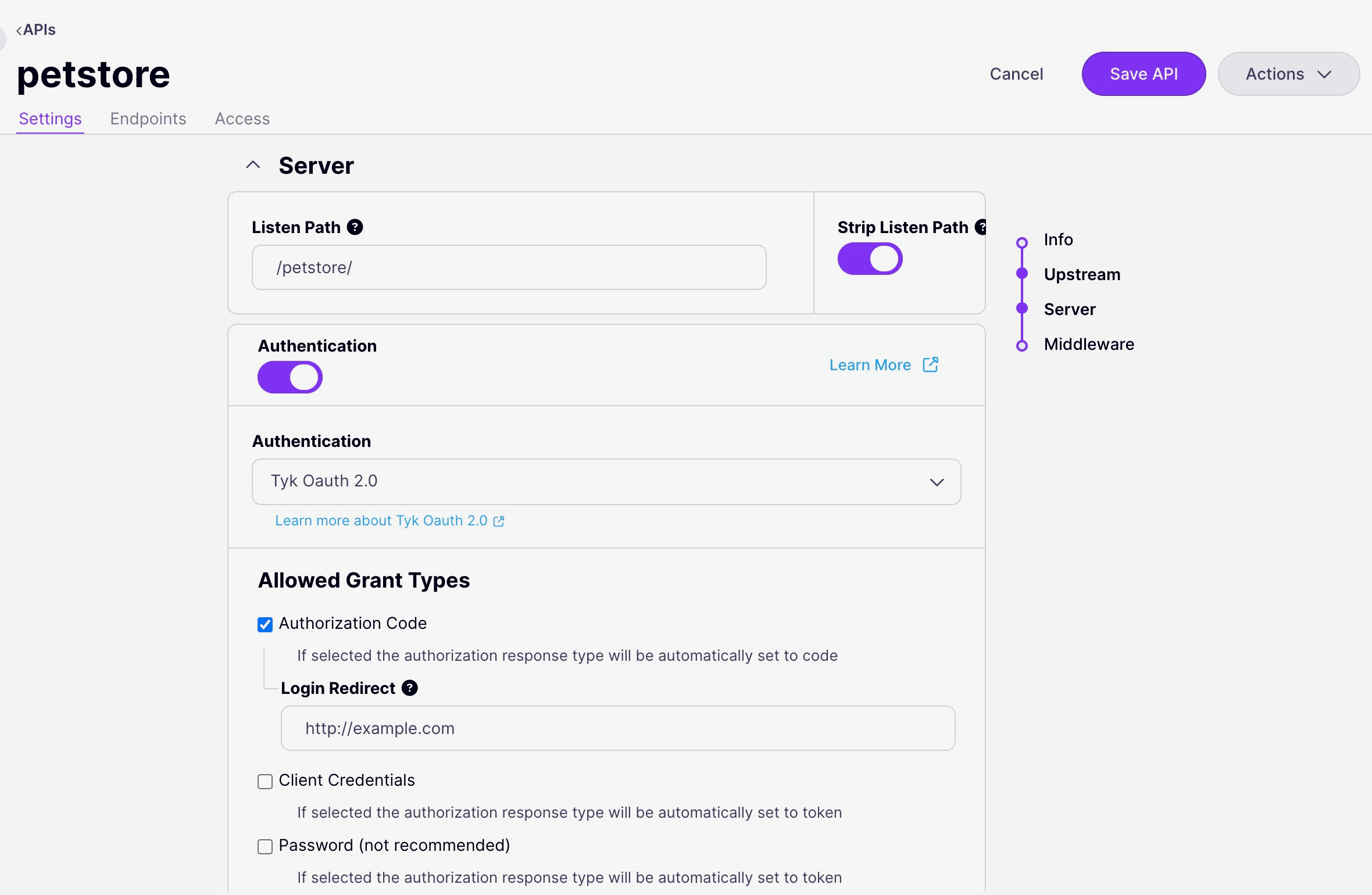

Client Authentication is configured on the Settings screen within the API Designer, within the Server section. Ensure that you are in Edit mode, click on the button to Enable Authentication and then select Tyk OAuth 2.0 from the drop down options:

Select the OAuth Grant Type that you wish to use for the API, if appropriate you can also select the Refresh Token grant so that the Auth Server (Tyk) will generate both access and refresh tokens.
Provide the requested configuration options depending on the selected Grant Type. Note that for Authorization Code Grant, Redirect URL should be the login page for your Identity Server and must be matched by the redirect_uri provided in the client app (and in the client’s authentication request). The Notifications configuration can be provided for Authorization Code and Password grants.
Select Save API to apply the new settings.

Using the API Definition

The OpenAPI Specification indicates the use of OAuth 2.0 authentication in the components.securitySchemes object using the type: oauth2. Tyk supports the authorizationCode, clientCredentials and password flows and implements Relative Endpoint URLs for the authorizationUrl, tokenUrl and refreshUrl.

components:
  securitySchemes:
    myAuthScheme:
      type: oauth2
      flows:
        authorizationCode:
          authorizationUrl: ...
          tokenUrl: ...
          scopes: ...

security:
  - myAuthScheme: []

With this configuration provided by the OpenAPI description, in the Tyk Vendor Extension we need to enable authentication, to select this security scheme and to indicate where Tyk should look for the OAuth token. Usually the token will be provided in the Authorization header, but Tyk is configurable, via the Tyk Vendor Extension, to support custom header keys and credential passing via query parameter or cooke.

x-tyk-api-gateway:
  server:
    authentication:
      enabled: true
      securitySchemes:
        myAuthScheme:
          enabled: true
          header:
            enabled: true
            name: Authorization

Note that URL query parameter keys and cookie names are case sensitive, whereas header names are case insensitive. You can optionally strip the user credentials from the request prior to proxying to the upstream using the authentication.stripAuthorizationData field (Tyk Classic: strip_auth_data). With the OAuth method selected, you’ll need to configure Tyk to handle the specific configuration of OAuth grants that you will support. All of the OAuth specific configuration is performed within the authentication.securitySchemes.oauth object in the Tyk Vendor Extension. For example:

{
  "info": {
    "title": "My OAuth API",
    "version": "1.0.0"
  },
  "openapi": "3.0.3",
  "security": [
    {
      "oauth": []
    }
  ],
  "paths": {},
  "components": {
    "securitySchemes": {
      "oauth": {
        "type": "oauth2",
        "flows": {
          "authorizationCode": {
            "authorizationUrl": "/oauth/authorize",
            "scopes": {},
            "tokenUrl": "/oauth/token"
          }
        }
      }
    }
  },
  "x-tyk-api-gateway": {
    "info": {
      "name": "My OAuth API",
      "state": {
        "active": true,
      }
    },
    "server": {
      "authentication": {
        "enabled": true,
        "securitySchemes": {
          "oauth": {
            "enabled": true,
            "allowedAuthorizeTypes": [
              "code"
            ],
            "authLoginRedirect": "http://<identity-server>/client-redirect-uri",
            "header": {
              "enabled": true,
              "name": "Authorization"
            },
            "notifications": {
              "onKeyChangeUrl": "http://notifyme.com",
              "sharedSecret": "oauth-shared-secret"
            },
            "refreshToken": true
          }
        }
      },
      "listenPath": {
        "strip": true,
        "value": "/my-oauth-api/"
      }
    },
    "upstream": {
      "url": "http://httpbin.org/"
    }
  }
}

In this example:

Client authentication has been enabled (line 44)
The OpenAPI description declares the oauth security scheme that expects Authorization Code flow. Note that the authorization URL and token URL are declared relative to the API proxy listen path
Authorization requests (made to POST /my-oauth-api/oauth/authorize) will be redirected to http://<identity-server>/client-redirect-uri where the Resource Owner should be prompted to authorize the request
Notifications of token issuance will be sent to http://notifyme.com with the X-Tyk-Shared-Secret header set to oauth-shared-secret

The auth server (Tyk) will issue an access token and refresh token in exchange for a valid authorization code. Once the client has a valid access token, it will be expected in the Authorization header of the request. The configuration above is a complete and valid Tyk OAS API Definition that you can import into Tyk and, with correctly configured and integrated identity server can be used to try out OAuth Client Authentication using Tyk as the Authorization Server.

Using Tyk Classic APIs

As noted in the Tyk Classic API documentation, you can select the Tyk as OAuth Server method using the use_oauth2 option.

Managing OAuth Tokens

Using Refresh Tokens

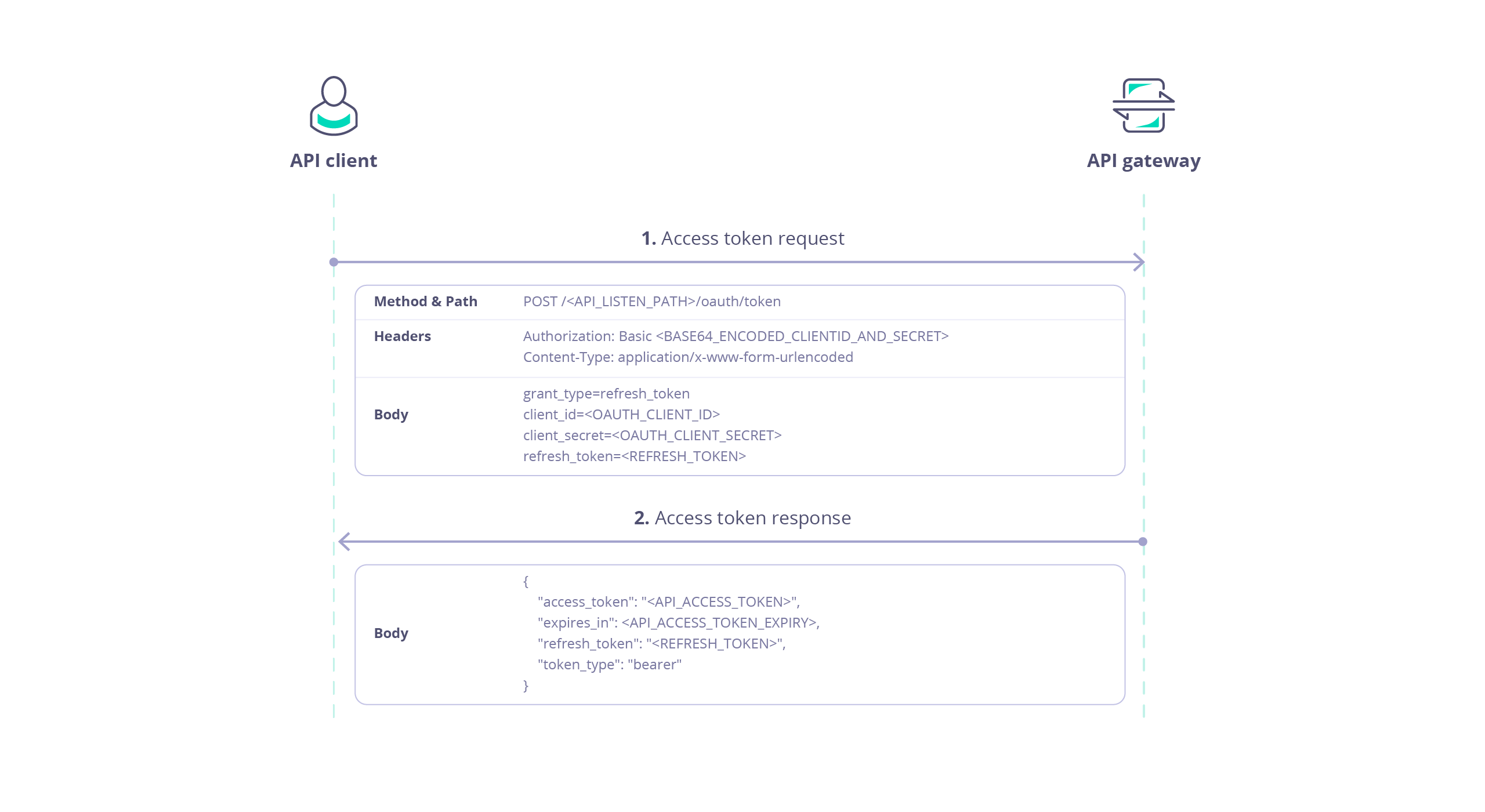

The Refresh Token flow is used to obtain a new access token when the current token has expired or is about to expire. This allows clients to maintain a valid access token without requiring the user to go through the authentication and authorization process again. Refresh tokens are single use and, when used, automatically invalidate the access token with which they were issued. This prevents accidental duplication of access tokens granting authorized access to a resource (API). A refresh token can be issued by the auth server alongside the access token at the last stage of the OAuth flow for:

Authentication Code grant
Resource Owner Password grant

You configure whether Tyk should issue a refresh token within the API proxy definition.

Refreshing an Access Token

If you have correctly configured your API, then Tyk will provide a refresh token with the access token. The client can subsequently exchange the refresh token for a new access token without having to re-authenticate, with another call to the POST /<listen-path>/oauth/token endpoint as follows:

This endpoint is protected using Basic Authentication where the username is the client Id and the password is the client secret. The following data is required in the request payload:

Parameter	Value
`grant_type`	`refresh_token`
`client_id`	client Id
`client_secret`	client secret
`refresh_token`	The refresh token provided with the original access token

For example:

curl -X POST \
  https://tyk.cloud.tyk.io/my-api/oauth/token/ \
  -H "Authorization: Basic bXktY2xpZW50LWlkOm15LWNsaWVudC1zZWNyZXQ=" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=refresh_token&client_id=my-client-id&client_secret=my-client-secret&refresh_token=YjdhOWFmZTAtNmExZi00ZTVlLWIwZTUtOGFhNmIwMWI3MzJj"

This command, issued by the client will obtain a new access token for the /my-api proxy deployed on a Tyk Gateway at https://tyk.cloud.tyk.io. The basic auth key is the base64 encoded representation of my-client-id:my-client-secret The client_id and client_secret match those allocated by Tyk (the auth server) for the client app. The refresh_token is a valid refresh token previously issued to the client. The response payload contains:

access_token: a new access token which can be used by the client to access the protected API
expires_in: the expiration date/time of the access token
token_type: set to bearer indicating that the access token should be provided in an Auth Token request to the protected API
refresh_token: a new refresh token that can be used later to refresh the new access token

For example:

{
  "access_token": "580defdbe1d21e0001c67e5c2a0a6c98ba8b4a059dc5825388501573",
  "expires_in": 3600,
  "refresh_token": "NWQzNGVhMTItMDE4Ny00MDFkLTljOWItNGE4NzI1ZGI1NGU2",
  "token_type": "bearer"
}

Revoking Access Tokens

OAuth access tokens have built in expiry, but if you need to revoke a client’s access to the API before this time, then you can use the option on the OAuth Client management screen screen in Tyk Dashboard UI or the Tyk Dashboard API to do so. Using the Tyk Dashboard API you can revoke specific tokens (both access and refresh) or all tokens issued for a specific client app as follows:

These endpoints are protected using the Dashboard API secret assigned to the user managing the tokens, which must be provided in the Authorization header. In this example, we issue a request to the /revoke endpoint of the auth server via the Tyk Dashboard API to invalidate a specific access token:

curl -X POST \
  https://admin.cloud.tyk.io/api/apis/oauth/{CLIENT_ID}/revoke/ \
  -H "Authorization: <dashboard-secret>" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "token=580defdbe1d21e0001c67e5c2a0a6c98ba8b4a059dc5825388501573&token_type_hint=access_token&client_id=my-client-id&client_secret=my-client-secret"

Note that the token_type_hint must be set to access_token or refresh_token to match the type of token to be revoked.

OAuth Token Notifications

When operating as an OAuth authorization server, Tyk can generate an event whenever it issues an access token. You can configure a dedicated webhook that will be triggered to notify the Resource Owner service of the occurrence of the event. OAuth token notifications can only be configured when using Authorization Code or Resource Owner Password Credentials grants, not when using Client Credentials grant because this flow is primarily used for server-to-server communication, where the client acts on its own behalf without user-specific authorization changes. You can configure the URL that the webhook will issue a POST request and a “shared secret” value that will be provided in a header (X-Tyk-Shared-Secret) used to secure the communication to the target application. The OAuth token notification webhook does not support any other authentication method. The body of the webhook request will have this content:

{
  "auth_code": "",
  "new_oauth_token": "",
  "refresh_token": "",
  "old_refresh_token": "",
  "notification_type": ""
}

where

auth_code is the Authorization Code that has been issued
new_oauth_token is the Access Token that has been issued
refresh_token is the Refresh Token that has been issued
old_refresh_token is the Refresh Token that has been consumed when refreshing an access token
notification_type will indicate the cause of the event:
- new: a new access token has been issued
- refresh: a token has been refreshed and a new refresh token has been issued

Configuring Notifications in the Tyk API Designer

Client Authentication is configured on the Settings screen within the Tyk OAS API Designer, within the Server section. Ensuring that you are in Edit mode, go to the Authentication section where you should have selected Tyk OAuth 2.0 from the drop down options. Here you will see the Notifications section where you can configure:

Notifications URL
Notifications Shared Secret

Remember to select Save API to apply these settings to your API.

Configuring Notifications in the Tyk OAS API Definition

The example given above includes the configuration necessary to issue notifications for token issuance (see lines 48-51 in the example).

Overview

Getting Started

Deploy Tyk

Managing APIs

Security in Tyk

Reference

Developer Support

Use Tyk as an OAuth 2.0 Authorization Server

OAuth 2.0 Core Concepts

Terminology

Access Tokens

Client Application

Manage Client Access Policies

Client App Registration

Using the Tyk Dashboard UI

Using the Tyk Dashboard API

Using the Authorization Code Grant

Integration with Identity Server

Authorization Request

Authorization Code Request

Exchange the Authorization Code for an Access Token

Using the Client Credentials Grant

Access Token Request

Using the Resource Owner Password Grant

Access Token Request

Configuring your API Proxy

Using the Tyk API Designer

Using the API Definition

Using Tyk Classic APIs

Managing OAuth Tokens

Using Refresh Tokens

Refreshing an Access Token

Revoking Access Tokens

OAuth Token Notifications

Configuring Notifications in the Tyk API Designer

Configuring Notifications in the Tyk OAS API Definition

Overview

Getting Started

Deploy Tyk

Managing APIs

Security in Tyk

Reference

Developer Support

​Use Tyk as an OAuth 2.0 Authorization Server

​OAuth 2.0 Core Concepts

​Terminology

​Access Tokens

​Client Application

​Manage Client Access Policies

​Client App Registration

​Using the Tyk Dashboard UI

​Using the Tyk Dashboard API

​Using the Authorization Code Grant

​Integration with Identity Server

​Authorization Request

​Authorization Code Request

​Exchange the Authorization Code for an Access Token

​Using the Client Credentials Grant

​Access Token Request

​Using the Resource Owner Password Grant

​Access Token Request

​Configuring your API Proxy

​Using the Tyk API Designer

​Using the API Definition

​Using Tyk Classic APIs

​Managing OAuth Tokens

​Using Refresh Tokens

​Refreshing an Access Token

​Revoking Access Tokens

​OAuth Token Notifications

​Configuring Notifications in the Tyk API Designer

​Configuring Notifications in the Tyk OAS API Definition

Use Tyk as an OAuth 2.0 Authorization Server

OAuth 2.0 Core Concepts

Terminology

Access Tokens

Client Application

Manage Client Access Policies

Client App Registration

Using the Tyk Dashboard UI

Using the Tyk Dashboard API

Using the Authorization Code Grant

Integration with Identity Server

Authorization Request

Authorization Code Request

Exchange the Authorization Code for an Access Token

Using the Client Credentials Grant

Access Token Request

Using the Resource Owner Password Grant

Access Token Request

Configuring your API Proxy

Using the Tyk API Designer

Using the API Definition

Using Tyk Classic APIs

Managing OAuth Tokens

Using Refresh Tokens

Refreshing an Access Token

Revoking Access Tokens

OAuth Token Notifications

Configuring Notifications in the Tyk API Designer

Configuring Notifications in the Tyk OAS API Definition
