API Observability - Configuring Logs and Metrics

Introduction

API observability is the process of monitoring and analyzing APIs to gain insights into developer and end-user experience and to ensure the reliability of your system. You can achieve API observability by using a combination of telemetry signals such as traces, metrics, and logs. Each of these signals serves a specific purpose in monitoring and troubleshooting API issues:

Logs

Logs provide detailed records of events and activities within the API processing and associated services. Logs are invaluable for debugging issues and understanding what happened at a specific point in time. Here’s how you can use logs for API observability:

Error Identification: Use logs to identify errors, exceptions, and warning messages that indicate issues with the API’s behavior.
Debugging: Logs help developers troubleshoot and debug issues by providing detailed information about the sequence of events leading up to a problem.
Security Monitoring: Monitor logs for security-related events, such as authentication failures, access control violations and suspicious activities.
Audit Trail: Maintain an audit trail of important actions and changes to the API, including configuration changes, access control changes and data updates.

Tyk allows you to capture and analyze logs related to API requests and responses in the Log Browser . You can optionally enable detailed recording for the requests per API level or per Key level to store inbound request and outbound response data. You can enable debug modes for selected APIs and send the detail logs to one or more Pump backend instances. To achieve comprehensive API observability, it is essential to integrate traces, metrics and logs into the observability tools that the team in charge of the APIs are already using. Those tools should allow users to query and visualize data, set up alerts and provide an intuitive interface for monitoring and troubleshooting API issues effectively. See also our 7 observability anti-pattern to avoid when working with APIs: Bad API observability.

Metrics

Metrics provide aggregated, quantitative data about the performance and behavior of an API over time. They offer insights into the overall health of the system. Here’s how you can leverage metrics for API observability:

Key Performance Indicators (KPIs): Define and track essential metrics such as request rate, response time, error rate and resource utilization to monitor the overall health and performance of the API.
Custom Metrics: Create custom metrics that are specific to your API’s functionality or business objectives. For example, track the number of successful payments processed or the number of users signed up.
Threshold Alerts: Set up alerts based on predefined thresholds for metrics to receive notifications when API performance deviates from the expected norm.
Trend Analysis: Analyze metric trends over time to identify long-term performance patterns, plan for scaling and detect anomalies.

Tyk Dashboard offers a traffic analytics function that provides insights into API usage, traffic patterns and response times. The built-in metrics allow you to track overall API traffic, detailed API analytics including: request count, response time distribution and error rates. API usage can be tracked on a per-client (per-key) basis. This analysis uses the traffic logs generated by Tyk Gateway from API requests and responses. Tyk Pump is used to aggregate and transfer the logs to Tyk Dashboard’s aggregate analytics storage. You can also use Tyk Pump to export those metrics to different back-ends. Here is an example of using Tyk Pump to send API analytics metrics to Prometheus and Grafana. You can also leverage the OpenTelemetry spans exported from Tyk Gateway to calculate and export span metrics from the OpenTelemetry collector.

Distributed Tracing

Distributed traces provide a detailed, end-to-end view of a single API request or transaction as it traverses through various services and components. Traces are crucial for understanding the flow of requests and identifying bottlenecks or latency issues. Here’s how you can make use of traces for API observability:

End-to-end request tracing: Implement distributed tracing across your microservices architecture to track requests across different services and gather data about each service’s contribution to the overall request latency.
Transaction Flow: Visualize the transaction flow by connecting traces to show how requests move through different services, including entry points (e.g., API gateway), middleware and backend services.
Latency Analysis: Analyze trace data to pinpoint which service or component is causing latency issues, allowing for quick identification and remediation of performance bottlenecks.
Error Correlation: Use traces to correlate errors across different services to understand the root cause of issues and track how errors propagate through the system.

Since v5.2, Tyk Gateway has supported the OpenTelemetry standard for distributed tracing. You can configure Tyk to work with an OpenTelemetry collector or integrate it with any observability vendor supporting OpenTelemetry to capture traces of API requests as they flow through Tyk Gateway and any upstream services. Explore our guides for Datadog, Dynatrace, Jaeger and New Relic for further info on how to integrate with 3rd party observability vendors. Tyk also supports the legacy OpenTracing approach (now deprecated), but we recommend users to adopt OpenTelemetry for a comprehensive, vendor-neutral technology with wide industry support.

Logging

Tyk Gateway generates two different types of logs for various operational aspects:

System logs capture internal gateway events, typically used for monitoring and debugging.
API traffic logs, also known as transaction logs, record details of every request and response handled by the gateway and are stored in Redis. They are typically processed by Tyk Pump to create aggregated data that are then transferred to persistent storage. Tyk Pump can also be used to transfer the raw logs to 3rd Party analysis tools.

While system logs focus on the gateway’s internal operations and errors, API traffic logs provide insights into API usage, security events, and performance trends. Logging verbosity and format can be customized to suit different operational needs.

System Logs

Tyk will log system events to stderr and stdout. In a typical installation, these will be handled or redirected by the service manager running the process, and depending on the Linux distribution, will either be output to /var/log/ or /var/log/upstart. Tyk will try to output structured logs, and so will include context data around request errors where possible. Custom logging event handlers can be registered against Gateway events to customise the logs that are generated for those events. When contacting support, you may be asked to change the logging level as part of the support handling process. See Support Information for more details.

Log verbosity

Tyk can generate system logs at four levels of verbosity:

error is the most minimal level of logging, reporting only errors
warn will log warnings and errors
info logs errors, warnings and some additional information and is the default logging level
debug generates a high volume of logs for maximum visibility of what Tyk is doing when you need to debug an issue
Debug log level generates a significant volume of data and is not recommended except when debugging. You can enable Debug mode reporting by adding the --debug flag to the process run command.

You can set the logging verbosity for each Tyk Component using the appropriate log_level setting in its configuration file (or the equivalent environment variable). Note that there is no independent log level setting for Tyk Dashboard.

Tyk component	Config option	Environment variable	Default value if unset
All components (except EDP)		`TYK_LOGLEVEL`	`info`
Tyk Gateway	`log_level`	`TYK_GW_LOGLEVEL`	`info`
Tyk Pump	`log_level`	`TYK_PMP_LOGLEVEL`	`info`
Tyk MDCB	`log_level`	`TYK_MDCB_LOGLEVEL`	`info`
Tyk Enterprise Developer Portal	`logLevel`	`PORTAL_LOG_LEVEL`	`info`

For example, setting TYK_GW_LOGLEVEL environment variable to debug will enable verbose debug for the Gateway. Tyk support can advise you which level of verbosity to use for your deployment.

Log format (only available for the Gateway)

As of Tyk Gateway v5.6.0, you can control the format in which logs will be generated - either default or json - using the TYK_LOGFORMAT environment variable. As a general performance tip, the json output format incurs less memory allocation overhead than the default format. For optimal performance, it’s recommended to configure logging in the JSON format. This is an example of the default logging format:

time="Sep 05 09:04:12" level=info msg="Tyk API Gateway v5.6.0" prefix=main

And an example of json logging format:

{"level":"info","msg":"Tyk API Gateway v5.6.0","prefix":"main","time":"2024-09-05T09:01:23-04:00"}

Exporting Logs to Third-Party Tools

Tyk can be configured to send log data to a range of 3rd party tools for aggregation and analysis. The following targets are supported:

Sentry
Logstash
Graylog
Syslog

Sentry

To enable Sentry as a log aggregator, update these settings in both your tyk.conf and your tyk_analytics.conf:

use_sentry: Set this to true to enable the Sentry logger, you must specify a Sentry DSN under sentry_code.
sentry_code: The Sentry-assigned DSN (a kind of URL endpoint) that Tyk can send log data to.

Logstash

To enable Logstash as a log aggregator, update these settings in your tyk.conf:

use_logstash: Set this to true to enable the Logstash logger.
logstash_transport: The Logstash transport to use, should be "tcp".
logstash_network_addr: Set to the Logstash client network address, should be in the form of hostname:port.

Graylog

To enable Graylog as a log aggregator, update these settings in your tyk.conf:

use_graylog: Set this to true to enable the Graylog logger.
graylog_network_addr: The Graylog client address in the form of <graylog_ip>:<graylog_port>.

Syslog

To enable Syslog as a log aggregator, update these settings in your tyk.conf:

use_syslog: Set this to true to enable the Syslog logger.
syslog_transport: The Syslog transport to use, should be "udp" or empty.
syslog_network_addr: Set to the Syslog client network address, should be in the form of hostname:port

API Traffic Logs

When a client makes a request to the Tyk Gateway, the details of the request and response are captured and stored in a temporary Redis list. In Tyk these transaction logs are also referred to as traffic analytics or simply analytics. This list is read (and then flushed) every 10 seconds by the Tyk Pump. The Pump processes the records that it has read from Redis and forwards them to the required data sinks (e.g. databases or other tools) using the pumps configured in your system. You can set up multiple pumps and configure them to send different data to different sinks. The Mongo Aggregate and SQL Aggregate pumps perform aggregation of the raw analytics records before storing the aggregated statistics in the MongoDB or SQL database respectively.

When to use API Traffic Logging

API usage trends Monitoring the usage of your APIs is a key functionality provided by any API Management product. Traffic analytics give you visibility of specific and aggregated accesses to your services which you can monitor trends over time. You can identify popular and underused services which can assist with, for example, determining the demand profile for your services and thus appropriate sizing of the upstream capacity.
Security monitoring Tracking requests made to security-critical endpoints, like those used for authentication or authorization, can help in identifying and mitigating potential security threats. Monitoring these endpoints for unusual activity patterns is a proactive security measure.
Development and testing Enabling tracking during the development and testing phases can provide detailed insights into the API’s behavior, facilitating bug identification and performance optimization. Adjustments to tracking settings can be made as the API transitions to production based on operational requirements.

How API Traffic Logging Works

API traffic logging must be enabled at the Gateway level in the startup configuration using the enable_analytics field (or by setting the equivalent environment variable TYK_GW_ENABLEANALYTICS). The transaction records generated by the Gateway are stored in Redis, from which Tyk Pump can be configured to transfer them to the desired persistent storage. When using Tyk Dashboard, the Aggregate Pump can be used to collate aggregated data that is presented in the analytics screens of the Tyk Dashboard. The Gateway will not, by default, include the request and response payloads in the transaction records. This minimizes the size of the records and also avoids logging any sensitive content. The detailed recording option is provided if you need to capture the payloads in the records. You can suppress the generation of transaction records for any endpoint by enabling the do-not-track middleware for that endpoint. This provides granular control over request tracking. You can find details of all the options available to you when configuring analytics in the Gateway in the reference documentation.

For the Tyk Dashboard’s analytics functionality to work, you must configure both per-request and aggregated pumps for the database platform that you are using. For more details see the Setup Dashboard Analytics section.

Capturing Detailed Logs

The Gateway will not, by default, include the request and response payloads in traffic logs. This minimizes the size of the records and also minimises the risk of logging sensitive content. You can, however, configure Tyk to capture the payloads in the transaction records if required. This can be particularly useful during development and testing phases or when debugging an issue with an API. This is referred to as detailed recording and can be enabled at different levels of granularity. The order of precedence is:

Consequently, Tyk will first check whether the API definition has detailed recording enabled to determine whether to log the request and response bodies. If it does not, then it will check the key being used in the request and finally it will check the Gateway configuration.

Be aware that enabling detailed recording greatly increases the size of the records and will require significantly more storage space as Tyk will store the entire request and response in wire format.

Tyk Cloud users can enable detailed recording per-API following the instructions on this page or, if required at the Gateway level, via a support request. The traffic logs are subject to the subscription’s storage quota and so we recommend that detailed logging only be enabled if absolutely necessary to avoid unnecessary costs.

Configure at API level

You can enable detailed recording for an individual API by setting the server.detailedActivityLogs.enabled flag within the Tyk Vendor Extension. In the Dashboard UI, you can configure detailed recording using the Enable Detailed Activity Logs option in the API Designer.

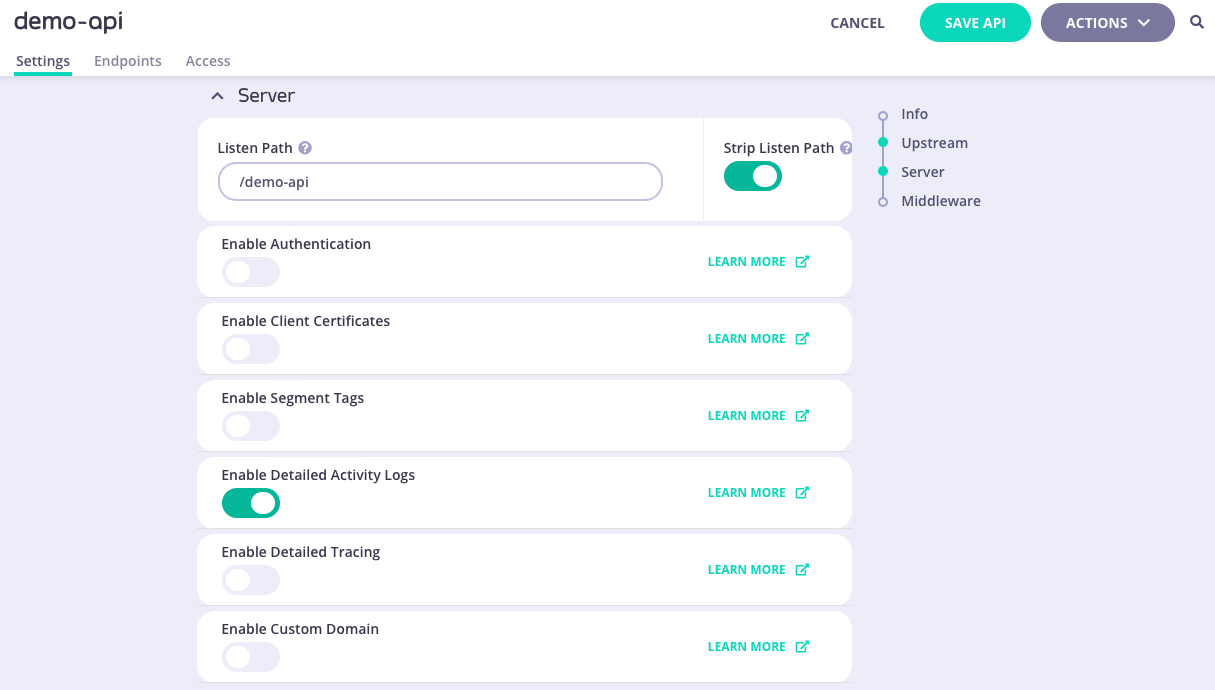

Enabling detailed activity logs for a Tyk OAS API

Tyk Classic APIs When working with Tyk Classic APIs, you should configure the equivalent enable_detailed_recording flag in the root of the API definition. In the Tyk Classic API Designer, the Enable Detailed Logging option can be found in Core Settings.

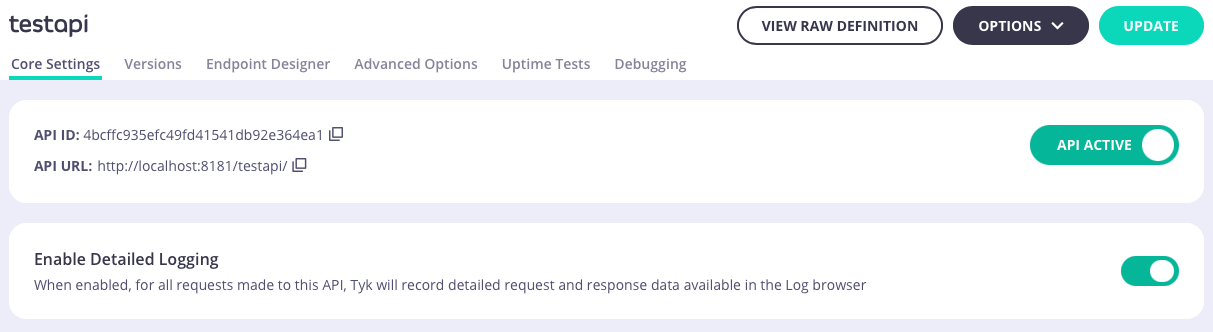

Enabling detailed activity logs for a Tyk Classic API

When using Tyk Operator with Tyk Classic APIs, you can enable detailed recording by setting spec.enable_detailed_recording to true, as in this example:

apiVersion: tyk.tyk.io/v1alpha1
kind: ApiDefinition
metadata:
  name: httpbin
spec:
  name: httpbin
  use_keyless: true
  protocol: http
  active: true
  enable_detailed_recording: true
  proxy:
    target_url: http://httpbin.org
    listen_path: /httpbin
    strip_listen_path: true

Configure at Key Level

An alternative approach to controlling detailed recording is to enable it only for specific access keys. This is particularly useful for debugging purposes where you can configure detailed recording only for the key(s) that are reporting issues. You can enable detailed recording for a key simply by adding the following to the root of the key’s JSON file:

"enable_detailed_recording": true

This will enable detailed recording only for API transactions where this key is used in the request.

Configure at Gateway Level

Detailed recording can be configured at the Gateway level, affecting all APIs deployed on the Gateway, by enabling the detailed recording option in tyk.conf.

{
    "enable_analytics" : true,
    "analytics_config": {
        "enable_detailed_recording": true
    }
}

Enabling API Request Access Logs in Tyk Gateway

As of Tyk Gateway v5.8.0, you can configure the Gateway to log individual API request transactions. To enable this feature, set the TYK_GW_ACCESSLOGS_ENABLED environment variable to true.

Configuring output fields

You can specify which fields are logged by configuring the TYK_GW_ACCESSLOGS_TEMPLATE environment variable. Below are the available values you can include:

api_key: Obfuscated or hashed API key used in the request.
client_ip: IP address of the client making the request.
host: Hostname of the request.
method: HTTP method used in the request (e.g., GET, POST).
path: URL path of the request.
protocol: Protocol used in the request (e.g., HTTP/1.1).
remote_addr: Remote address of the client.
upstream_addr: Full upstream address including scheme, host, and path.
upstream_latency: Roundtrip duration between the gateway sending the request to the upstream server and it receiving a response.
latency_total: Total time taken for the request, including upstream latency and additional processing by the gateway.
user_agent: User agent string from the client.
status: HTTP response status code.

To configure, set TYK_GW_ACCESSLOGS_TEMPLATE environment variable with the desired values in the format: ["value1", "value2", ...].

Default log example

Configuration using tyk.conf

{
    "access_logs": {
        "enabled": true
    }
}

Configuration using environment variables:

TYK_GW_ACCESSLOGS_ENABLED=true

Output:

time="Jan 29 08:27:09" level=info api_id=b1a41c9a89984ffd7bb7d4e3c6844ded api_key=00000000 api_name=httpbin client_ip="::1" host="localhost:8080" latency_total=62 method=GET org_id=678e6771247d80fd2c435bf3 path=/get prefix=access-log protocol=HTTP/1.1 remote_addr="[::1]:63251" status=200 upstream_addr="http://httpbin.org/get" upstream_latency=61 user_agent=PostmanRuntime/7.43.0

Custom template log example

Configuration using tyk.conf

{
    "access_logs": {
        "enabled": true,
        "template": [
            "api_key",
            "remote_addr",
            "upstream_addr"
        ]
    }
}

Configuration using environment variables:

TYK_GW_ACCESSLOGS_ENABLED=true
TYK_GW_ACCESSLOGS_TEMPLATE="api_key,remote_addr,upstream_addr"

Output:

time="Jan 29 08:27:48" level=info api_id=b1a41c9a89984ffd7bb7d4e3c6844ded api_key=00000000 api_name=httpbin org_id=678e6771247d80fd2c435bf3 prefix=access-log remote_addr="[::1]:63270" upstream_addr="http://httpbin.org/get"

Performance Considerations

Enabling access logs introduces some performance overhead:

Latency: Increases consistently by approximately 4%–13%, depending on CPU allocation and configuration.
Memory Usage: Memory consumption increases by approximately 6%–7%.
Allocations: The number of memory allocations increases by approximately 5%–6%.
While the overhead of enabling access logs is noticeable, the impact is relatively modest. These findings suggest the performance trade-off may be acceptable depending on the criticality of logging to your application.

Aggregated analytics

The traffic logs that Tyk Gateway generates are stored in the local Redis temporal storage. They must be transferred to a persistent data store (such as MongoDB or PostgreSQL) for use by analytics tools, typically using Tyk Pump. Tyk Pump can also generate aggregated statistics from these data using the dedicated Mongo Aggregate and SQL Aggregate pumps. These offload processing from Tyk Dashboard and reduce storage requirements compared with storing all of the raw logs. The aggregate pumps calculate statistics from the analytics records, aggregated by hour, for the following keys in the traffic logs:

Key	Analytics aggregated by	Dashboard screen
`APIID`	API proxy	Activity by API
`TrackPath`	API endpoint	Activity by endpoint
`ResponseCode`	HTTP status code (success/error)	Activity by errors
`APIVersion`	API version	n/a
`APIKey`	Client access key/token	Activity by Key
`OauthID`	OAuth client (if OAuth used)	Traffic per OAuth Client
`Geo`	Geographic location of client	Activity by location

Custom aggregation keys

Whereas Tyk Pump will automatically produce aggregated statistics for the keys in the previous section, you can also define custom aggregation keys using Tyk’s custom analytics tag feature which identifies specific HTTP request headers to be used as aggregation keys. This has various uses, for example”

You need to record additional information from the request into the analytics but want to avoid detailed logging due to the volume of traffic logs.
You wish to track a group of API requests, for example:
- Show me all API requests where tenant-id=123
- Show me all API requests where user-group=abc

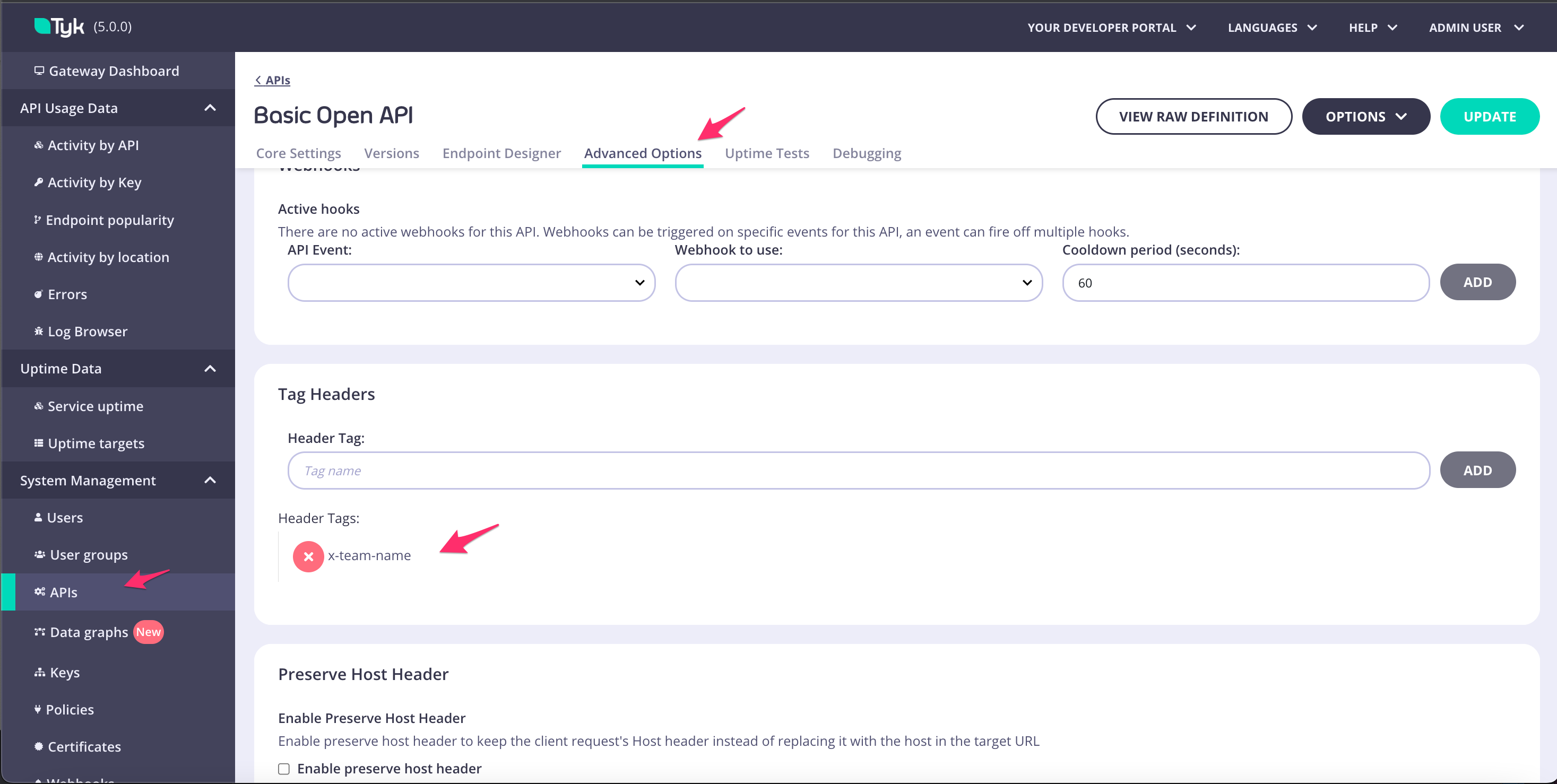

The Traffic Log middleware is applied to all endpoints in the API and so configuration is found in the middleware.global section of the Tyk Vendor Extension, within the trafficLogs section. Custom aggregation tags are specified as a list of HTTP headers in middleware.global.trafficLogs.tagHeaders that Tyk should use for generation of custom aggregation tags for the API. For example if we include the header name x-user-id in the list of headers, then Tyk will create an aggregation key for each different value observed in that header. These aggregation keys will be given the name <header_name>-<header_value>, for example x-user-id-1234 if the request contains the HTTP header "x-user-id":1234. Tyk Classic APIs If you are using Tyk Classic APIs, then the equivalent field in the API definition is tag_headers. In the Tyk Classic API Designer, the Tag Headers option can be found in Advanced Options.

When using Tyk Operator with Tyk Classic APIs, you can configure custom analytics tags by setting spec.tag_headers to true, as in this example:

apiVersion: tyk.tyk.io/v1alpha1
kind: ApiDefinition
metadata:
  name: httpbin-tag-headers
spec:
  name: httpbin-tag-headers
  use_keyless: true
  protocol: http
  active: true
  tag_headers:
  - Host
  - User-Agent
  proxy:
    target_url: http://httpbin.org
    listen_path: /httpbin-tag-headers
    strip_listen_path: true

In this example we can see that the Host and User-Agent headers exist within the tag_headers array. For each incoming request Tyk will add host-<header_value> and user-agent-<header_value> tags to the list of tags in the traffic log.

Suppressing generation of aggregates for custom keys

If you don’t want or need aggregated analytics for the headers you record with tagHeaders, you can configure Tyk Pump (or Tyk MDCB if it is performing the pump functionality) to discard those statistics when writing to the persistent analytics store. For both cases, you simply add the tags you want to ignore, or their prefixes, to the ignore_tag_prefix_list field in the appropriate configuration file or environment variable:

Hybrid Pump config
Mongo Pump config
Splunk Pump config
SQL Pump config
MDCB config
If you add headers to the tags list that are unique to each request, such as a timestamp or unique request Id, then Tyk Gateway will essentially create an aggregation point per request and the number of these tags in an hour will be equal to the number of requests. Since there’s no real value in aggregating something that has a total of one, we recommend that you add such headers to the ignore list.

Metric Collection

Metrics collection and analysis are key components of an Observability strategy, providing real-time insight into system behaviour and performance. Tyk Gateway, Pump and Dashboard have been instrumented for StatsD monitoring. Additionally, Tyk Gateway has also been instrumented for New Relic metrics.

StatsD Instrumentation

StatsD is a network daemon that listens for statistics, like counters and timers, sent over UDP or TCP and sends aggregates to one or more pluggable backend services. It’s a simple yet powerful tool for collecting and aggregating application metrics.

Configuring StatsD instrumentation

To enable instrumentation for StatsD, you must set the environment variable: TYK_INSTRUMENTATION=1 and then configure the statsd_connection_string field for each component. statsd_connection_string is a formatted string that specifies how to connect to the StatsD server. It typically includes information such as the host address, port number, and sometimes additional configuration options. Optionally you can set statsd_prefix to a custom prefix value that will be applied to each metric generated by Tyk. For example, you can configure separate prefixes for your production and staging environments to make it easier to differentiate between the metrics in your analysis tool.

StatsD Keys

There are plenty of keys (metrics) available when you enable the StatsD instrumentation, but these are the basics:

API traffic handled by Gateway: gauges.<prefix>.Load.rps (requests per second)
Tyk Gateway API: counters.<prefix>.SystemAPICall.called.count (calls count) and timers.<prefix>.SystemAPICall.success (response time)
Tyk Dashboard API: counters.<prefix>.SystemAPICall.SystemCallComplete.count (requests count), counters.<prefix>.DashSystemAPIError.* (API error reporting)
Tyk Pump records: counters.<prefix>.record.count (number of records processed by pump)

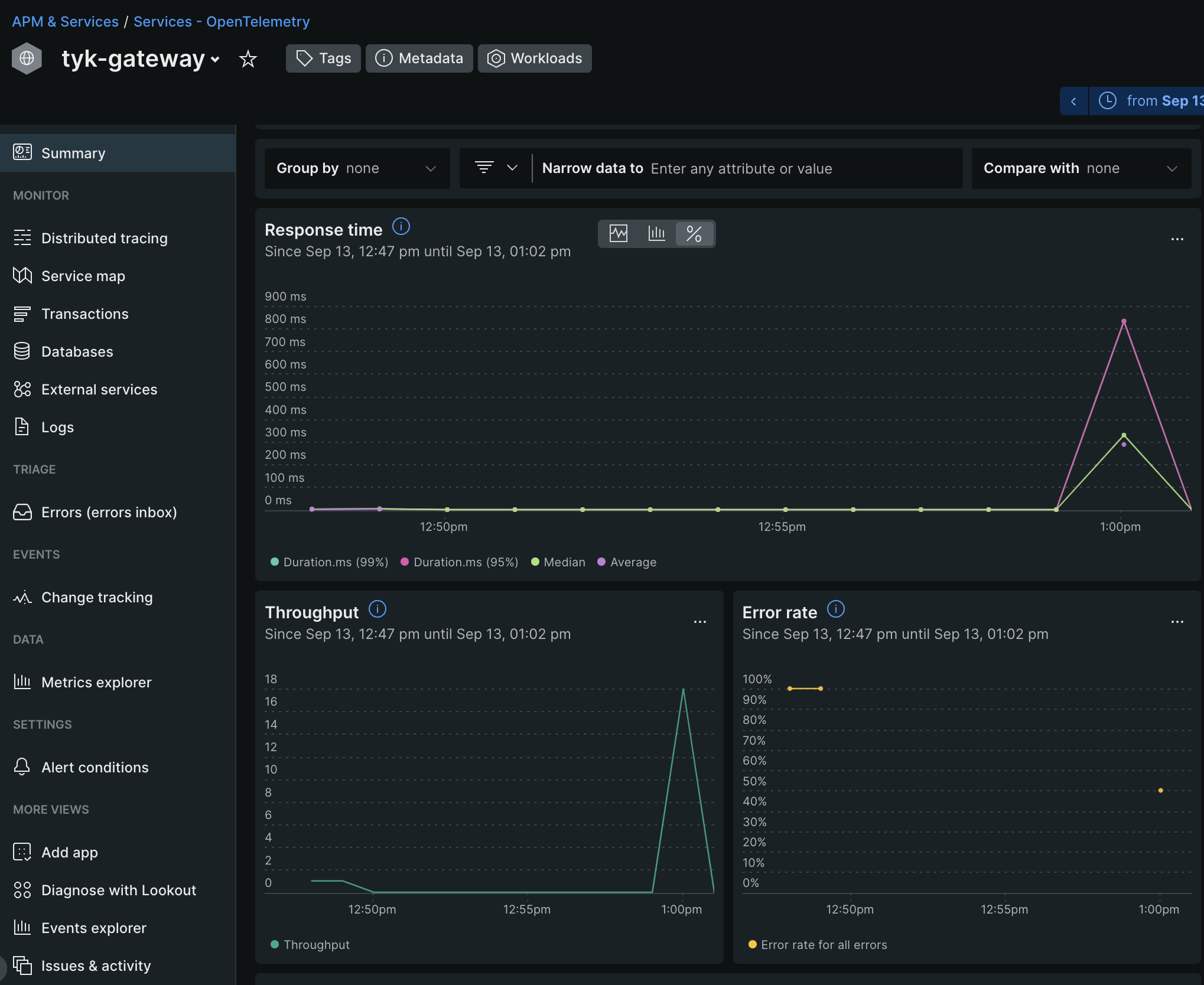

New Relic Instrumentation

Tyk Gateway has been instrumented for New Relic metrics since v2.5. Simply add the following config section to tyk.conf to enable the instrumentation and generation of data:

{
  "newrelic": {
    "app_name": "<app-name>",
    "license_key": "<license_key>"
  }
}

OpenTelemetry

Starting from Tyk Gateway version 5.2, you can leverage the power of OpenTelemetry, an open-source observability framework designed for cloud-native software. This enhances your API monitoring with end-to-end distributed tracing. At this time, Tyk does not support OpenTelemetry metrics or logging, but we have these on our roadmap for future enhancement of the product. This documentation will guide you through the process of enabling and configuring OpenTelemetry in Tyk Gateway. You’ll also learn how to customize trace detail levels to meet your monitoring requirements. For further guidance on configuring your observability back-end, explore our guides for Datadog, Dynatrace, Jaeger and New Relic. All the configuration options available when using Tyk’s OpenTelemetry capability are documented in the Tyk Gateway configuration guide.

Using OpenTelemetry with Tyk

OpenTelemetry support must be enabled at the Gateway level by adding the following to the Tyk Gateway configuration file (typically tyk.conf):

    {
        "opentelemetry": {
            "enabled": true
        }
    }

Alternatively you can set the corresponding environment variable TYK_GW_OPENTELEMETRY_ENABLED to true.

By default, OpenTelemetry spans are exported to the collector using the gRPC protocol to localhost:4317. You can choose between HTTP and gRPC protocols by configuring the opentelemetry.exporter field to http or grpc. You can specify an alternative target using the opentelemetry.endpoint control.

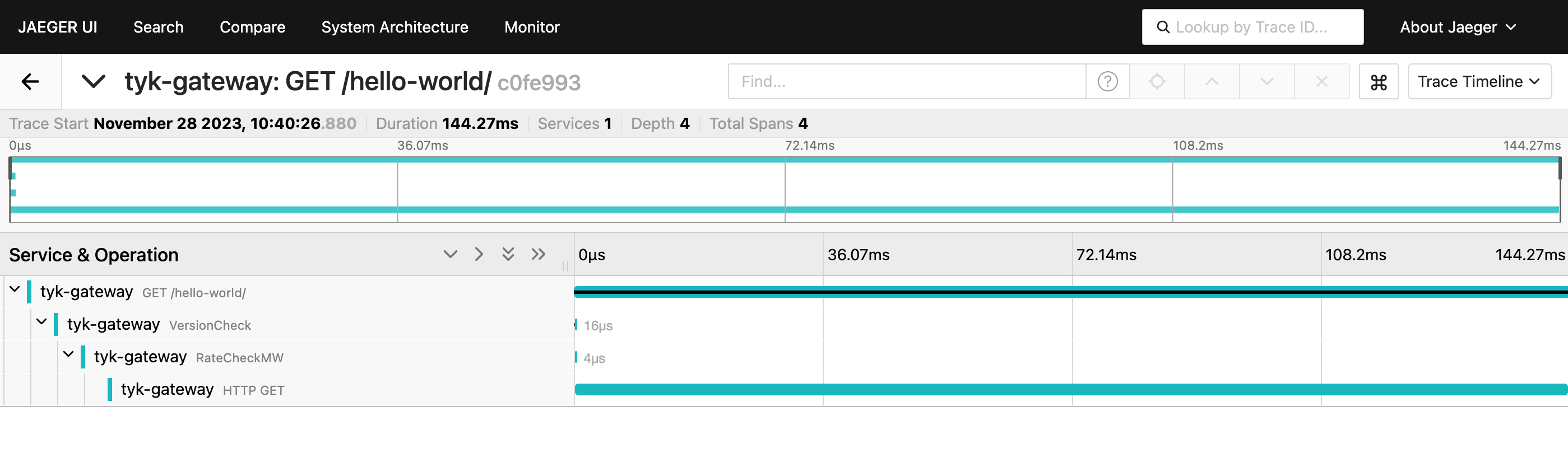

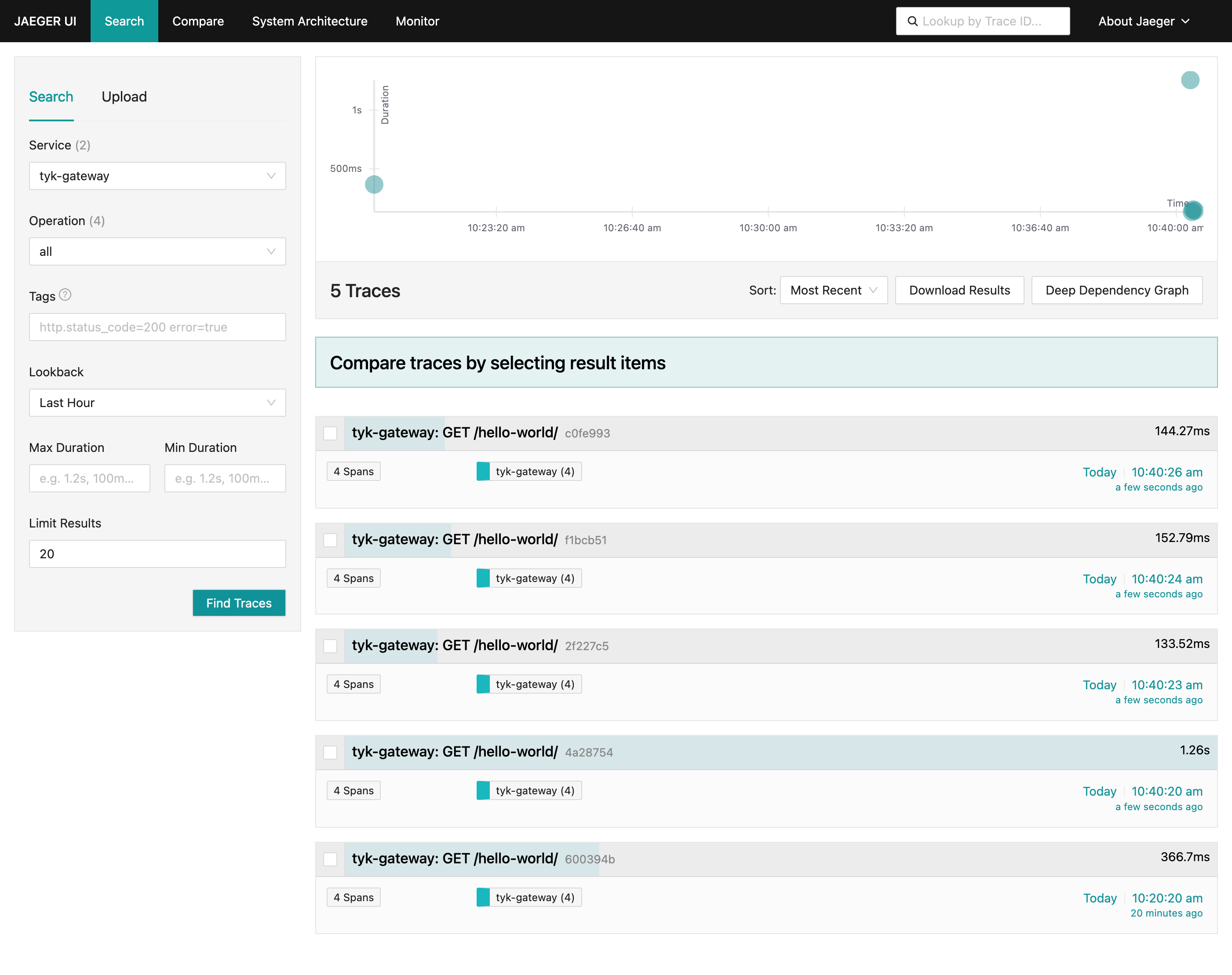

Tyk Gateway will now generate two spans for each request made to your APIs, encapsulating the entire request lifecycle. These spans include attributes and tags but lack fine-grained details. The parent span represents the total time from request reception to response and the child span represent the time spent in the upstream service.

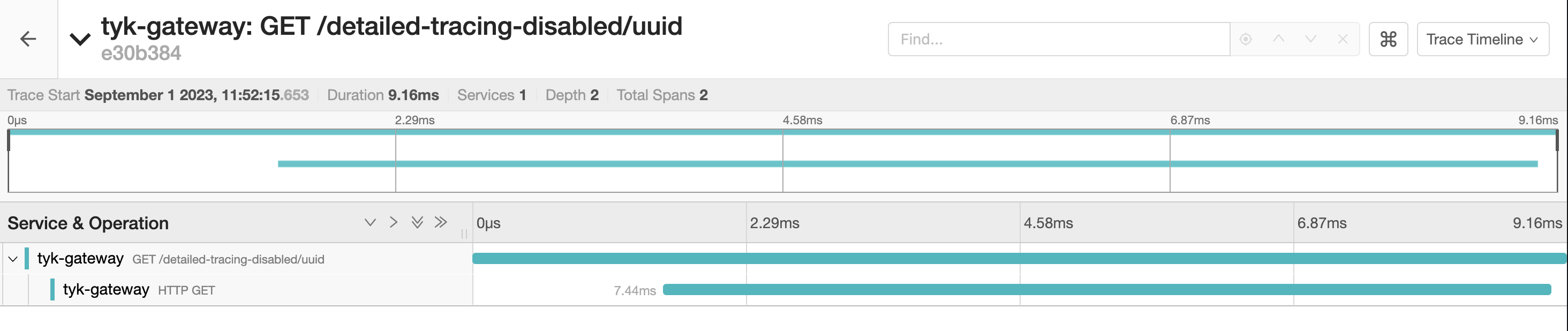

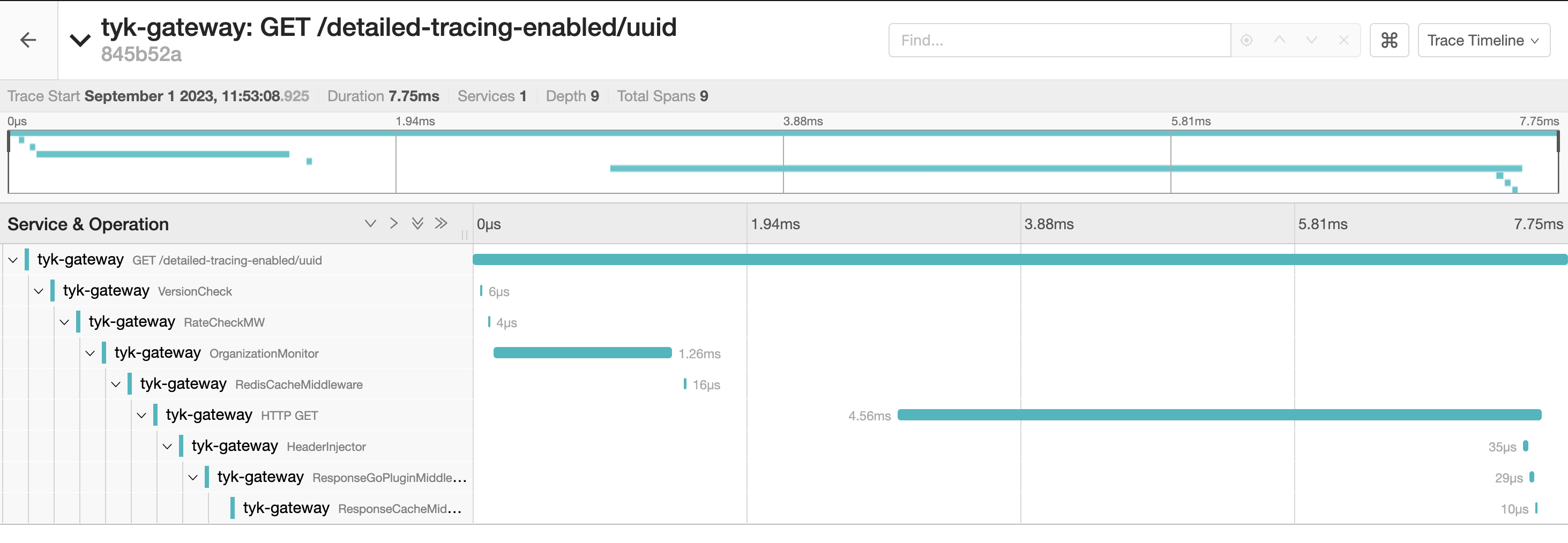

Detailed Tracing

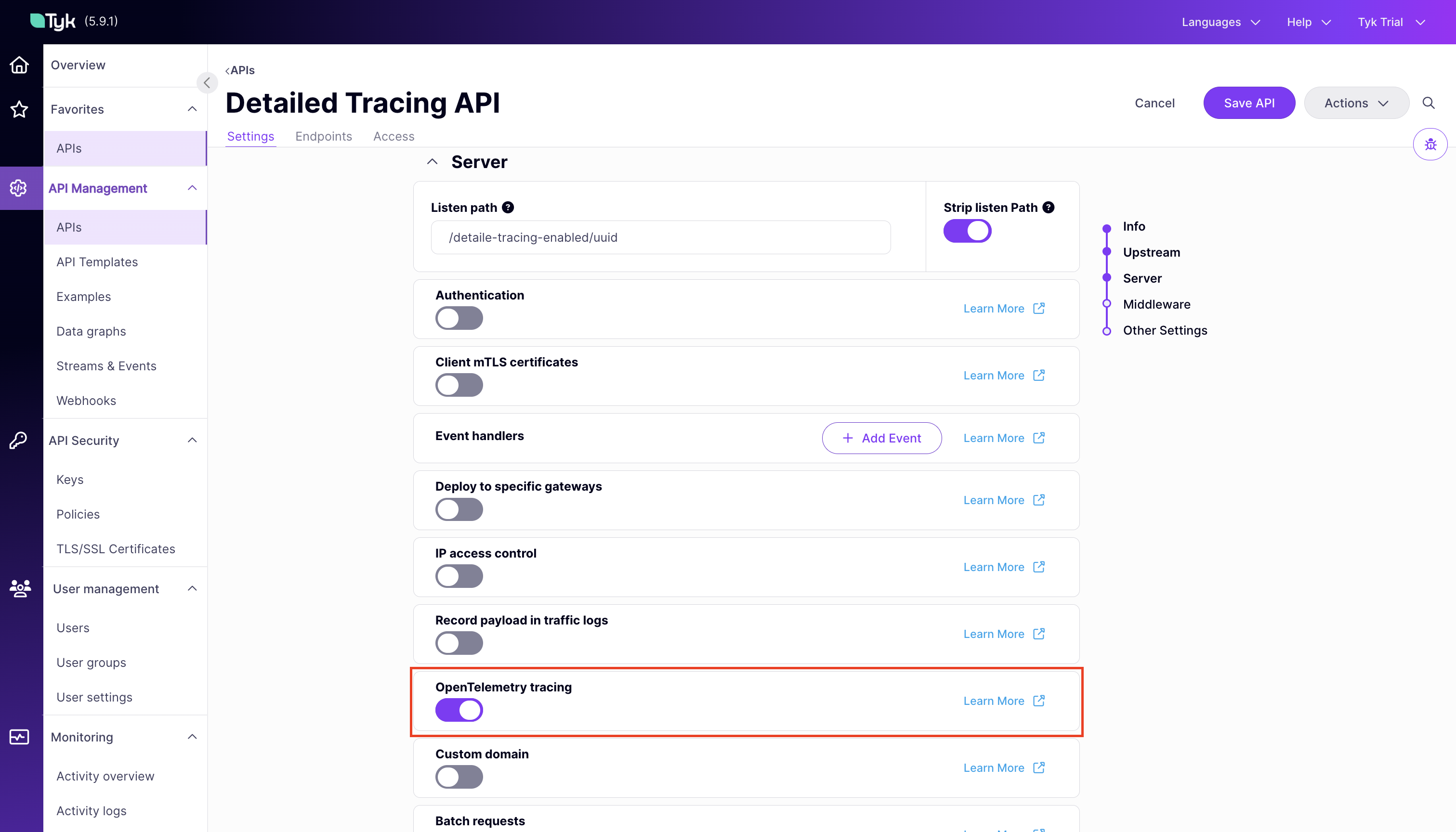

You can generate more detailed traces for requests to an API by setting the server.detailedTracing flag in the Tyk Vendor Extension of the API definition. For users of the Tyk Dashboard UI, the Enable Detailed Tracing option in the Tyk OAS API Designer allows you to set and unset this option for the API.

When detailed tracing is enabled for an API, Tyk creates a span for each middleware involved in request processing. These spans offer detailed insights, including the time taken for each middleware execution and the sequence of invocations.

By choosing the appropriate setting, you can customize the level of tracing detail to suit your monitoring needs. Tyk Classic APIs If you are using Tyk Classic APIs, then the equivalent field in the API definition is detailed_tracing.

Understanding The Traces

Tyk Gateway exposes a helpful set of span attributes and resource attributes with the generated spans. These attributes provide useful insights for analyzing your API requests. A clear analysis can be obtained by observing the specific actions and associated context within each request/response. This is where span and resource attributes play a significant role.

Span Attributes

A span is a named, timed operation that represents an operation. Multiple spans represent different parts of the workflow and are pieced together to create a trace. While each span includes a duration indicating how long the operation took, the span attributes provide additional contextual metadata. Span attributes are key-value pairs that provide contextual metadata for individual spans. Tyk automatically sets the following span attributes:

tyk.api.name: API name.
tyk.api.orgid: Organization ID.
tyk.api.id: API ID.
tyk.api.path: API listen path.
tyk.api.tags: If tagging is enabled in the API definition, the tags are added here.

Resource Attributes

Resource attributes provide contextual information about the entity that produced the telemetry data. Tyk exposes following resource attributes:

Service Attributes

The service attributes supported by Tyk are:

Attribute	Type	Description
`service.name`	String	Service name for Tyk API Gateway: `tyk-gateway`
`service.instance.id` and `tyk.gw.id`	String	The Node ID assigned to the gateway. Example `solo-6b71c2de-5a3c-4ad3-4b54-d34d78c1f7a3`
`service.version`	String	Represents the service version. Example `v5.2.0`
`tyk.gw.dataplane`	Bool	Whether the Tyk Gateway is hybrid (`slave_options.use_rpc=true`)
`tyk.gw.group.id`	String	Represents the `slave_options.group_id` of the gateway. Populated only if the gateway is hybrid.
`tyk.gw.tags`	[]String	Represents the gateway `segment_tags`. Populated only if the gateway is segmented.

By understanding and using these resource attributes, you can gain better insights into the performance of your API Gateways.

Common HTTP Span Attributes

Tyk follows the OpenTelemetry semantic conventions for HTTP spans. You can find detailed information on common attributes here. Some of these common attributes include:

http.method: HTTP request method.
http.scheme: URL scheme.
http.status_code: HTTP response status code.
http.url: Full HTTP request URL.

For the full list and details, refer to the official OpenTelemetry Semantic Conventions.

Advanced OpenTelemetry Capabilities

Context Propagation

This setting allows you to specify the type of context propagator to use for trace data. It’s essential for ensuring compatibility and data integrity between different services in your architecture. The available options are:

tracecontext: This option supports the W3C Trace Context format.
b3: This option serializes SpanContext to/from the B3 multi Headers format. Here you can find more information of this propagator.

The default setting is tracecontext. To configure this setting, you have two options:

Environment Variable: Use TYK_GW_OPENTELEMETRY_CONTEXTPROPAGATION to specify the context propagator type.
Configuration File: Navigate to the opentelemetry.context_propagation field in your configuration file to set your preferred option.

Sampling Strategies

Tyk supports configuring the following sampling strategies via the Sampling configuration structure:

Sampling Type

This setting dictates the sampling policy that OpenTelemetry uses to decide if a trace should be sampled for analysis. The decision is made at the start of a trace and applies throughout its lifetime. By default, the setting is AlwaysOn. To customize, you can either set the TYK_GW_OPENTELEMETRY_SAMPLING_TYPE environment variable or modify the opentelemetry.sampling.type field in the Tyk Gateway configuration file. Valid values for this setting are:

AlwaysOn: All traces are sampled.
AlwaysOff: No traces are sampled.
TraceIDRatioBased: Samples traces based on a specified ratio.

Sampling Rate

This field is crucial when the Type is configured to TraceIDRatioBased. It defines the fraction of traces that OpenTelemetry will aim to sample, and accepts a value between 0.0 and 1.0. For example, a Rate set to 0.5 implies that approximately 50% of the traces will be sampled. The default value is 0.5. To configure this setting, you have the following options:

Environment Variable: Use TYK_GW_OPENTELEMETRY_SAMPLING_RATE.
Configuration File: Update the opentelemetry.sampling.rate field in the configuration file.

ParentBased Sampling

This option is useful for ensuring the sampling consistency between parent and child spans. Specifically, if a parent span is sampled, all it’s child spans will be sampled as well. This setting is particularly effective when used with TraceIDRatioBased, as it helps to keep the entire transaction story together. Using ParentBased with AlwaysOn or AlwaysOff may not be as useful, since in these cases, either all or no spans are sampled. The default value is false. Configuration options include:

Environment Variable: Use TYK_GW_OPENTELEMETRY_SAMPLING_PARENTBASED.
Configuration File: Update the opentelemetry.sampling.parent_based field in the configuration file.

OpenTelemetry Backends for Tracing

Datadog

This guide explains how to configure Tyk API Gateway and the OpenTelemetry Collector to collect distributed traces in Datadog. It follows the reference documentation from Datadog. While this tutorial demonstrates using an OpenTelemetry Collector running in Docker, the core concepts remain consistent regardless of how and where the OpenTelemetry collector is deployed. Whether you’re using Tyk API Gateway in an open-source (OSS) or commercial deployment, the configuration options remain identical.

Prerequisites

Docker installed on your machine
Tyk Gateway v5.2.0 or higher
OpenTelemetry Collector Contrib docker image. Make sure to use the Contrib distribution of the OpenTelemetry Collector as it is required for the Datadog exporter.

Steps for Configuration

Configure the OpenTelemetry Collector You will need:

An API key from Datadog. For example, 6c35dacbf2e16aa8cda85a58d9015c3c.
Your Datadog site. Examples are: datadoghq.com, us3.datadoghq.com and datadoghq.eu.

Create a new YAML configuration file named otel-collector.yml with the following content:

receivers:
otlp:
    protocols:
    grpc:
        endpoint: 0.0.0.0:4317
processors:
batch:
    send_batch_max_size: 100
    send_batch_size: 10
    timeout: 10s
exporters:
datadog:
    api:
    site: "YOUR-DATADOG-SITE"
    key: "YOUR-DATAGOG-API-KEY"
service:
pipelines:
    traces:
    receivers: [otlp]
    processors: [batch]
    exporters: [datadog]

Configure a test API If you don’t have any APIs configured yet, create a subdirectory called apps in the current directory. Create a new file apidef-hello-world.json and copy this very simple API definition for testing purposes:

{
    "name": "Hello-World",
    "slug": "hello-world",
    "api_id": "Hello-World",
    "org_id": "1",
    "use_keyless": true,
    "detailed_tracing": true,
    "version_data": {
    "not_versioned": true,
    "versions": {
        "Default": {
        "name": "Default",
        "use_extended_paths": true
        }
    }
    },
    "proxy": {
    "listen_path": "/hello-world/",
    "target_url": "http://httpbin.org/",
    "strip_listen_path": true
    },
    "active": true
}

Create the Docker-Compose file Save the following YAML configuration to a file named docker-compose.yml.

version: "2"
services:
# OpenTelemetry Collector Contrib
otel-collector:
    image: otel/opentelemetry-collector-contrib:latest
    volumes:
    - ./otel-collector.yml:/etc/otel-collector.yml
    command: ["--config=/etc/otel-collector.yml"]
    ports:
    - "4317" # OTLP gRPC receiver
    networks:
    - tyk

# Tyk API Gateway, open-source deployment
tyk:
    image: tykio/tyk-gateway:v5.2
    ports:
    - 8080:8080
    environment:
    - TYK_GW_OPENTELEMETRY_ENABLED=true
    - TYK_GW_OPENTELEMETRY_EXPORTER=grpc
    - TYK_GW_OPENTELEMETRY_ENDPOINT=otel-collector:4317
    volumes:
    - ./apps:/opt/tyk-gateway/apps
    depends_on:
    - redis
    networks:
    - tyk

redis:
    image: redis:4.0-alpine
    ports:
    - 6379:6379
    command: redis-server --appendonly yes
    networks:
    - tyk

networks:
tyk:

To start the services, go to the directory that contains the docker-compose.yml file and run the following command:

docker-compose up

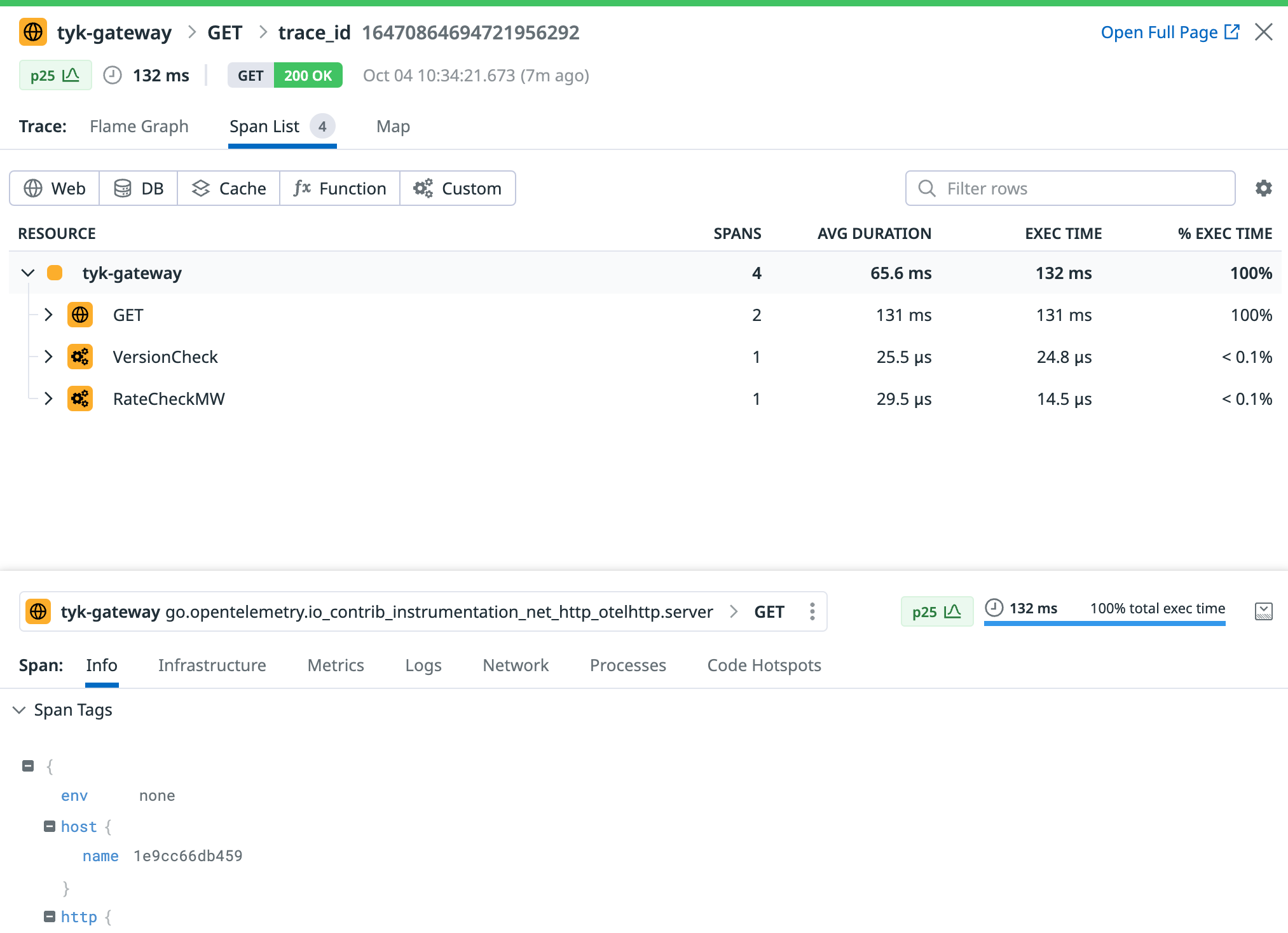

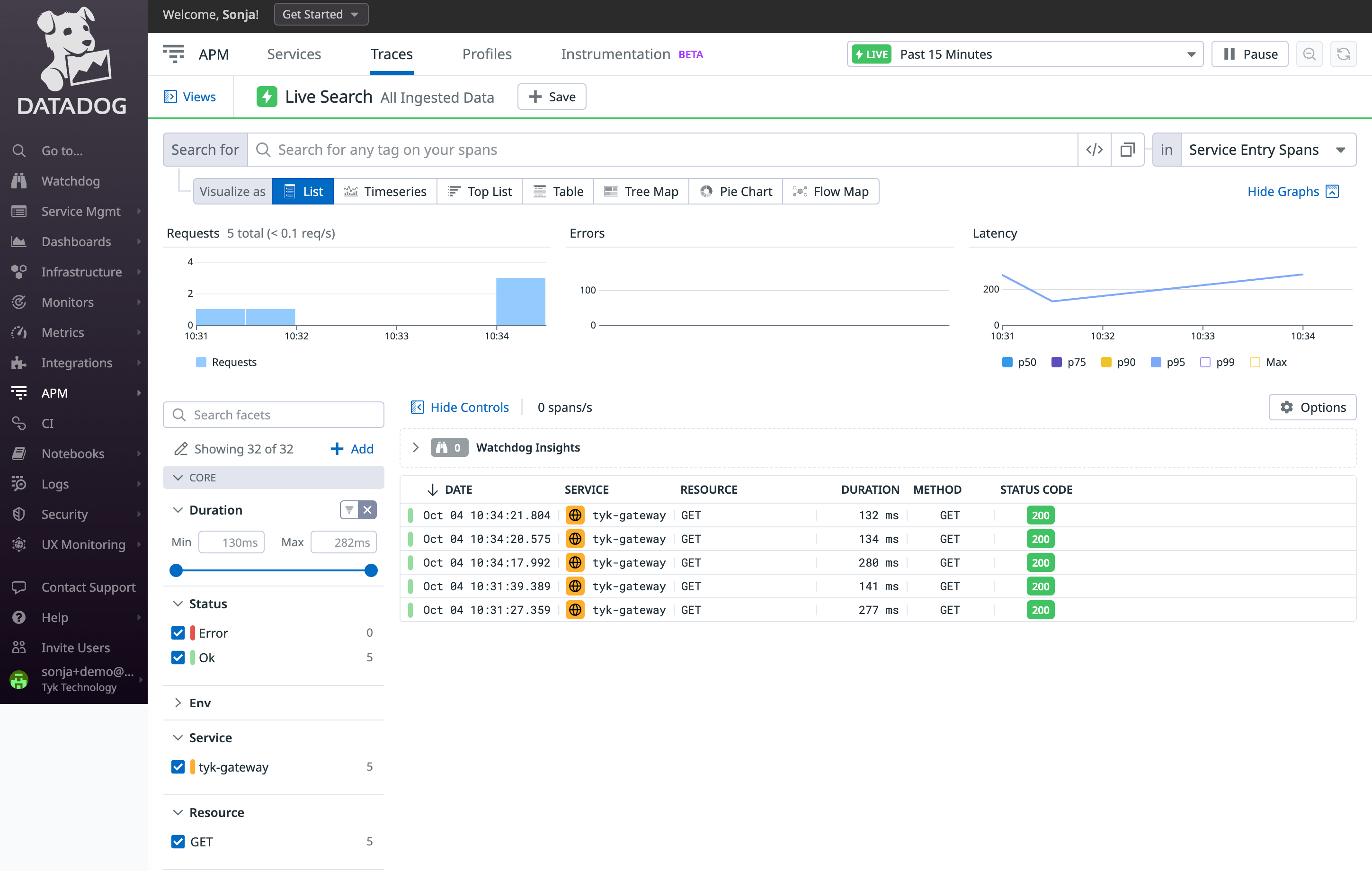

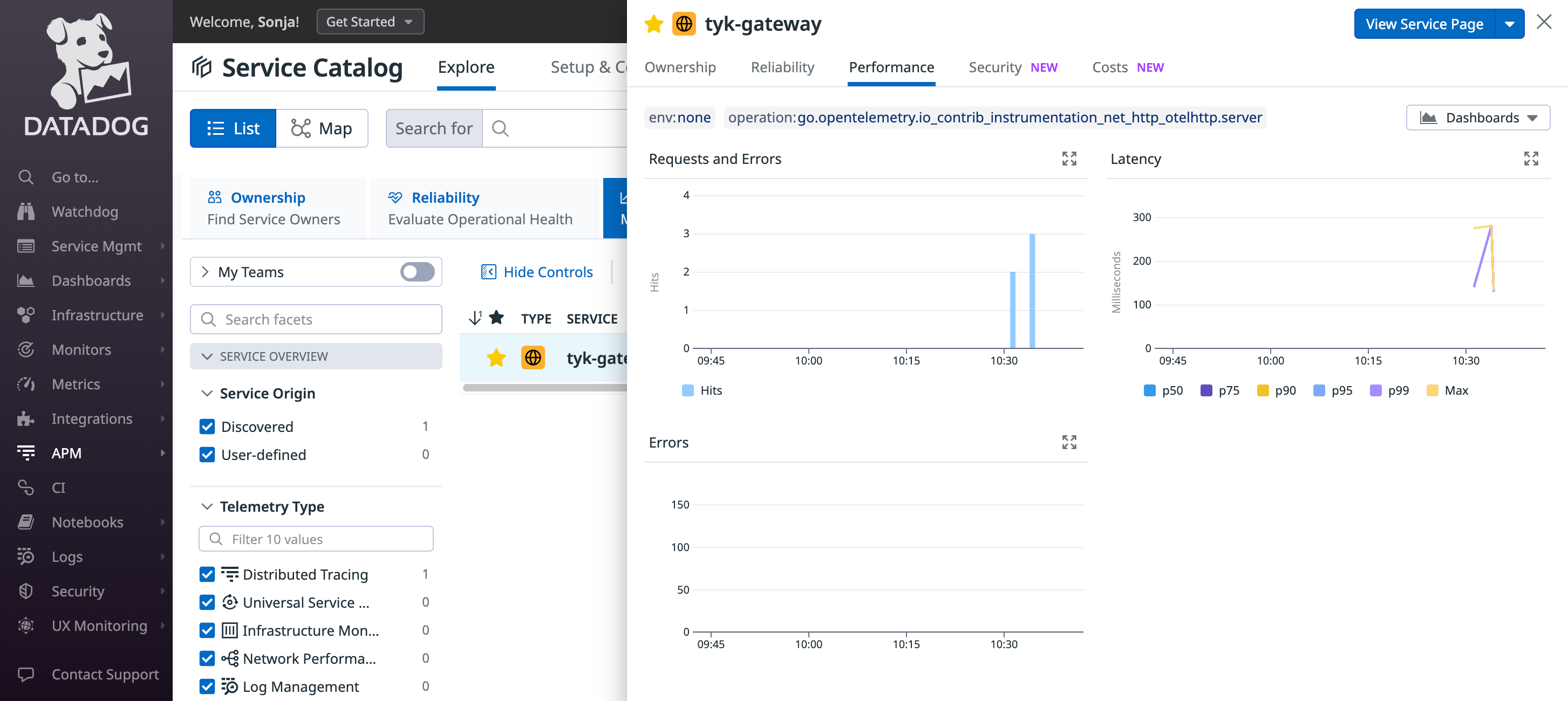

Explore OpenTelemetry traces in Datadog Begin by sending a few requests to the API endpoint configured in step 2: http://localhost:8080/hello-world/ Next, log in to Datadog and navigate to the ‘APM’ / ‘Traces’ section. Here, you should start observing traces generated by Tyk: Click on a trace to view all its internal spans: Datadog will generate a service entry to monitor Tyk API Gateway and will automatically compute valuable metrics using the ingested traces.

Troubleshooting

If you do not observe any traces appearing in Datadog, consider the following steps for resolution:

Logging: Examine logs from Tyk API Gateway and from the OpenTelemetry Collector for any issues or warnings that might provide insights.
Data Ingestion Delays: Be patient, as there could be some delay in data ingestion. Wait for 10 seconds to see if traces eventually appear, as this is the timeout we have configured in the batch processing of the OpenTelemetry collector within step 1.

Dynatrace

This documentation covers how to set up Dynatrace to ingest OpenTelemetry traces via the OpenTelemetry Collector (OTel Collector) using Docker.

Prerequisites

Docker installed on your machine
Dynatrace account
Dynatrace Token
Gateway v5.2.0 or higher
OTel Collector docker image

Steps for Configuration

Generate Dynatrace Token
1. In the Dynatrace console, navigate to access keys.
2. Click on Create a new key
3. You will be prompted to select a scope. Choose Ingest OpenTelemetry traces.
4. Save the generated token securely; it cannot be retrieved once lost.
Example of a generated token (taken from Dynatrace website):
```
dt0s01.ST2EY72KQINMH574WMNVI7YN.G3DFPBEJYMODIDAEX454M7YWBUVEFOWKPRVMWFASS64NFH52PX6BNDVFFM572RZM
```

Configuration Files

OTel Collector Configuration File

Create a YAML file named otel-collector-config.yml. In this file replace <YOUR-ENVIRONMENT-STRING> with the string from the address bar when you log into Dynatrace. Replace <YOUR-DYNATRACE-API-KEY> with the token you generated earlier. Here’s a sample configuration file:

receivers:
otlp:
    protocols:
    http:
        endpoint: 0.0.0.0:4318
    grpc:
        endpoint: 0.0.0.0:4317
processors:
batch:
exporters:
otlphttp:
    endpoint: "https://<YOUR-ENVIRONMENT-STRING>.live.dynatrace.com/api/v2/otlp"
    headers:
    Authorization: "Api-Token <YOUR-DYNATRACE-API-KEY>" # You must keep 'Api-Token', just modify <YOUR-DYNATRACE-API-KEY>
extensions:
health_check:
pprof:
    endpoint: :1888
zpages:
    endpoint: :55679
service:
extensions: [pprof, zpages, health_check]
pipelines:
    traces:
    receivers: [otlp]
    processors: [batch]
    exporters: [otlphttp]

Docker Compose File

Create a file named docker-compose.yml. Here is the sample Docker Compose file:

version: "3.9"
services:
otel-collector:
    image: otel/opentelemetry-collector:latest
    volumes:
    - ./configs/otel-collector-config.yml:/etc/otel-collector.yml
    command: ["--config=/etc/otel-collector.yml"]
    networks:
    - tyk
    ports:
    - "1888:1888" # pprof extension
    - "13133:13133" # health_check extension
    - "4317:4317" # OTLP gRPC receiver
    - "4318:4318" # OTLP http receiver
    - "55670:55679" # zpages extension
networks:
tyk:

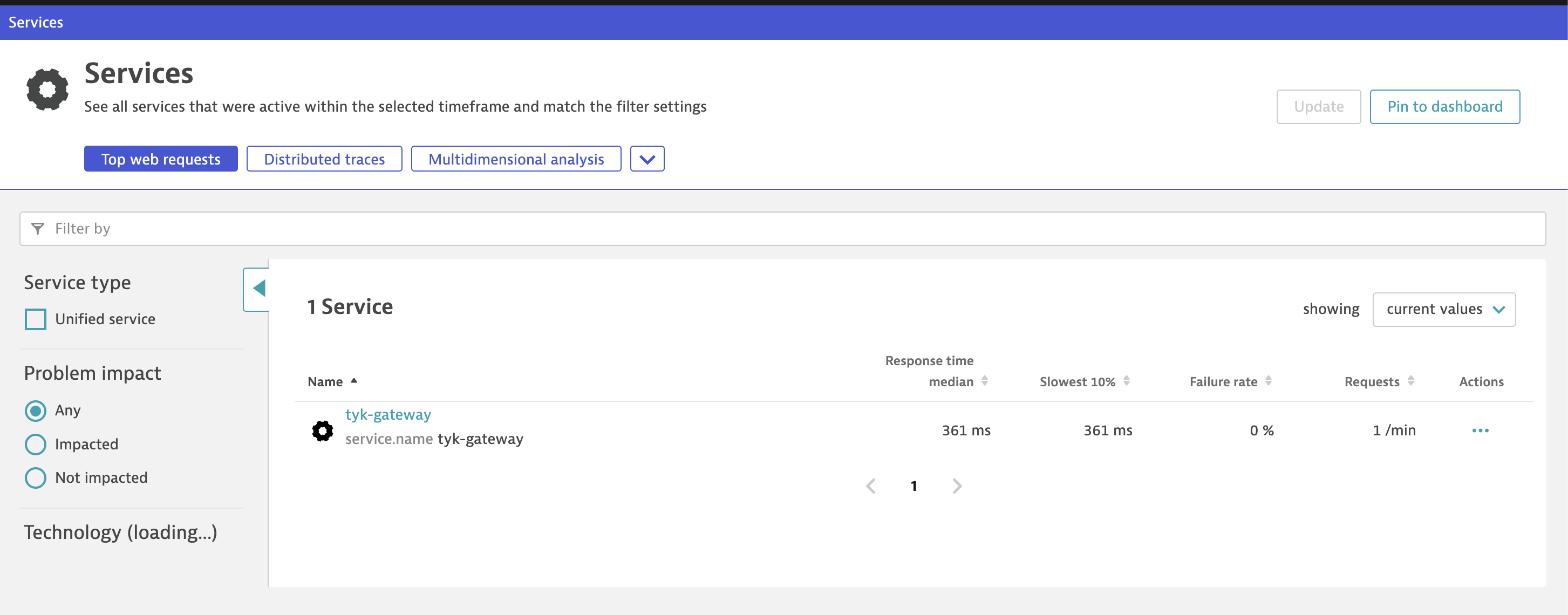

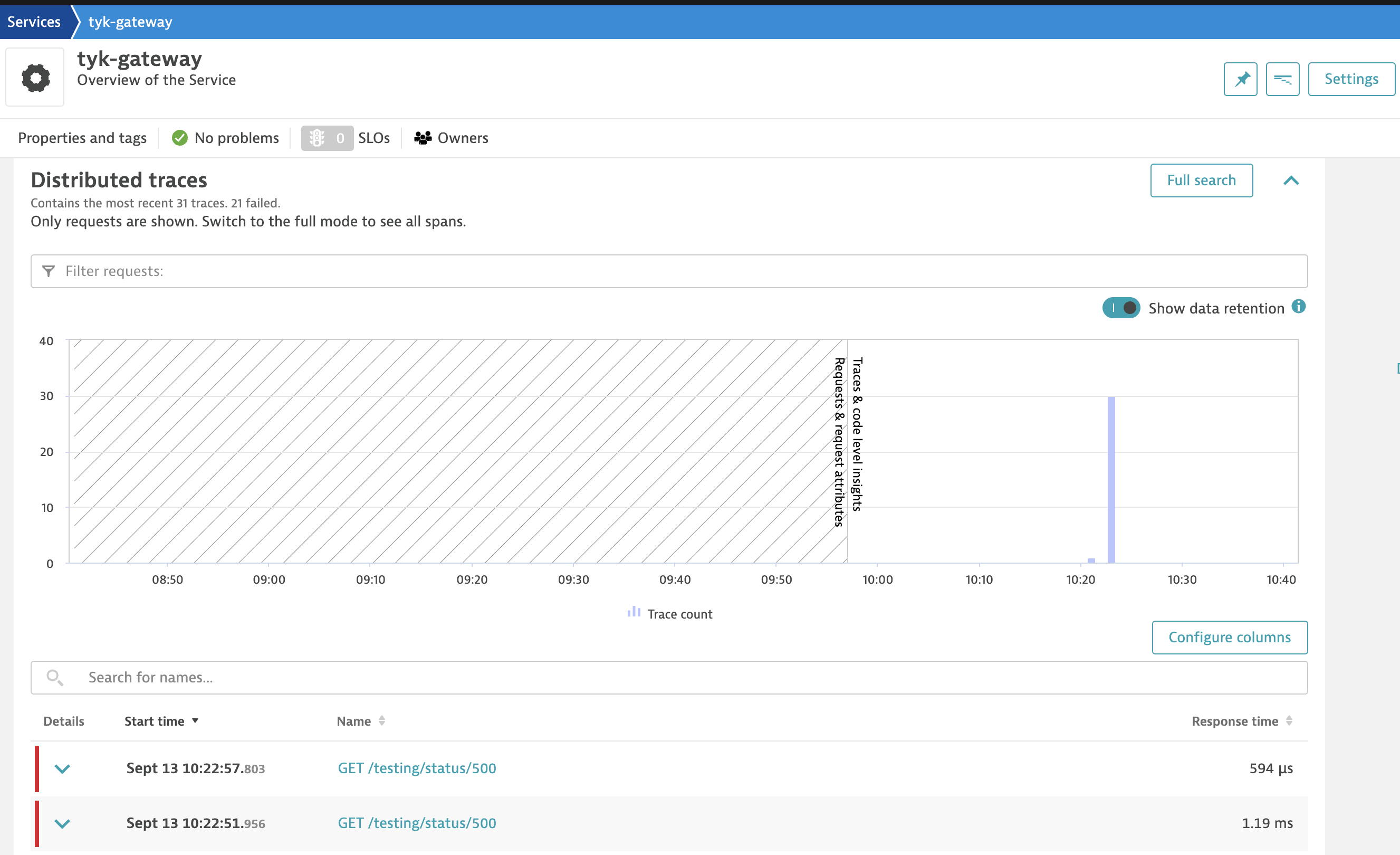

Testing and Viewing Traces 1. Launch the Docker containers: docker-compose up -d 2. Initialize your Tyk environment. 3. Configure a basic HTTP API on the Tyk Gateway or Dashboard. 4. Use cURL or Postman to send requests to the API gateway. 5. Navigate to Dynatrace -> Services -> Tyk-Gateway. 6. Wait for 5 minutes and refresh. 7. Traces, along with graphs, should appear. If they don’t, click on the “Full Search” button.
Troubleshooting
- If traces are not appearing, try clicking on the “Full Search” button after waiting for 5 minutes. Make sure your Dynatrace token is correct in the configuration files.
- Validate the Docker Compose setup by checking the logs for any errors: docker-compose logs

And there you have it! You’ve successfully integrated Dynatrace with the OpenTelemetry Collector using Docker.

Elasticsearch

This quick start explains how to configure Tyk API Gateway (OSS, self-managed or hybrid gateway connected to Tyk Cloud) with the OpenTelemetry Collector to export distributed traces to Elasticsearch.

Prerequisites

Ensure the following prerequisites are met before proceeding:

Tyk Gateway v5.2 or higher
OpenTelemetry Collector deployed locally
Elasticsearch deployed locally or an account on Elastic Cloud with Elastic APM

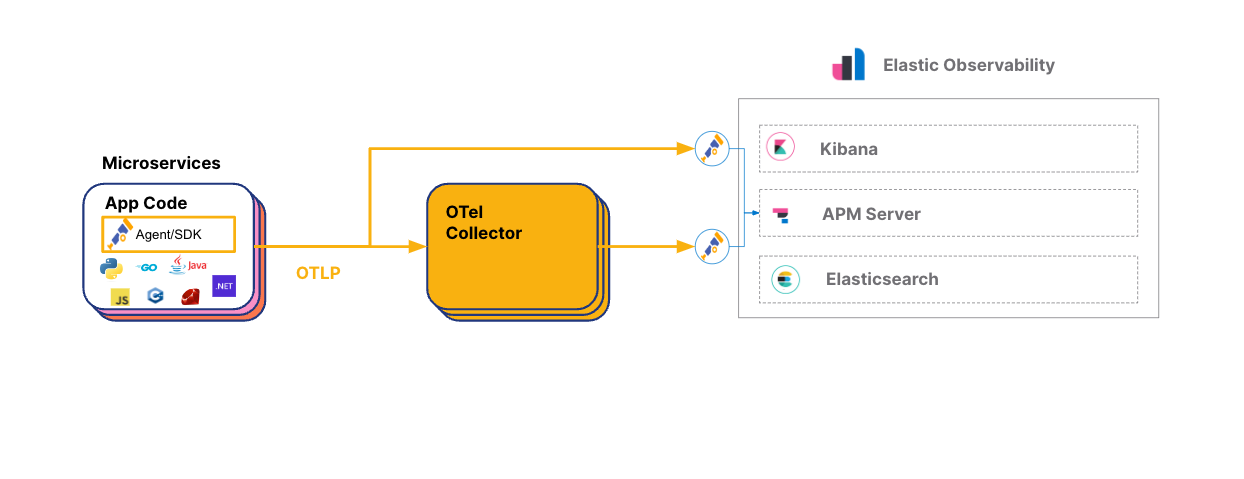

Elastic Observability natively supports OpenTelemetry and its OpenTelemetry protocol (OTLP) to ingest traces, metrics, and logs.

Credit: Elasticsearch, OpenTelemetry on Elastic

Steps for Configuration

Configure Tyk API Gateway To enable OpenTelemetry in Tyk API Gateway, follow these steps: For Tyk Helm Charts:
- Add the following configuration to the Tyk Gateway section:
```
tyk-gateway:
gateway:
    opentelemetry:
    enabled: true
    endpoint: {{Add your endpoint here}}
    exporter: grpc
```
For Docker Compose:
- In your docker-compose.yml file for Tyk Gateway, add the following environment variables:
```
environment:
- TYK_GW_OPENTELEMETRY_ENABLED=true
- TYK_GW_OPENTELEMETRY_EXPORTER=grpc
- TYK_GW_OPENTELEMETRY_ENDPOINT={{Add your endpoint here}}
```
Make sure to replace <Add your endpoint here> with the appropriate endpoint from your OpenTelemetry collector. After enabling OpenTelemetry at the Gateway level, you can activate detailed tracing for specific APIs by editing their respective API definitions. Set the detailed_tracing option to either true or false. By default, this setting is false.
Configure the OpenTelemetry Collector to Export to Elasticsearch To configure the OTel Collector with Elasticsearch Cloud, follow these steps:
- Sign up for an Elastic account if you haven’t already

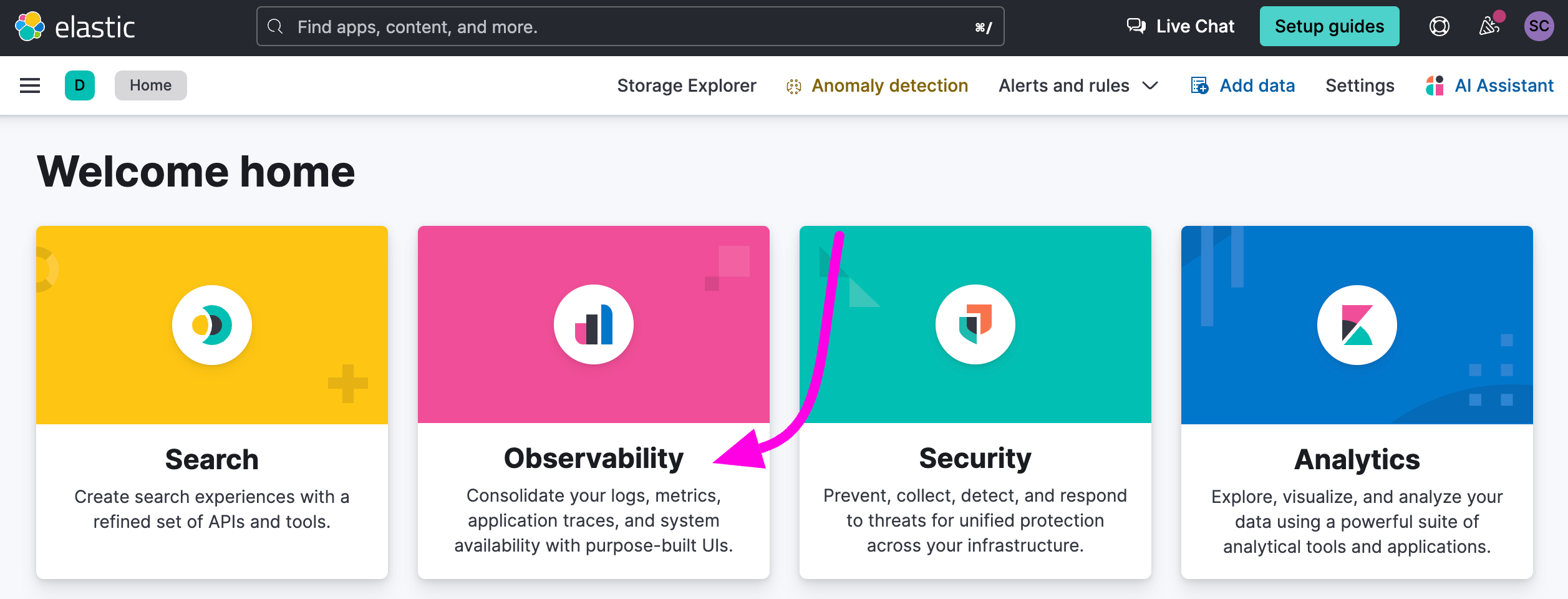

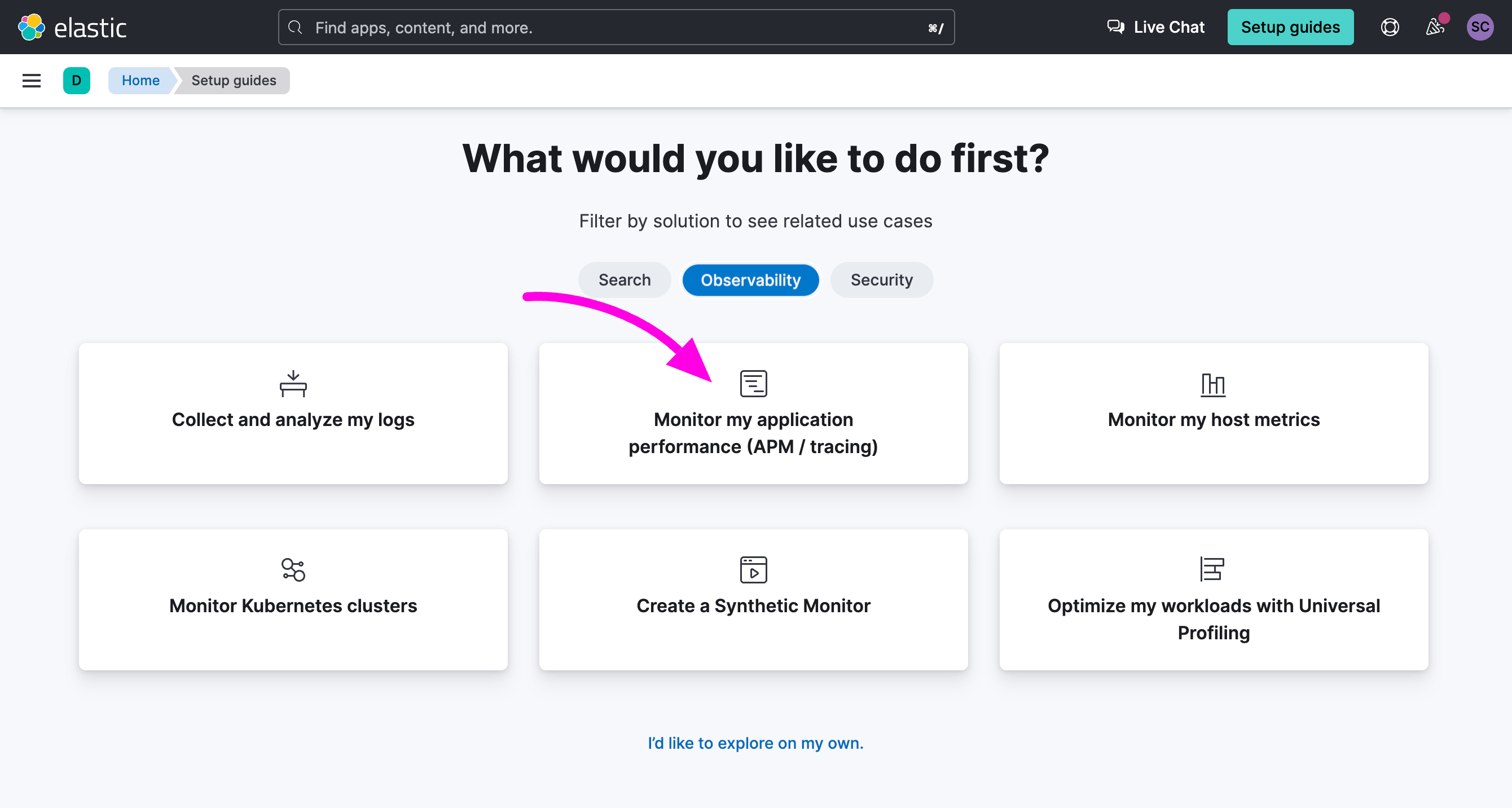

- Once logged in to your Elastic account, select “Observability” and click on the option “Monitor my application performance”

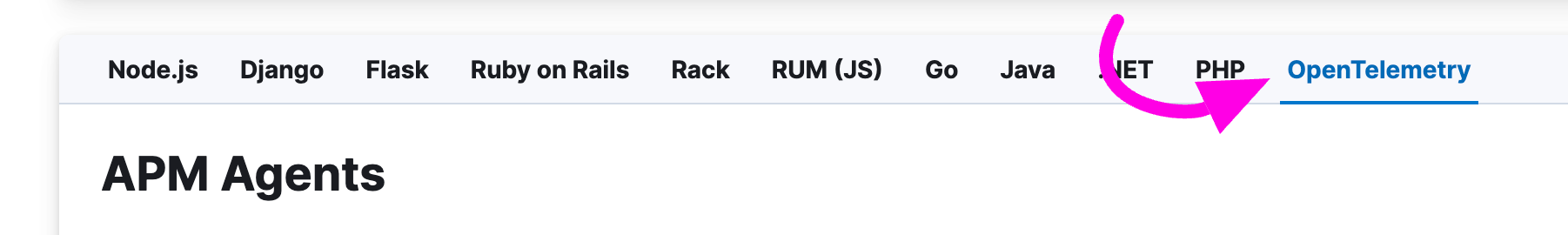

- Scroll down to the APM Agents section and click on the OpenTelemetry tab

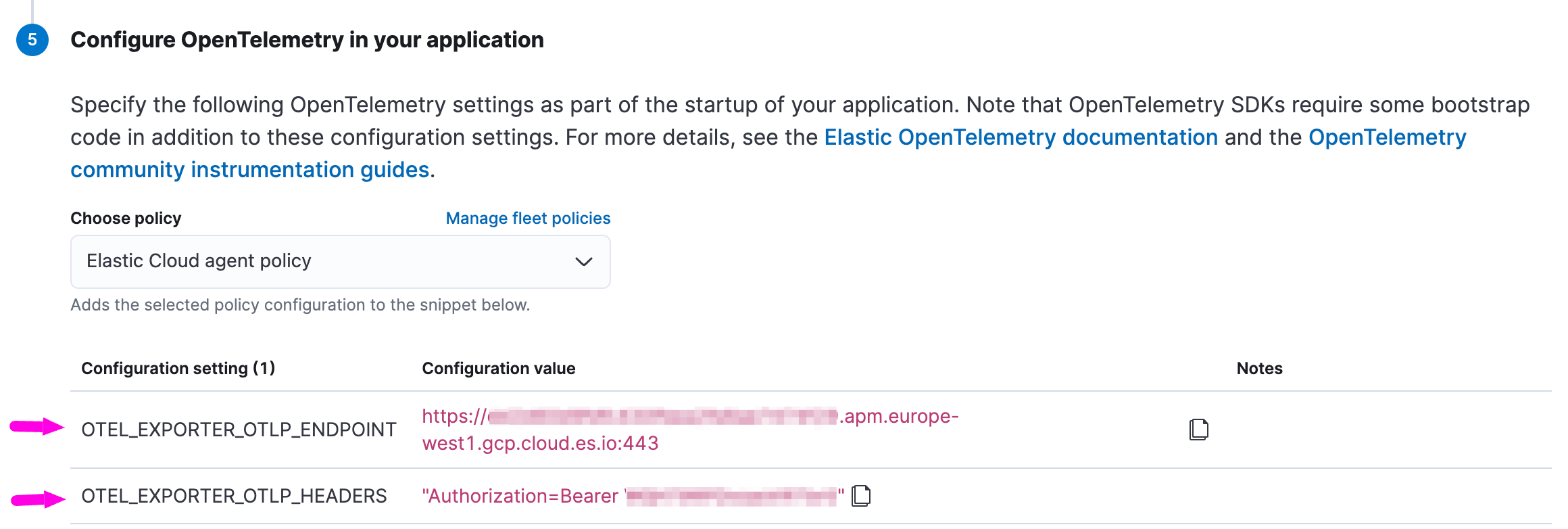

- Search for the section “Configure OpenTelemetry in your application”. You will need to copy the value of “OTEL_EXPORTER_OTLP_ENDPOINT” and “OTEL_EXPORTER_OTLP_HEADERS” in your OpenTelemetry Collector configuration file.
- Update your OpenTelemetry Collector configuration, here’s a simple example:
```
receivers:
otlp:
    protocols:
    grpc:
        endpoint: 0.0.0.0:4317 # OpenTelemetry receiver endpoint
processors:
batch:
exporters:
otlp/elastic:
    endpoint: "ELASTIC_APM_SERVER_ENDPOINT_GOES_HERE" #exclude scheme, e.g. HTTPS:// or HTTP://
    headers:
    # Elastic APM Server secret token
    Authorization: "Bearer ELASTIC_APM_SECRET_TOKEN_GOES_HERE"
service:
pipelines:
    traces:
    receivers: [otlp]
    exporters: [otlp/elastic]
```
If are running Elasticsearch locally, you will need to use your APM Server endpoint (elastic-apm-server:8200) and set-up a secret token authorization in ElasticSearch. You can refer to the example configuration provided by Elastic for more guidance on the OpenTelemetry Collector configuration.
Explore OpenTelemetry Traces in Elasticsearch
- In Elasticsearch Cloud:
- Go to “Home” and select “Observability.”
- On the right menu, click on “APM / Services.”
- Click on “tyk-gateway.”

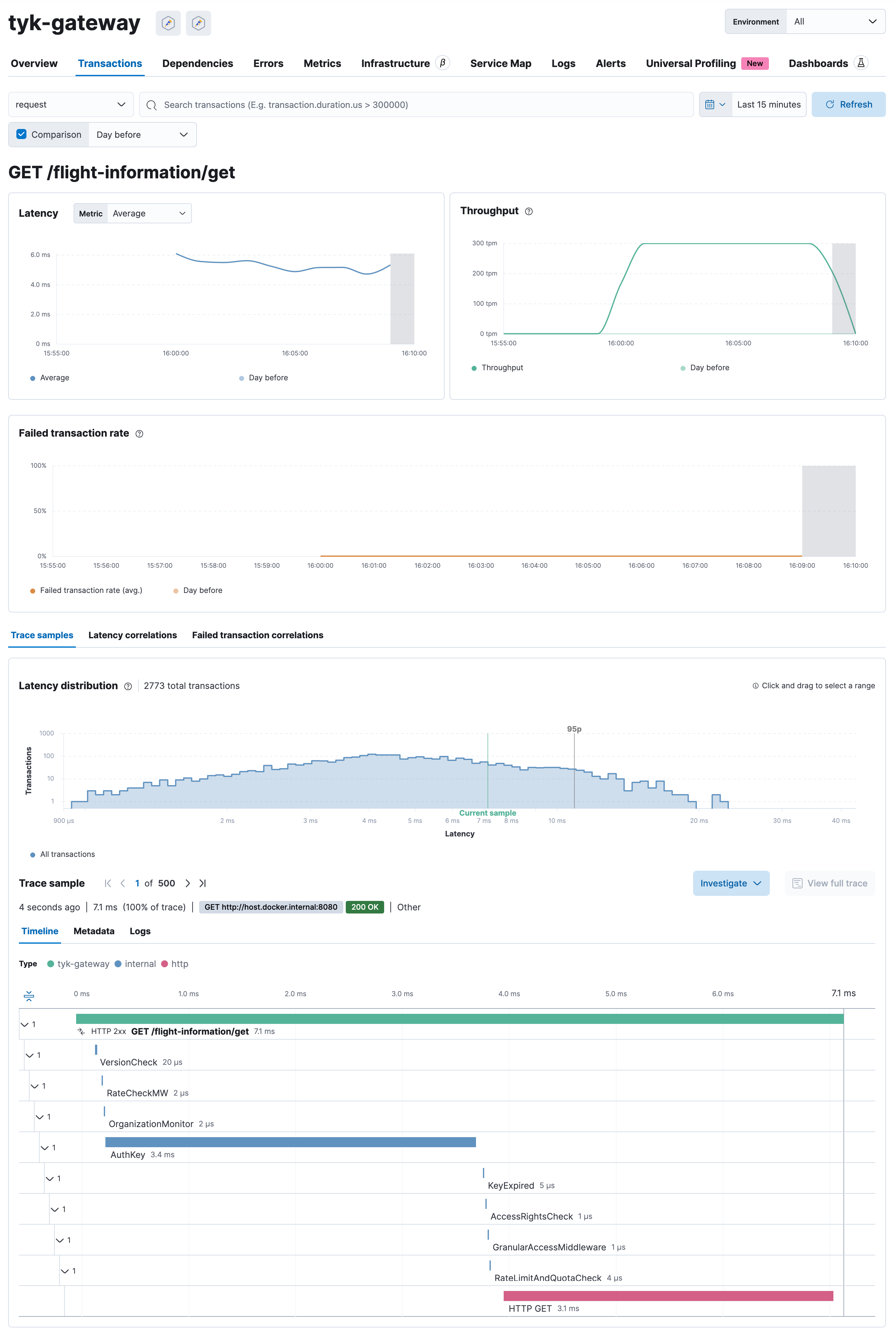

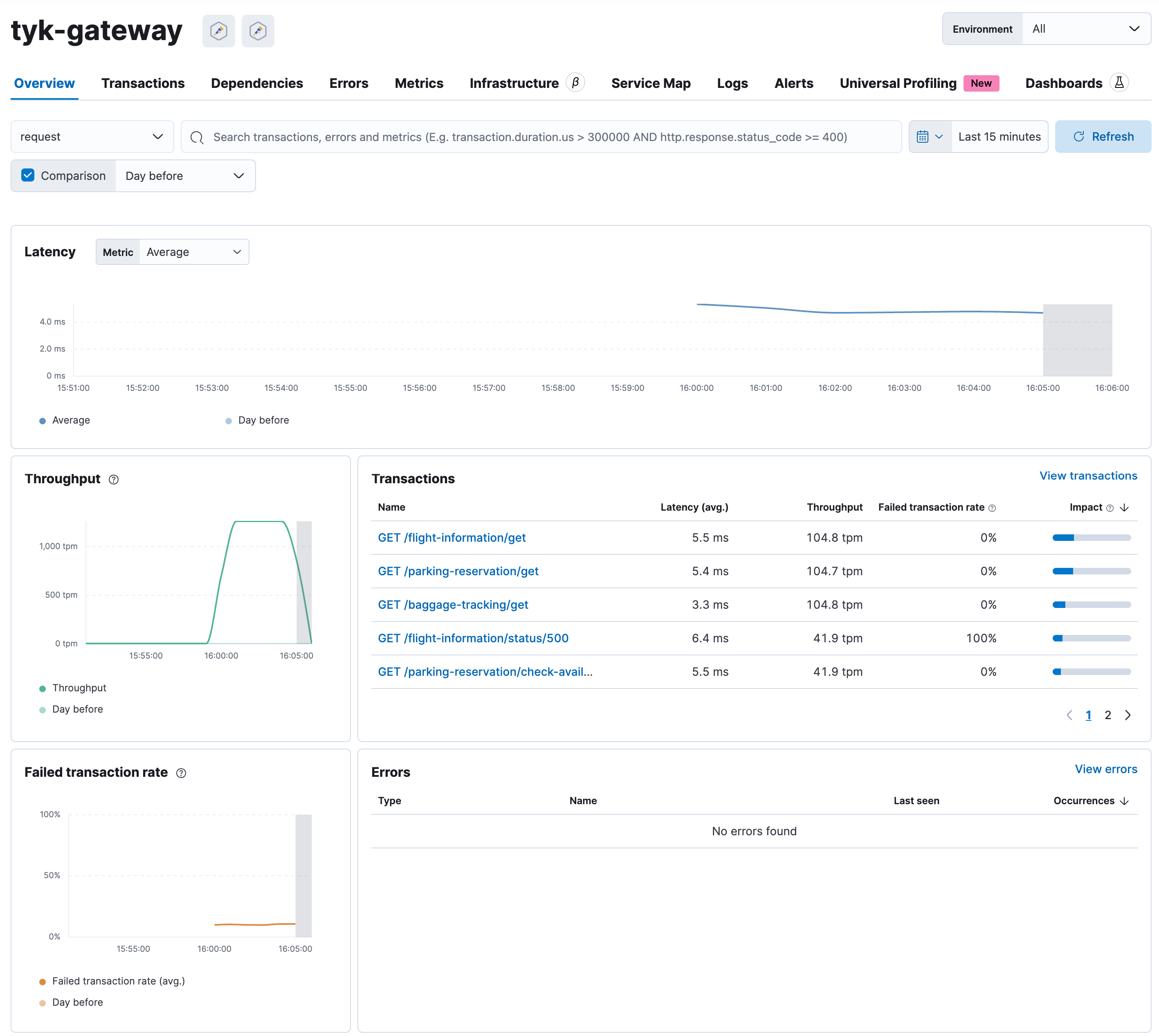

You will see a dashboard automatically generated based on the distributed traces sent by Tyk API Gateway to Elasticsearch. Select a transaction to view more details, including the distributed traces:

New Relic

This guide provides a step-by-step procedure to integrate New Relic with Tyk Gateway via the OpenTelemetry Collector. At the end of this guide, you will be able to visualize traces and metrics from your Tyk Gateway on the New Relic console.

Prerequisites

Docker installed on your machine
New Relic Account
New Relic API Key
Gateway v5.2.0 or higher
OTel Collector docker image

Steps for Configuration

Obtain New Relic API Key
1. Navigate to your New Relic Console.
2. Go to Profile → API keys.
3. Copy the key labeled as INGEST-LICENSE.
You can follow the official New Relic documentation for more information.
Example token:
```
93qwr27e49e168d3844c5h3d1e878a463f24NZJL
```

Configuration Files OTel Collector Configuration YAML

Create a file named otel-collector-config.yml under the configs directory.
Copy the following template into that file:

receivers:
otlp:
    protocols:
    http:
        endpoint: 0.0.0.0:4318
    grpc:
        endpoint: 0.0.0.0:4317
processors:
batch:
exporters:
otlphttp:
    endpoint: "<YOUR-ENVIRONMENT-STRING>"
    headers:
    api-Key: "<YOUR-NEW-RELIC-API-KEY>"
extensions:
health_check:
pprof:
    endpoint: :1888
zpages:
    endpoint: :55679
service:
extensions: [pprof, zpages, health_check]
pipelines:
    traces:
    receivers: [otlp]
    processors: [batch]
    exporters: [otlphttp]

Replace <YOUR-ENVIRONMENT-STRING> with your specific New Relic endpoint (https://otlp.nr-data.net for US or https://otlp.eu01.nr-data.net for EU).
Replace <YOUR-NEW-RELIC-API-KEY> with the API key obtained in Step 1.

Docker Compose configuration

Create a file named docker-compose.yml at the root level of your project directory.
Paste the following code into that file:

version: "3.9"
services:
otel-collector:
    image: otel/opentelemetry-collector:latest
    volumes:
    - ./otel-collector-config.yml:/etc/otel-collector.yml
    command: ["--config=/etc/otel-collector.yml"]
    networks:
    - tyk
    ports:
    - "1888:1888" # pprof extension
    - "13133:13133" # health_check extension
    - "4317:4317" # OTLP gRPC receiver
    - "4318:4318" # OTLP http receiver
    - "55670:55679" # zpages extension

networks:
tyk:

Replace the variable fields with the relevant data.

Testing and Verifying Traces
1. Run docker-compose up -d to start all services.
2. Initialize your Tyk environment.
3. Create a simple httpbin API using Tyk Dashboard. You can follow the Tyk Dashboard documentation for more information.
4. Send requests to the API using cURL or Postman.
5. Open New Relic Console.

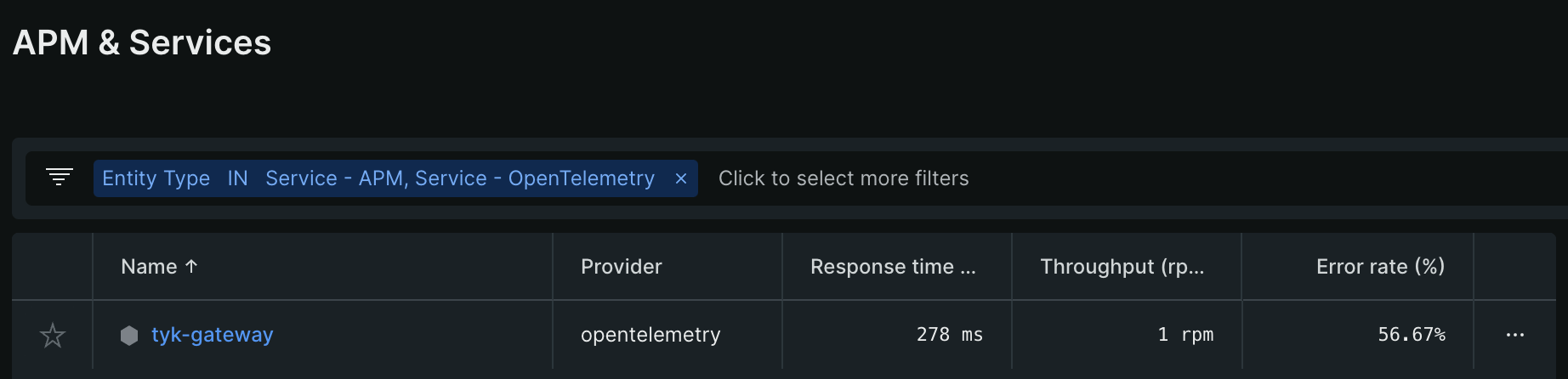

6. Navigate to APM & Services → Services - OpenTelemetry → tyk-gateway.
1. Wait for about 5 minutes for the data to populate.
Traces and graphs should now be visible on your New Relic console.

If traces are not showing, try refreshing the New Relic dashboard.

Troubleshooting

If the traces aren’t appearing, double-check your API key and endpoints.
Ensure that your Tyk Gateway and New Relic are both running and connected.

Conclusion

You have successfully integrated New Relic with Tyk Gateway via the OpenTelemetry Collector. You can now monitor and trace your APIs directly from the New Relic console.

Jaeger

Using Docker

This quick start guide offers a detailed, step-by-step walkthrough for configuring Tyk API Gateway (OSS, self-managed or hybrid gateway connected to Tyk Cloud) with OpenTelemetry and Jaeger to significantly improve API observability. We will cover the installation of essential components, their configuration, and the process of ensuring seamless integration. For Kubernetes instructions, please refer to How to integrate with Jaeger on Kubernetes.

Prerequisites

Ensure the following prerequisites are met before proceeding:

Docker installed on your machine
Gateway v5.2.0 or higher

Steps for Configuration

Create the Docker-Compose File for Jaeger Save the following YAML configuration in a file named docker-compose.yml:
```
version: "2"
services:
# Jaeger: Distributed Tracing System
jaeger-all-in-one:
    image: jaegertracing/all-in-one:latest
    ports:
    - "16686:16686" # Jaeger UI
    - "4317:4317" # OTLP receiver
```
This configuration sets up Jaeger’s all-in-one instance with ports exposed for Jaeger UI and the OTLP receiver.

Deploy a Test API Definition If you haven’t configured any APIs yet, follow these steps:

Create a subdirectory named apps in the current directory.
Create a new file named apidef-hello-world.json.
Copy the provided simple API definition below into the apidef-hello-world.json file:

{
    "name": "Hello-World",
    "slug": "hello-world",
    "api_id": "Hello-World",
    "org_id": "1",
    "use_keyless": true,
    "detailed_tracing": true,
    "version_data": {
    "not_versioned": true,
    "versions": {
        "Default": {
        "name": "Default",
        "use_extended_paths": true
        }
    }
    },
    "proxy": {
    "listen_path": "/hello-world/",
    "target_url": "http://httpbin.org/",
    "strip_listen_path": true
    },
    "active": true
}

This API definition sets up a basic API named Hello-World for testing purposes, configured to proxy requests to http://httpbin.org/.

Run Tyk Gateway OSS with OpenTelemetry Enabled To run Tyk Gateway with OpenTelemetry integration, extend the previous Docker Compose file to include Tyk Gateway and Redis services. Follow these steps:

Add the following configuration to your existing docker-compose.yml file:

# ... Existing docker-compose.yml content for jaeger

tyk:
image: tykio/tyk-gateway:v5.2.0
ports:
    - 8080:8080
environment:
    - TYK_GW_OPENTELEMETRY_ENABLED=true
    - TYK_GW_OPENTELEMETRY_EXPORTER=grpc
    - TYK_GW_OPENTELEMETRY_ENDPOINT=jaeger-all-in-one:4317
volumes:
    - ${TYK_APPS:-./apps}:/opt/tyk-gateway/apps
depends_on:
    - redis

redis:
image: redis:4.0-alpine
ports:
    - 6379:6379
command: redis-server --appendonly yes

Navigate to the directory containing the docker-compose.yml file in your terminal.
Execute the following command to start the services:

docker compose up

Explore OpenTelemetry Traces in Jaeger
- Start by sending a few requests to the API endpoint configured in Step 2:
```
curl http://localhost:8080/hello-world/ -i
```
- Access Jaeger at http://localhost:16686.
- In Jaeger’s interface:
- Select the service named tyk-gateway.
- Click the Find Traces button.
You should observe traces generated by Tyk Gateway, showcasing the distributed tracing information. Select a trace to visualize its corresponding internal spans:

Using Kubernetes

This quick start guide offers a detailed, step-by-step walkthrough for configuring Tyk Gateway OSS with OpenTelemetry and Jaeger on Kubernetes to significantly improve API observability. We will cover the installation of essential components, their configuration, and the process of ensuring seamless integration. For Docker instructions, please refer to How to integrate with Jaeger on Docker.

Prerequisites

Ensure the following prerequisites are in place before proceeding:

A functional Kubernetes cluster
kubectl and helm CLI tools installed

Steps for Configuration

Install Jaeger Operator For the purpose of this tutorial, we will use jaeger-all-in-one, which includes the Jaeger agent, collector, query, and UI in a single pod with in-memory storage. This deployment is intended for development, testing, and demo purposes. Other deployment patterns can be found in the Jaeger Operator documentation.
1. Install the cert-manager release manifest (required by Jaeger)
```
kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.13.2/cert-manager.yaml
```
1. Install Jaeger Operator.
```
kubectl create namespace observability
kubectl create -f https://github.com/jaegertracing/jaeger-operator/releases/download/v1.51.0/jaeger-operator.yaml -n observability
```
1. After the Jaeger Operator is deployed to the observability namespace, create a Jaeger instance:
```
kubectl apply -n observability -f - <<EOF
apiVersion: jaegertracing.io/v1
kind: Jaeger
metadata:
name: jaeger-all-in-one
EOF
```

Deploy Tyk Gateway with OpenTelemetry Enabled using Helm To install or upgrade Tyk Gateway OSS using Helm, execute the following commands:

NAMESPACE=tyk
APISecret=foo
TykVersion=v5.3.0
REDIS_BITNAMI_CHART_VERSION=19.0.2

helm upgrade tyk-redis oci://registry-1.docker.io/bitnamicharts/redis -n $NAMESPACE --create-namespace --install --version $REDIS_BITNAMI_CHART_VERSION
helm upgrade tyk-otel tyk-helm/tyk-oss -n $NAMESPACE --create-namespace \
--install \
--set global.secrets.APISecret="$APISecret" \
--set tyk-gateway.gateway.image.tag=$TykVersion \
--set global.redis.addrs="{tyk-redis-master.$NAMESPACE.svc.cluster.local:6379}" \
--set global.redis.pass="$(kubectl get secret --namespace $NAMESPACE tyk-redis -o jsonpath='{.data.redis-password}' | base64 -d)" \
--set tyk-gateway.gateway.opentelemetry.enabled=true \
--set tyk-gateway.gateway.opentelemetry.exporter="grpc" \
--set tyk-gateway.gateway.opentelemetry.endpoint="jaeger-all-in-one-collector.observability.svc:4317"

Please make sure you are installing Redis versions that are supported by Tyk. Please refer to Tyk docs to get list of supported versions.

Tyk Gateway is now accessible through service gateway-svc-tyk-oss-tyk-gateway at port 8080 and exports the OpenTelemetry traces to the jaeger-all-in-one-collector service.

Deploy Tyk Operator Deploy Tyk Operator to manage APIs in your cluster:

kubectl create namespace tyk-operator-system
kubectl create secret -n tyk-operator-system generic tyk-operator-conf \
--from-literal "TYK_AUTH=$APISecret" \
--from-literal "TYK_ORG=org" \
--from-literal "TYK_MODE=ce" \
--from-literal "TYK_URL=http://gateway-svc-tyk-otel-tyk-gateway.tyk.svc:8080" \
--from-literal "TYK_TLS_INSECURE_SKIP_VERIFY=true"
helm install tyk-operator tyk-helm/tyk-operator -n tyk-operator-system

Deploy a Test API Definition Save the following API definition as apidef-hello-world.yaml:
```
apiVersion: tyk.tyk.io/v1alpha1
kind: ApiDefinition
metadata:
name: hello-world
spec:
name: hello-world
use_keyless: true
protocol: http
active: true
proxy:
target_url: http://httpbin.org/
listen_path: /hello-world
strip_listen_path: true
```
To apply this API definition, run the following command:
```
kubectl apply -f apidef-hello-world.yaml
```
This step deploys an API definition named hello-world using the provided configuration. It enables a keyless HTTP API proxying requests to http://httpbin.org/ and accessible via the path /hello-world.
Explore OpenTelemetry traces in Jaeger You can use the kubectl port-forward command to access Tyk and Jaeger services running in the cluster from your local machine’s localhost: For Tyk API Gateway:
```
kubectl port-forward service/gateway-svc-tyk-otel-tyk-gateway 8080:8080 -n tyk
```
For Jaeger:
```
kubectl port-forward service/jaeger-all-in-one-query 16686 -n observability
```
Begin by sending a few requests to the API endpoint configured in step 2:
```
curl http://localhost:8080/hello-world/ -i
```
Next, navigate to Jaeger on http://localhost:16686, select the ´service´ called ´tyk-gateway´ and click on the button ´Find traces´. You should see traces generated by Tyk: Click on a trace to view all its internal spans:

OpenTracing (deprecated)

DeprecationThe CNCF (Cloud Native Foundation) has archived the OpenTracing project. This means that no new pull requests or feature requests are accepted into OpenTracing repositories.We introduced support for OpenTelemetry in Tyk v5.2. We recommend that users migrate to OpenTelemetry for better support of your tracing needs.OpenTracing is now deprecated in Tyk products.

OpenTracing tools with legacy Tyk integration

Enabling OpenTracing

OpenTracing can be configured at the Gateway level by adding the following configuration to your Gateway configuration (typically via the tyk.conf file or equivalent environment variables.

{
  "tracing": {
    "enabled": true,
    "name": "${tracer_name}",
    "options": {}
  }
}

Where:

name is the name of the supported tracer
enabled: set this to true to enable tracing
options: key/value pairs for configuring the enabled tracer. See the supported tracer documentation for more details.

Tyk will automatically propagate tracing headers to APIs when tracing is enabled.

Jaeger

Tyk’s OpenTelemetry Tracing works with Jaeger and we recommend following our guide to use OpenTelemetry with Jaeger rather than the following deprecated Open Tracing method.

Prior to Tyk 5.2, you cannot use OpenTelemetry and so must use OpenTracing with the Jaeger client libraries to send Tyk Gateway traces to Jaeger. Configuring Jaeger In tyk.conf on tracing setting

{
  "tracing": {
    "enabled": true,
    "name": "jaeger",
    "options": {}
  }
}

options are settings that are used to initialise the Jaeger client. For more details about the options see client libraries Sample configuration

{
  "tracing": {
    "enabled": true,
    "name": "jaeger",
    "options": {
      "baggage_restrictions": null,
      "disabled": false,
      "headers": null,
      "reporter": {
        "BufferFlushInterval": "0s",
        "collectorEndpoint": "",
        "localAgentHostPort": "jaeger:6831",
        "logSpans": true,
        "password": "",
        "queueSize": 0,
        "user": ""
      },
      "rpc_metrics": false,
      "sampler": {
        "maxOperations": 0,
        "param": 1,
        "samplingRefreshInterval": "0s",
        "samplingServerURL": "",
        "type": "const"
      },
      "serviceName": "tyk-gateway",
      "tags": null,
      "throttler": null
    }
  }
}

New Relic

Tyk’s OpenTelemetry Tracing works with New Relic and we recommend following our guide to use OpenTelemetry with New Relic rather than the following deprecated Open Tracing method.

Prior to Tyk 5.2, you cannot use OpenTelemetry and so must use OpenTracing to send Tyk Gateway traces to New Relic using the Zipkin format.
Configuring New Relic In tyk.conf under the tracing section

{
  "tracing": {
    "enabled": true,
    "name": "zipkin",
    "options": {}
  }
}

In the options setting you can set the initialisation of the Zipkin client. Sample configuration

{
  "tracing": {
    "enabled": true,
    "name": "zipkin",
    "options": {
      "reporter": {
        "url": "https://trace-api.newrelic.com/trace/v1?Api-Key=NEW_RELIC_LICENSE_KEY&Data-Format=zipkin&Data-Format-Version=2"
      }
    }
  }
}

reporter.url is the URL to the New Relic server, where trace data will be sent to.

Zipkin

Prior to Tyk 5.2, you cannot use OpenTelemetry and so must use OpenTracing with the Zipkin Go tracer to send Tyk Gateway traces to Zipkin. Configuring Zipkin In tyk.conf on tracing setting

{
  "tracing": {
    "enabled": true,
    "name": "zipkin",
    "options": {}
  }
}

options are settings that are used to initialise the Zipkin client. Sample configuration

{
  "tracing": {
    "enabled": true,
    "name": "zipkin",
    "options": {
      "reporter": {
        "url": "http:localhost:9411/api/v2/spans"
      }
    }
  }
}

reporter.url is the URL to the Zipkin server, where trace data will be sent.

Overview

Getting Started

Deploy Tyk

Managing APIs

Security in Tyk

Reference

Developer Support

​Introduction

​Logs

​Metrics

​Distributed Tracing

​Logging

​System Logs

​Log verbosity

​Log format (only available for the Gateway)

​Exporting Logs to Third-Party Tools

Sentry

Logstash

Graylog

Syslog

​API Traffic Logs

​When to use API Traffic Logging

​How API Traffic Logging Works

​Capturing Detailed Logs

Configure at API level

Configure at Key Level

Configure at Gateway Level

​Enabling API Request Access Logs in Tyk Gateway

Configuring output fields

Default log example

Custom template log example

Performance Considerations

​Aggregated analytics

Custom aggregation keys

Suppressing generation of aggregates for custom keys

​Metric Collection

​StatsD Instrumentation

​Configuring StatsD instrumentation

​StatsD Keys

​New Relic Instrumentation

​OpenTelemetry

​Using OpenTelemetry with Tyk

​Detailed Tracing

​Understanding The Traces

​Span Attributes

​Resource Attributes

​Service Attributes

​Common HTTP Span Attributes

​Advanced OpenTelemetry Capabilities

​Context Propagation

​Sampling Strategies

Sampling Type

Sampling Rate

ParentBased Sampling

​OpenTelemetry Backends for Tracing

​Datadog

Prerequisites

Steps for Configuration

Troubleshooting

​Dynatrace

Prerequisites

Steps for Configuration

​Elasticsearch

Prerequisites

Steps for Configuration

​New Relic

Prerequisites

Steps for Configuration

Troubleshooting

Conclusion

​Jaeger

Using Docker

Prerequisites

Steps for Configuration

Using Kubernetes

Prerequisites

Steps for Configuration

​OpenTracing (deprecated)

​OpenTracing tools with legacy Tyk integration

​Enabling OpenTracing

Introduction

Logs

Metrics

Distributed Tracing

Logging

System Logs

Log verbosity

Log format (only available for the Gateway)

Exporting Logs to Third-Party Tools

API Traffic Logs

When to use API Traffic Logging

How API Traffic Logging Works

Capturing Detailed Logs

Enabling API Request Access Logs in Tyk Gateway

Aggregated analytics

Metric Collection

StatsD Instrumentation

Configuring StatsD instrumentation

StatsD Keys

New Relic Instrumentation

OpenTelemetry

Using OpenTelemetry with Tyk

Detailed Tracing

Understanding The Traces

Span Attributes

Resource Attributes

Service Attributes

Common HTTP Span Attributes

Advanced OpenTelemetry Capabilities

Context Propagation

Sampling Strategies

OpenTelemetry Backends for Tracing

Datadog

Dynatrace

Elasticsearch

New Relic

Jaeger

OpenTracing (deprecated)

OpenTracing tools with legacy Tyk integration

Enabling OpenTracing

Jaeger

New Relic

Zipkin
