Custom Plugins Advance Configuration

CICD - Automating Your Plugin Builds

It’s very important to automate the deployment of your infrastructure. Ideally, you store your configurations and code in version control, and then through a trigger, have the ability to deploy everything automatically into higher environments. With custom plugins, this is no different. To illustrate this, we can look at the GitHub Actions of the example repo. We see that upon every pull request, a section of steps are taken to “Build, Bundle, Release Go Plugin”. Let’s break down the workflow file:

Compiling the Plugin

We can see the first few steps replicate our first task, bootstrapping the environment and compiling the plugin into a binary format.

 steps:
    - uses: actions/checkout@v3

    - name: Copy Env Files
      run: cp tyk/confs/tyk_analytics.env.example tyk/confs/tyk_analytics.env

    - name: Build Go Plugin
      run: make go-build

We can look at the Makefile to further break down the last go-build command.

Bundle The Plugin

The next step of the workflow is to “bundle” the plugin.

- name: Bundle Go Plugin
      run: docker-compose run --rm --user=1000 --entrypoint "bundle/bundle-entrypoint.sh" tyk-gateway

This command generates a “bundle” from the sample Go plugin in the repo.

For added security, please consider signing your bundles, especially if the connection between the Gateways and the Bundler server traverses the internet.

Custom plugins can be “bundled”, (zipped/compressed) into a standard format, and then uploaded to some server so that they can be downloaded by the Gateways in real time. This process allows us to decouple the building of our custom plugins from the runtime of the Gateways. In other words, Gateways can be scaled up and down, and pointed at different plugin repos very easily. This makes it easier to deploy Custom plugins especially in containerized environments such as Kubernetes, where we don’t have to worry about persistent volumes. You can read more about plugin bundles here.

Deploy The Plugin

Next step of the workflow is to publish our bundle to a server that’s reachable by the Gateways.

- name: Upload Bundle
      uses: actions/upload-artifact@v3
      with:
        name: customgoplugin.zip
        path: tyk/bundle/bundle.zip

    - uses: jakejarvis/s3-sync-action@master
      with:
        args: --acl public-read --follow-symlinks
      env:
        AWS_S3_BUCKET: ${{ secrets.AWS_S3_BUCKET }}
        AWS_ACCESS_KEY_ID: ${{ secrets.AWS_ACCESS_KEY_ID }}
        AWS_SECRET_ACCESS_KEY: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
        AWS_REGION: 'us-east-1'
        SOURCE_DIR: 'tyk/bundle'

This step uploads the Bundle to both GitHub and an AWS S3 bucket. Obviously, your workflow will look slightly different here.

For seamless deployments, take a look at multi-version plugin support to enable zero downtime deployments of your Tyk Gateway installs

Configure the Gateway

In order to instruct the Gateway to download the bundle, we need two things:

The root server - The server which all bundles will be downloaded from. This is set globally in the Tyk conf file here.
The name of the bundle - this is generated during your workflow usually. This is defined at the API level (this is where you declare Custom plugins, as evident in task 2)

The field of the API Definition that needs to be set is custom_middleware_bundle.

Summary

That’s it! We’ve set up our dev environment, built, compiled, a Custom Go plugin, loaded onto a Tyk Gateway, and tested it by sending an API request. Finally, we’ve talked about deploying a Bundle in a production grade set up. Have a look at our examples repo for more inspiration.

Instrumenting Plugins with OpenTelemetry

By instrumenting your custom plugins with Tyk’s OpenTelemetry library, you can gain additional insights into custom plugin behavior like time spent and exit status. Read on to see some examples of creating span and setting attributes for your custom plugins.

Note: Although this documentation is centered around Go plugins, the outlined principles are universally applicable to plugins written in other languages. Ensuring proper instrumentation and enabling detailed tracing will integrate the custom plugin span into the trace, regardless of the underlying programming language.

Prerequisites

Go v1.19 or higher
Gateway instance with OpenTelemetry and DetailedTracing enabled:

Add this field within your Gateway config file:

{
  "opentelemetry": {
    "enabled": true
  }
}

And this field within your API definition:

{
  "detailed_tracing": true
}

You can find more information about enabling OpenTelemetry here.

DetailedTracing must be enabled in the API definition to see the plugin spans in the traces.

In order to instrument our plugins we will be using Tyk’s OpenTelemetry library implementation. You can import it by running the following command:

$ go get github.com/TykTechnologies/opentelemetry

In this case, we are using our own OpenTelemetry library for convenience. You can also use the Official OpenTelemetry Go SDK

Create a new span from the request context

trace.NewSpanFromContext() is a function that helps you create a new span from the current request context. When called, it returns two values: a fresh context with the newly created span embedded inside it, and the span itself. This method is particularly useful for tracing the execution of a piece of code within a web request, allowing you to measure and analyze its performance over time. The function takes three parameters:

Context: This is usually the current request’s context. However, you can also derive a new context from it, complete with timeouts and cancelations, to suit your specific needs.
TracerName: This is the identifier of the tracer that will be used to create the span. If you do not provide a name, the function will default to using the tyk tracer.
SpanName: This parameter is used to set an initial name for the child span that is created. This name can be helpful for later identifying and referencing the span.

Here’s an example of how you can use this function to create a new span from the current request context:

package main
import (
    "net/http"
    "github.com/TykTechnologies/opentelemetry/trace"
)
// AddFooBarHeader adds a custom header to the request.
func AddFooBarHeader(rw http.ResponseWriter, r *http.Request) {
    // We create a new span using the context from the incoming request.
    _, newSpan := trace.NewSpanFromContext(r.Context(), "", "GoPlugin_first-span")
    // Ensure that the span is properly ended when the function completes.
    defer newSpan.End()
    // Add a custom "Foo: Bar" header to the request.
    r.Header.Add("Foo", "Bar")
}
func main() {}

In your exporter (in this case, Jaeger) you should see something like this:

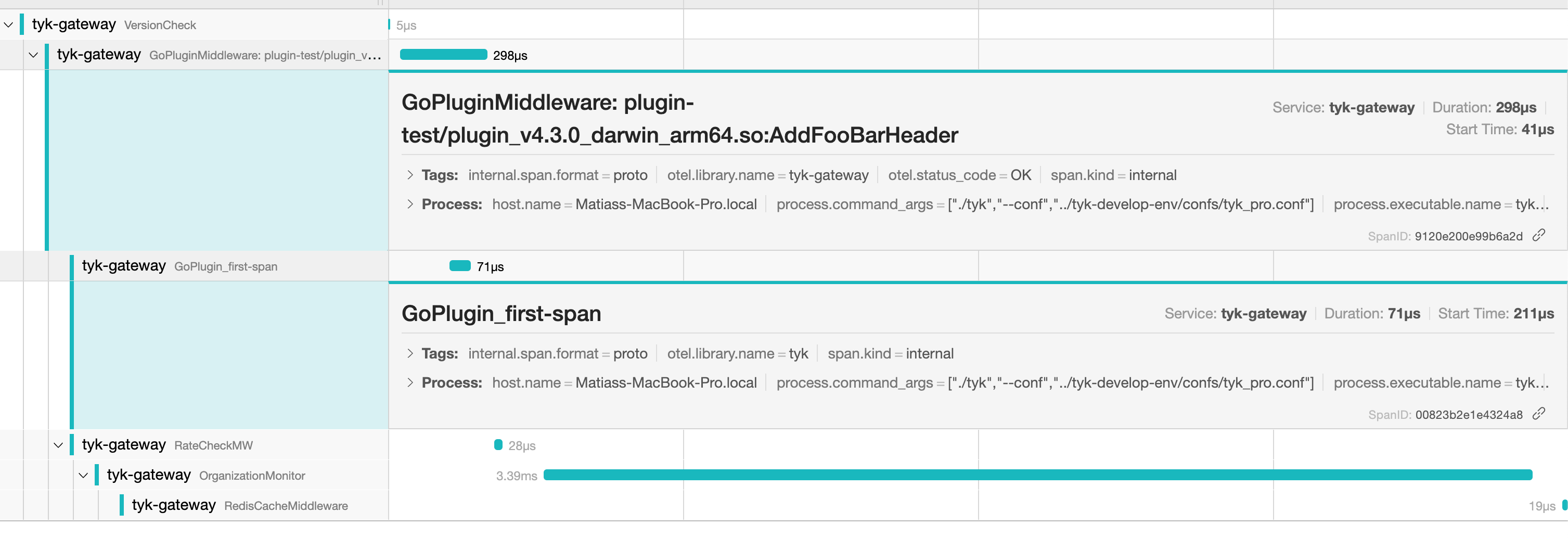

As you can see, the name we set is present: GoPlugin_first-span and it’s the first child of the GoPluginMiddleware span.

Modifying span name and set status

The span created using trace.NewSpanFromContext() can be further configured after its creation. You can modify its name and set its status:

func AddFooBarHeader(rw http.ResponseWriter, r *http.Request) {
	_, newSpan := trace.NewSpanFromContext(r.Context(), "", "GoPlugin_first-span")
	defer newSpan.End()

	// Set a new name for the span.
	newSpan.SetName("AddFooBarHeader Testing")

	// Set the status of the span.
	newSpan.SetStatus(trace.SPAN_STATUS_OK, "")

	r.Header.Add("Foo", "Bar")
}

This updated span will then appear in the traces as AddFooBarHeader Testing with an OK Status. The second parameter of the SetStatus method can accept a description parameter that is valid for ERROR statuses. The available span statuses in ascending hierarchical order are:

SPAN_STATUS_UNSET
SPAN_STATUS_ERROR
SPAN_STATUS_OK

This order is important: a span with an OK status cannot be overridden with an ERROR status. However, the reverse is possible - a span initially marked as UNSET or ERROR can later be updated to OK.

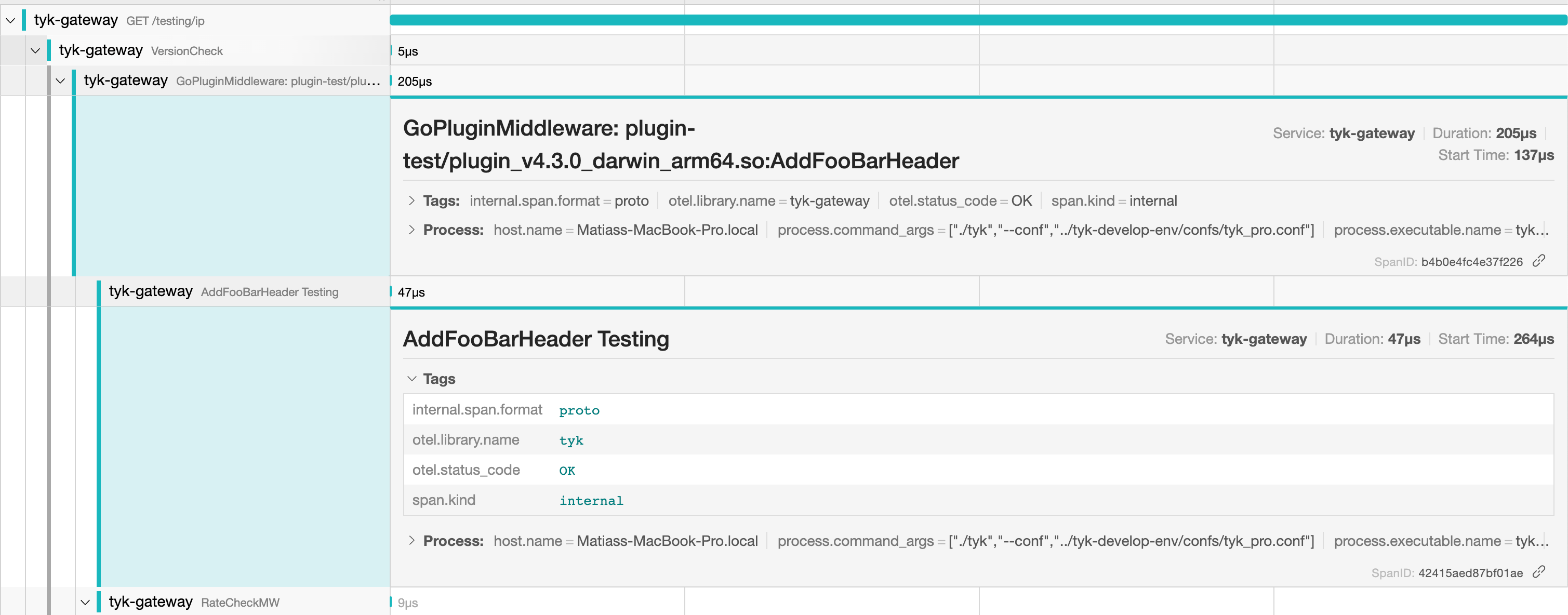

Now we can see the new name and the otel.status_code tag with the OK status.

Setting attributes

The SetAttributes() function allows you to set attributes on your spans, enriching each trace with additional, context-specific information. The following example illustrates this functionality using the OpenTelemetry library’s implementation by Tyk

func AddFooBarHeader(rw http.ResponseWriter, r *http.Request) {
	_, newSpan := trace.NewSpanFromContext(r.Context(), "", "GoPlugin_first-span")
	defer newSpan.End()

    // Set an attribute on the span.
	newSpan.SetAttributes(trace.NewAttribute("go_plugin", "1"))

	r.Header.Add("Foo", "Bar")
}

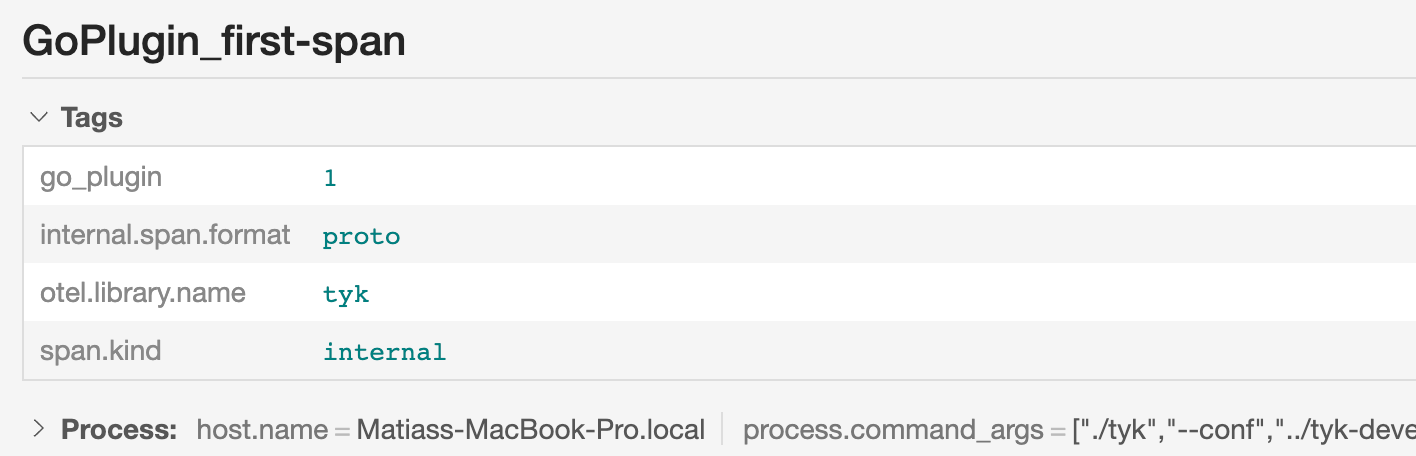

In the above code snippet, we set an attribute go_plugin with a value of 1 on the span. This is just a demonstration; in practice, you might want to set attributes that carry meaningful data relevant to your tracing needs. Attributes are key-value pairs. The value isn’t restricted to string data types; it can be any value, including numerical, boolean, or even complex data types, depending on your requirements. This provides flexibility and allows you to include rich, structured data within your spans. The illustration below, shows how the go_plugin attribute looks in Jaeger:

Multiple functions = Multiple spans

To effectively trace the execution of your plugin, you can create additional spans for each function execution. By using context propagation, you can link these spans, creating a detailed trace that covers multiple function calls. This allows you to better understand the sequence of operations, pinpoint performance bottlenecks, and analyze application behavior. Here’s how you can implement it:

func AddFooBarHeader(rw http.ResponseWriter, r *http.Request) {
	// Start a new span for this function.
	ctx, newSpan := trace.NewSpanFromContext(r.Context(), "", "GoPlugin_first-span")
	defer newSpan.End()

	// Set an attribute on this span.
	newSpan.SetAttributes(trace.NewAttribute("go_plugin", "1"))

	// Call another function, passing in the context (which includes the new span).
	NewFunc(ctx)

	// Add a custom "Foo: Bar" header to the request.
	r.Header.Add("Foo", "Bar")
}

func NewFunc(ctx context.Context) {
	// Start a new span for this function, using the context passed from the calling function.
	_, newSpan := trace.NewSpanFromContext(ctx, "", "GoPlugin_second-span")
	defer newSpan.End()

	// Simulate some processing time.
	time.Sleep(1 * time.Second)

	// Set an attribute on this span.
	newSpan.SetAttributes(trace.NewAttribute("go_plugin", "2"))
}

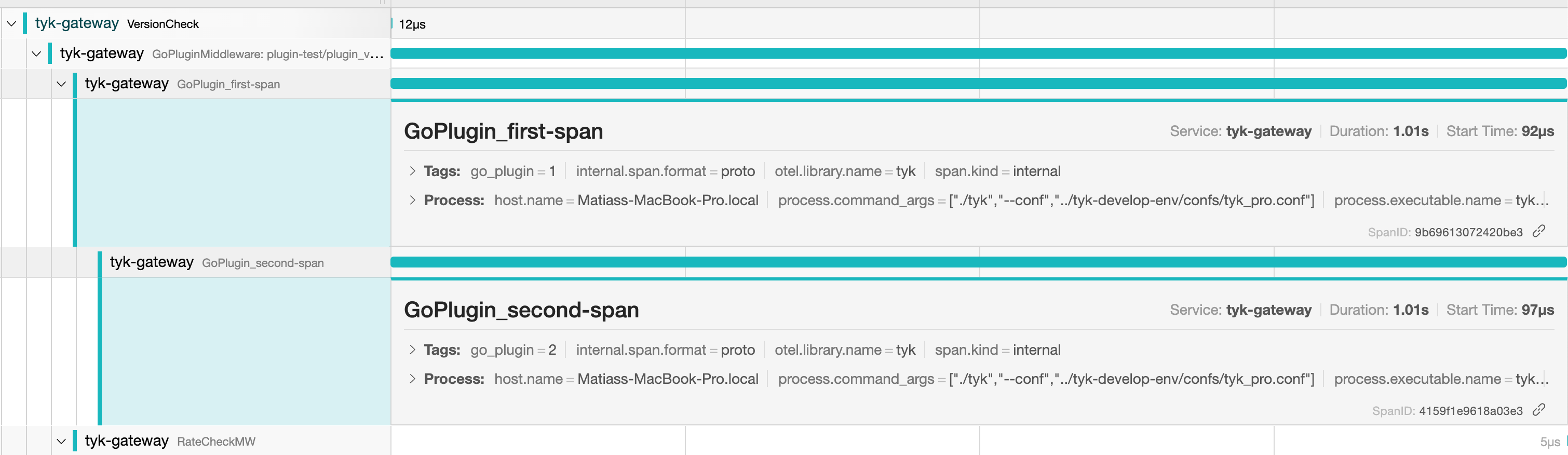

In this example, the AddFooBarHeader function creates a span and then calls NewFunc, passing the updated context. The NewFunc function starts a new span of its own, linked to the original through the context. It also simulates some processing time by sleeping for 1 second, then sets a new attribute on the second span. In a real-world scenario, the NewFunc would contain actual code logic to be executed. The illustration below, shows how this new child looks in Jaeger:

Error handling

In OpenTelemetry, it’s essential to understand the distinction between recording an error and setting the span status to error. The RecordError() function records an error as an exception span event. However, this alone doesn’t change the span’s status to error. To mark the span as error, you need to make an additional call to the SetStatus() function.

RecordError will record err as an exception span event for this span. An additional call to SetStatus is required if the Status of the Span should be set to Error, as this method does not change the Span status. If this span is not being recorded or err is nil then this method does nothing.

Here’s an illustrative example with function calls generating a new span, setting attributes, setting an error status, and recording an error:

func AddFooBarHeader(rw http.ResponseWriter, r *http.Request) {
	// Create a new span for this function.
	ctx, newSpan := trace.NewSpanFromContext(r.Context(), "", "GoPlugin_first-span")
	defer newSpan.End()

	// Set an attribute on the new span.
	newSpan.SetAttributes(trace.NewAttribute("go_plugin", "1"))

	// Call another function, passing in the updated context.
	NewFunc(ctx)

	// Add a custom header "Foo: Bar" to the request.
	r.Header.Add("Foo", "Bar")
}

func NewFunc(ctx context.Context) {
	// Create a new span using the context passed from the previous function.
	ctx, newSpan := trace.NewSpanFromContext(ctx, "", "GoPlugin_second-span")
	defer newSpan.End()

	// Simulate some processing time.
	time.Sleep(1 * time.Second)

	// Set an attribute on the new span.
	newSpan.SetAttributes(trace.NewAttribute("go_plugin", "2"))

	// Call a function that will record an error and set the span status to error.
	NewFuncWithError(ctx)
}

func NewFuncWithError(ctx context.Context) {
	// Start a new span using the context passed from the previous function.
	_, newSpan := trace.NewSpanFromContext(ctx, "", "GoPlugin_third-span")
	defer newSpan.End()

	// Set status to error.
	newSpan.SetStatus(trace.SPAN_STATUS_ERROR, "Error Description")

	// Set an attribute on the new span.
	newSpan.SetAttributes(trace.NewAttribute("go_plugin", "3"))

	// Record an error in the span.
	newSpan.RecordError(errors.New("this is an auto-generated error"))
}

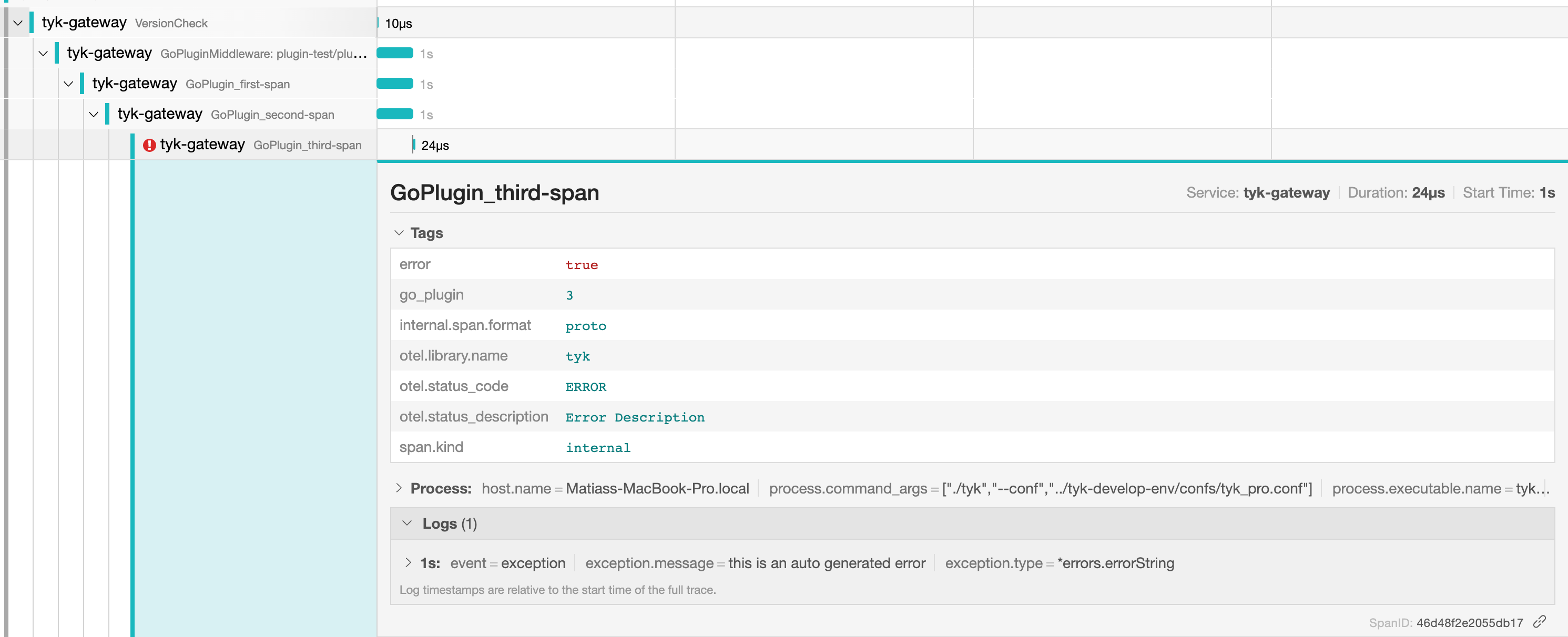

In the above code, the NewFuncWithError function demonstrates error handling in OpenTelemetry. First, it creates a new span. Then it sets the status to error, and adds an attribute. Finally, it uses RecordError() to log an error event. This two-step process ensures that both the error event is recorded and the span status is set to reflect the error.

Highly Available gRPC Servers in Kubernetes

When deploying gRPC servers to host rich plugins in Kubernetes, implementing proper health checks on those servers is crucial so that you can achieve high availability and enable seamless rolling updates. Kubernetes needs to know when your gRPC server is ready to accept traffic otherwise:

Traffic may be routed to pods that aren’t ready
Failed pods won’t be automatically restarted
Load balancing becomes unreliable
Rolling deployments can cause service disruption

When using gRPC plugins to implement custom processing of API requests, this is especially important since the Gateway depends on having reliable access to these services to process requests. If Tyk is unable to reach the gRPC server, then it will be unable to correctly execute the plugins hosted there, leading to API requests failing.

Key Benefits of Health Checks for Rolling Updates

Zero-Downtime Deployments

Readiness probes ensure new pods are fully ready before receiving traffic
Old pods continue serving until new ones are ready
Traffic is never routed to non-functional pods

Graceful Shutdown

SIGTERM triggers immediate graceful shutdown sequence
Health status changes to “not serving” during shutdown
gRPC server stops gracefully, finishing in-flight requests
30-second timeout ensures forced shutdown if graceful shutdown hangs

Failure Recovery

Liveness probes detect and restart unhealthy pods
Startup probes give adequate time for slow-starting services
Failed deployments are automatically rolled back

Using gRPC Health Probes with Tyk

Tyk’s native support for gRPC health probes is provided via the Health Checking service in the standard gRPC Go library and provides several benefits:

Native Integration: Uses the same transport protocol as your main service
Service-Specific Checks: Can check the health of individual gRPC services
Better Resource Utilization: No need for a separate HTTP server
Consistent Protocol: Maintains gRPC throughout the stack

gRPC Health Checking Protocol

The following example uses the gRPC Health Checking Protocol instead of HTTP endpoints.

Health Check Implementation Details

The gRPC health server manages two service states:

"" (empty string): Overall server health
"coprocess.Dispatcher": Specific service health for readiness checks

Health states transition as follows:

Startup: NOT_SERVING → SERVING (when ready)
Shutdown: SERVING → NOT_SERVING (immediate)
Error: SERVING → NOT_SERVING (on failure)

Example Implementation

Required Dependencies

You should add this to your go.mod:

require (
    google.golang.org/grpc v1.50.0 // or later
)

main.go Setup

package main

import (
	"context"
	"log"
	"net"
	"os"
	"os/signal"
	"sync/atomic"
	"syscall"
	"time"

	"github.com/TykTechnologies/tyk/coprocess"
	"google.golang.org/grpc"
	"google.golang.org/grpc/health"
	"google.golang.org/grpc/health/grpc_health_v1"
)

const (
	ListenAddress = ":50051"
)

func main() {
	// Track server readiness
	var isReady int32

	lis, err := net.Listen("tcp", ListenAddress)
	if err != nil {
		log.Fatalf("Failed to listen: %v", err)
	}

	log.Printf("starting grpc server on %v", ListenAddress)
	s := grpc.NewServer()

	// Register the main coprocess service
	coprocess.RegisterDispatcherServer(s, &Dispatcher{})

	// Register health service
	healthServer := health.NewServer()
	grpc_health_v1.RegisterHealthServer(s, healthServer)

	// Initially mark all services as not serving
	healthServer.SetServingStatus("", grpc_health_v1.HealthCheckResponse_NOT_SERVING)
	healthServer.SetServingStatus("coprocess.Dispatcher", grpc_health_v1.HealthCheckResponse_NOT_SERVING)

	// Channel to listen for errors coming from the listener.
	serverErrors := make(chan error, 1)

	// Start the service listening for requests.
	go func() {
		// Mark as ready once server is initialized
		atomic.StoreInt32(&isReady, 1)

		// Set health status to serving
		healthServer.SetServingStatus("", grpc_health_v1.HealthCheckResponse_SERVING)
		healthServer.SetServingStatus("coprocess.Dispatcher", grpc_health_v1.HealthCheckResponse_SERVING)

		log.Printf("gRPC server is ready to accept connections")
		serverErrors <- s.Serve(lis)
	}()

	// Channel to listen for an interrupt or terminate signal from the OS.
	shutdown := make(chan os.Signal, 1)
	signal.Notify(shutdown, os.Interrupt, syscall.SIGTERM)

	// Blocking main and waiting for shutdown.
	select {
	case err := <-serverErrors:
		atomic.StoreInt32(&isReady, 0)
		// Mark services as not serving
		healthServer.SetServingStatus("", grpc_health_v1.HealthCheckResponse_NOT_SERVING)
		healthServer.SetServingStatus("coprocess.Dispatcher", grpc_health_v1.HealthCheckResponse_NOT_SERVING)
		log.Fatalf("Server error: %v", err)
	case sig := <-shutdown:
		atomic.StoreInt32(&isReady, 0)
		log.Printf("Received signal: %v", sig)

		// Mark services as not serving during shutdown
		healthServer.SetServingStatus("", grpc_health_v1.HealthCheckResponse_NOT_SERVING)
		healthServer.SetServingStatus("coprocess.Dispatcher", grpc_health_v1.HealthCheckResponse_NOT_SERVING)

		// Give outstanding requests 5 seconds to complete.
		ctx, cancel := context.WithTimeout(context.Background(), 5*time.Second)
		defer cancel()

		stopped := make(chan struct{})
		go func() {
			s.GracefulStop()
			close(stopped)
		}()

		select {
		case <-ctx.Done():
			log.Printf("Graceful shutdown timed out")
			s.Stop()
		case <-stopped:
			log.Printf("Graceful shutdown completed")
		}
	}
}

Kubernetes Deployment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: tyk-grpc-coprocess
  labels:
    app: tyk-grpc-coprocess
spec:
  replicas: 3
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  selector:
    matchLabels:
      app: tyk-grpc-coprocess
  template:
    metadata:
      labels:
        app: tyk-grpc-coprocess
    spec:
      containers:
      - name: grpc-server
        image: your-registry/tyk-grpc-coprocess:latest
        ports:
        - containerPort: 50051
          name: grpc

        ## Readiness probe - determines when pod is ready for traffic
        readinessProbe:
          grpc:
            port: 50051
            service: coprocess.Dispatcher
          initialDelaySeconds: 5
          periodSeconds: 10
          timeoutSeconds: 5
          failureThreshold: 3
          successThreshold: 1

        ## Liveness probe - determines when to restart pod
        livenessProbe:
          grpc:
            port: 50051
          initialDelaySeconds: 15
          periodSeconds: 20
          timeoutSeconds: 5
          failureThreshold: 3

        ## Startup probe - gives more time for initial startup
        startupProbe:
          grpc:
            port: 50051
          initialDelaySeconds: 10
          periodSeconds: 5
          timeoutSeconds: 5
          failureThreshold: 30

---
apiVersion: v1
kind: Service
metadata:
  name: tyk-grpc-coprocess-service
spec:
  selector:
    app: tyk-grpc-coprocess
  ports:
  - name: grpc
    port: 50051
    targetPort: 50051
    protocol: TCP
  type: ClusterIP

Overview

Getting Started

Deploy Tyk

Managing APIs

Security in Tyk

Reference

Developer Support

Custom Plugins Advance Configuration

CICD - Automating Your Plugin Builds

Compiling the Plugin

Bundle The Plugin

Deploy The Plugin

Configure the Gateway

Summary

Instrumenting Plugins with OpenTelemetry

Prerequisites

Create a new span from the request context

Modifying span name and set status

Setting attributes

Multiple functions = Multiple spans

Error handling

Highly Available gRPC Servers in Kubernetes

Key Benefits of Health Checks for Rolling Updates

Using gRPC Health Probes with Tyk

gRPC Health Checking Protocol

Health Check Implementation Details

Example Implementation

Required Dependencies

main.go Setup

Kubernetes Deployment

Overview

Getting Started

Deploy Tyk

Managing APIs

Security in Tyk

Reference

Developer Support

​CICD - Automating Your Plugin Builds

​Compiling the Plugin

​Bundle The Plugin

​Deploy The Plugin

​Configure the Gateway

​Summary

​Instrumenting Plugins with OpenTelemetry

​Prerequisites

​Create a new span from the request context

​Modifying span name and set status

​Setting attributes

​Multiple functions = Multiple spans

​Error handling

​Highly Available gRPC Servers in Kubernetes

​Key Benefits of Health Checks for Rolling Updates

​Using gRPC Health Probes with Tyk

​gRPC Health Checking Protocol

​Health Check Implementation Details

​Example Implementation

Required Dependencies

main.go Setup

Kubernetes Deployment

CICD - Automating Your Plugin Builds

Compiling the Plugin

Bundle The Plugin

Deploy The Plugin

Configure the Gateway

Summary

Instrumenting Plugins with OpenTelemetry

Prerequisites

Create a new span from the request context

Modifying span name and set status

Setting attributes

Multiple functions = Multiple spans

Error handling

Highly Available gRPC Servers in Kubernetes

Key Benefits of Health Checks for Rolling Updates

Using gRPC Health Probes with Tyk

gRPC Health Checking Protocol

Health Check Implementation Details

Example Implementation
