Set up the Developer Portal

Introduction

Once you have installed your Developer Portal, you’ll need to connect it to a Provider (Tyk Dashboard) so that it can synchronise API Products and Subscription Plans to appear in your Catalog. You can use a single Developer Portal to publish Catalogs from multiple Providers. In this section we’ll take you through the steps to connect to a single Tyk Dashboard installation.

Registering the Developer Portal with Tyk Dashboard

Tyk Dashboard exposes a management API with a user management system that performs fine-grained Role Based Access Control (RBAC). The Developer Portal uses this API to configure and control security policies on the Dashboard. These policies implement the Developer Portal’s API Products and Plans, and are used in the creation and maintenance of access credentials for API Consumers.

The Developer Portal thus needs access to the Tyk Dashboard API, so you will need to create a dedicated user on your Tyk Dashboard, following the steps indicated here.

Ensure that this user has the following permissions:

Permission	Access level
APIs	Write
Certificates	Write
Keys	Write
Policies	Write
Analytics	Read
Users	Read

Locating the Access Credentials in Tyk Dashboard

1. Select Users from the User Management section.
2. In the users list, click Edit for the user you have created for the Developer Portal
3. The Secret is the Tyk Dashboard API Access Credentials
4. If required, the Organization ID is underneath Reset key

Configuring the Provider

1. Go to the Provider section in the Admin Portal
2. Click Add new Provider
3. Add your provider details

Field	Description
Name	A local name for this Provider; Tyk Developer Portal can publish catalogs for multiple providers
URL	The host URL for your Tyk Dashboard installation
Secret	The access credential that the Developer Portal must present when consuming the provider’s management API, for example the Tyk Dashboard API Access Credential
Organization ID	(optional) In some configurations, the Dashboard’s Organization Id is required
Policy tags	(optional) This field can be used to synchronise only a subset of the Products and Plans present on the Provider
Baseline URL	(optional) The URL of the API Gateway that API Consumers will use to make requests to the published APIs
Insecure skip verify	Check this box to ignore mTLS between the Provider and Developer Portal, often used in test environments

4. Click Save Changes

If a tag is defined here, it needs to also be defined in the Policy for it to be retrieved during the synchronization. If this field is left empty in the Provider configuration, then all partitioned (access and consumption limit) policies will be imported from the Tyk instance. For API Products and Plans created on the Developer Portal, the policy tag will automatically be created for the corresponding policies created on the Tyk Dashboard.

Testing the Connection

After creating the Provider in your Developer Portal you can test the connection by clicking on Synchronize on the Providers screen in the Admin Portal. This will display a confirmation message if the connection is made successfully, pulling any policies relating to Products and Plans (with the appropriate Policy tags) over to the Portal.

Create an Organizational Structure

After connecting your Developer Portal to a Provider, the next step is to set up the organizational structure for your API consumers. This structure determines how external developers will access and interact with your APIs. In this guide, you’ll learn how to create Organisation (Orgs), Teams, and API Consumer Admin users, which form the foundation of your Developer Portal’s access control system.

When the Portal was bootstrapped a default org is created; this is intended to act as a backstop for any API Consumer users that have not been assigned to another Organisation; we do not recommend publishing API Products and Plans in the default Organisation.

Every Org is automatically provisioned with a default team which, again, is intended as a backstop for any user not assigned to another team. Note that if you remove a User from all teams in an org, they will automatically be assigned to the default Team.

Step 1: Create an Organisation

Organisation represent companies or business units that will consume your APIs. Start by creating your first Organisation:

1. Log in to the Developer Portal using your API Owner credentials
   • this will take you to the Admin Portal view

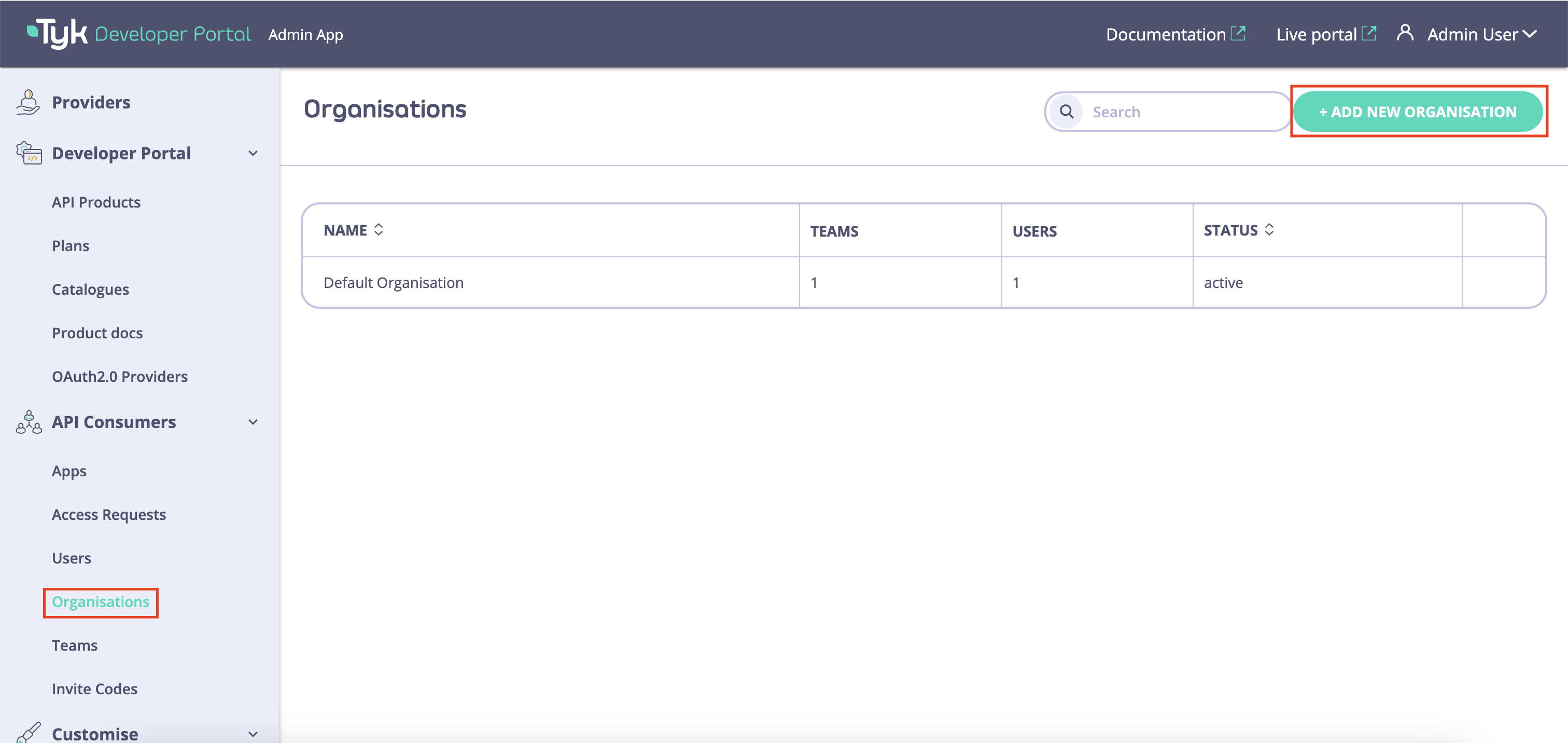

2. Navigate to API Consumers > Organisation
3. Click Add Organisation

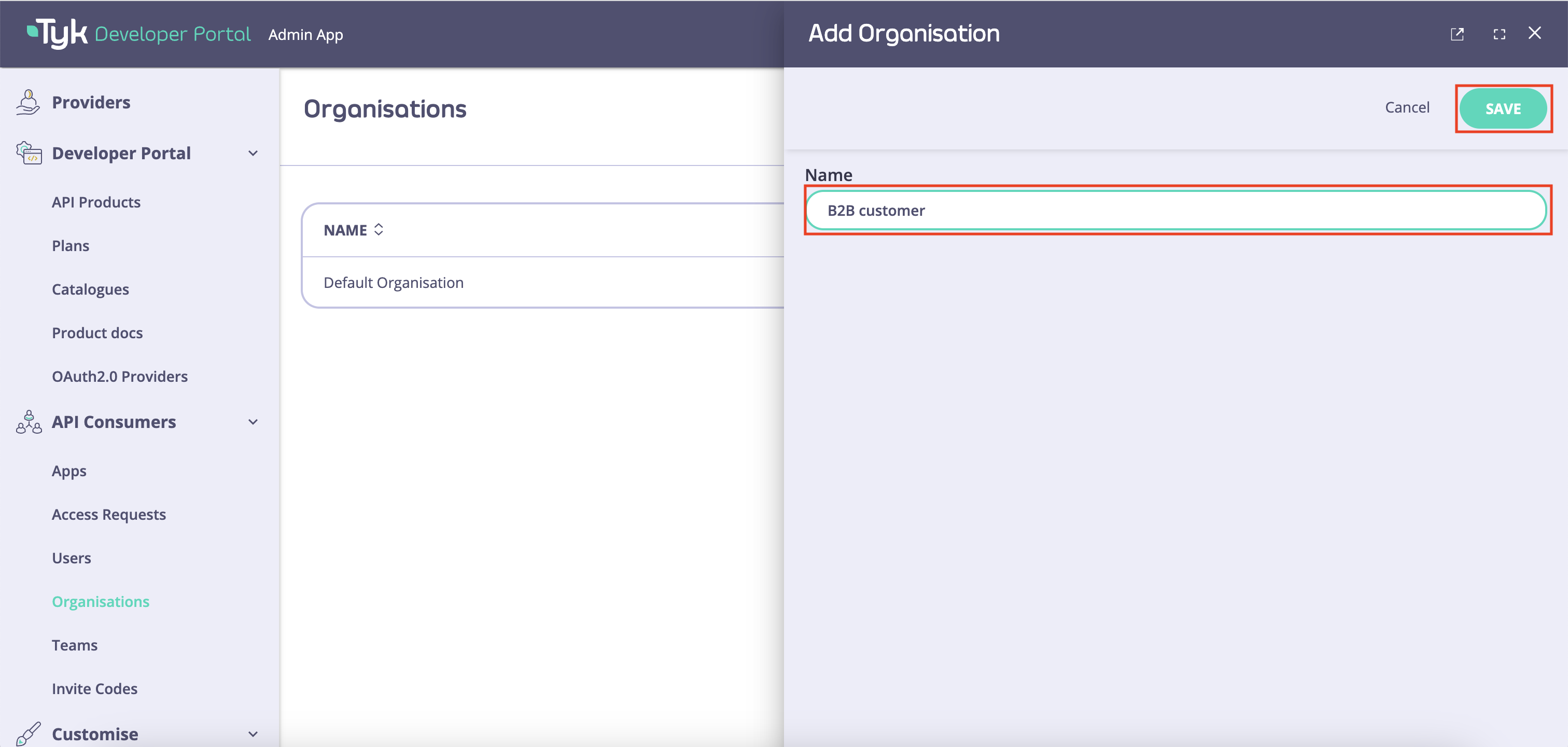

4. Enter a Name for the Organisation
   • this will only be used within the Admin Portal view to identify the org

5. Click Save Changes
   • note that a default team is automatically created within the new org

Step 2: Create a Team Within the Organisation

Teams allow you to group users within an Organisation who need similar API access:

1. Navigate to API Consumers > Teams
2. Click Add new team
3. Enter the following details:
   • Name: A descriptive name (e.g., “Mobile Developers”)
   • Organisation: Select the org that you created in step 1
4. Click Save changes
5. Repeat this process to create all the teams you need within the Organisation.

Step 3: Create an API Consumer Admin User

API Consumer Admin users have special privileges to manage other users within their Organisation:

1. Navigate to API Consumers > Users
2. Click Add new user
3. Enter the user’s details:
   • First Name and Last Name
   • Email: The user’s email address (this will be their login)
   • Select the activate developer checkbox
   • Select the org that you created in step 1
   • Select the Team that you created in step 2
   • For this tutorial provide an initial password for the user
4. Click Save changes

What’s Next?

Congratulations

You have successfully connected your Developer Portal to your Tyk Dashboard provider and created a basic organizational structure for your Developer Portal with an API Consumer Admin user account for your client’s use. Next, you probably want to add some content to the Portal for them to consume.

It’s time to create your first API Catalog.

Best Practices

• Plan your hierarchy: Design your organizational structure before creating Orgs and Teams
• Use descriptive names: Make Organisation and Team names clear and meaningful
• Start simple: Begin with a basic structure and expand as needed
• Document your structure: Keep a record of your Organisation, Teams, and their purposes
• Regular review: Periodically review and clean up unused Organisation and Teams
